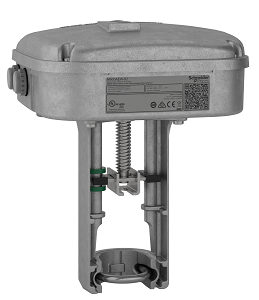

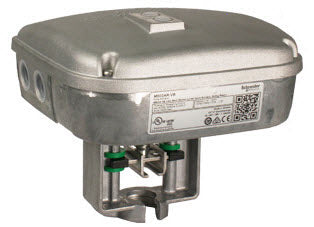

Schneider Electric M900AEW-S2 Spacelogic Globe Valve Actuator 24V AC/DC Replacement MPN

Product Description

The Schneider Electric M900AEW-S2 is a globe valve actuator designed for efficient valve control. This actuator operates on twenty-four volts AC or DC and provides a force of nine hundred newtons. It is suitable for use in various applications, making it a reliable choice for HVAC systems and industrial automation.

• Actuator Type: Electric
• Control Signal: Floating and Proportional
• Protection Rating: IP65 and NEMA 4

Product Highlights

This actuator is ideal for managing globe valves and comes with two SPDT auxiliary switches. It features a spring return mechanism, ensuring that the valve returns to its default position in case of a power loss.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Product Line: Spacelogic

Technical Specifications

• Power Input Voltage: 20 to 29 VDC, 24 VAC, 24 VDC
• Control Signal Range: 0 to 10 VDC, 2 to 10 VDC, 4 to 20 mA with a 500 ohm resistor
• Mechanical Movement: Linear
• Auxiliary Switch: 2 SPDT
• Loss of Power Type: Spring Return
• Operating Temperature: -10 to 50 °C
• Relative Humidity: 15-95 % non-condensing
