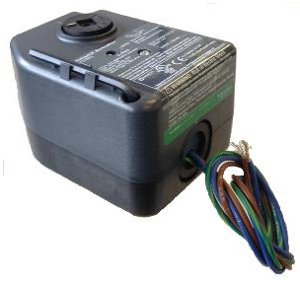

Schneider Electric M220M12 Actuator 110-277 VAC

Product Description

The Schneider Electric M220M12 actuator is designed for efficient operation in ball valve applications. This electric actuator features a two-position control signal, allowing for easy on/off functionality. It operates on a voltage range of one hundred ten to two hundred seventy-seven VAC and is built with a spring return mechanism for reliability.

• Actuator Type: Electric
• Control Signal: 2-Position (On/Off)
• Power Input Voltage: 110 to 277 VAC

Product Highlights

This actuator is part of the SmartX product line, ensuring compatibility with various control systems. With an ambient temperature operation range and NEMA certification, this actuator is suitable for indoor applications in diverse environmental conditions.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Actuator Use: Ball Valves
• Auxiliary Switch: 1 SPST
• Protection Rating: NEMA 2
• Voltage Rating: 110 to 277 VAC
• Operating Temperature: 0-76.1 °C
• Humidity Range: 5-95% non-condensing
• Motor Type: Split capacitor synchronous motor
• Power Consumption: 6 VA AC
