Schneider Electric LXD1M7 Contactor Coil 9 to 38 Amp

Product Description

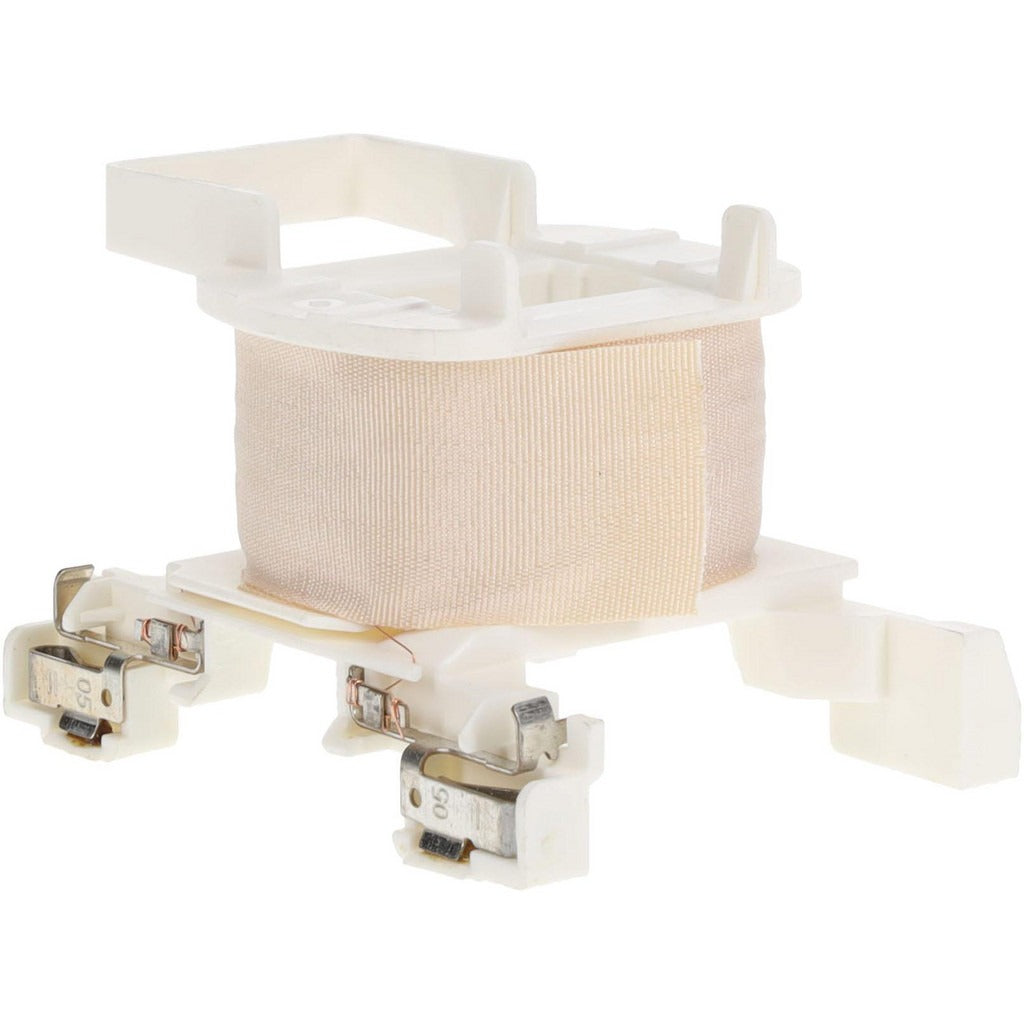

The SCHNEIDER ELECTRIC LXD1M7 is a replacement contactor coil rated for 9 to 38 amps, designed as a direct accessory for TeSys D series contactors. The coil generates the electromagnetic field that closes contactor contacts when energized, making it a critical component in motor control and power switching applications. When an original coil fails due to burnout or mechanical damage, replacing it with the LXD1M7 restores contactor function without requiring full assembly replacement. Electrical contractors and industrial maintenance technicians are the primary installers of this part.

This coil is suited for use in industrial and commercial motor control applications where TeSys D series contactors are deployed. Typical installations include motor starters, HVAC equipment control panels, pump control circuits, and lighting control assemblies. The LXD1M7 fits within the contactor body and is accessed by removing the coil retaining hardware. It is appropriate for both new assembly builds and field repair scenarios.

Key Features

• Rated for 9 to 38 amp contactor applications
• Direct replacement coil for TeSys D series contactors
• Compact form factor: 1.6 inches long, 2.5 inches wide, 1.8 inches tall
• Lightweight at 0.15 pounds for easy handling during panel work
• Sold individually — one coil per package

Compatibility

Designed for use with LC1D09-D38, LC1DT20-DT40, and TeSys D series contactors as specified by the manufacturer.

Installation Notes

Installation should be performed by a licensed electrician familiar with motor control circuitry and applicable NEC requirements. De-energize and lock out the panel or control circuit before accessing the contactor. Remove the existing coil per the contactor manufacturer's service procedure and seat the replacement coil fully before reassembling. Verify correct voltage rating of the replacement coil against the control circuit voltage before energizing.
