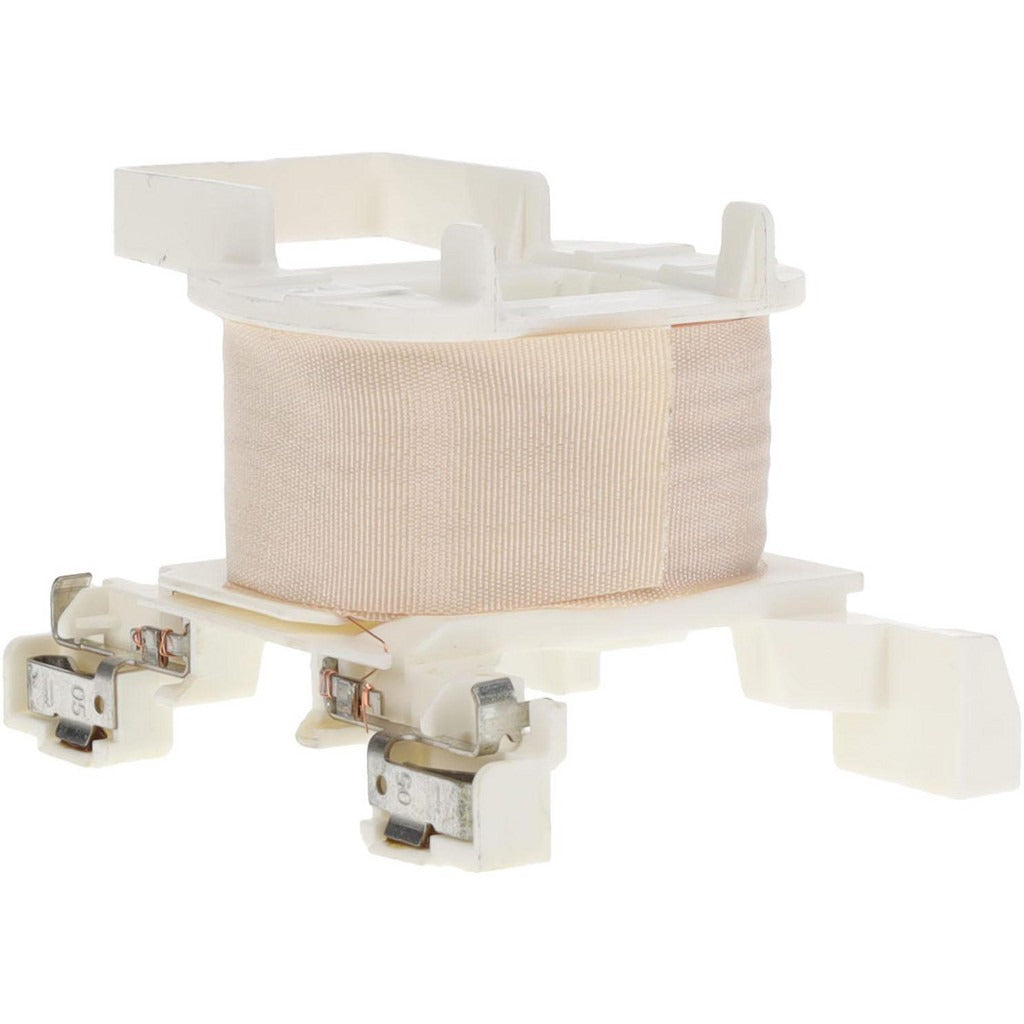

Schneider Electric LXD1LE7 Contactor Coil 9-38A Tesys D

Product Description

The SCHNEIDER ELECTRIC LXD1LE7 is a replacement contactor coil designed for use in industrial and commercial control panel applications. This coil serves as the electromagnetic actuating component within a contactor assembly, generating the magnetic field that pulls in the contactor armature to close the power circuit. Rated for contactors handling 9 to 38 amps, the LXD1LE7 is a direct-fit replacement coil intended for licensed electricians and industrial maintenance technicians servicing motor control and power switching equipment. The compact form factor measures 1.8 inches in length, 2.5 inches in width, and 1.6 inches in height, and weighs approximately 0.17 pounds.

This coil is suited for use in motor starters, reversing contactors, and general-purpose switching applications where a TeSys D series contactor coil has failed or requires scheduled replacement. It fits within the 9 to 38 amp TeSys D contactor range, making it applicable across a variety of light industrial, commercial HVAC, and control system installations where Schneider Electric TeSys D contactors are deployed. The package contains one coil per unit.

Key Features

• Rated for contactor assemblies in the 9 to 38 amp range
• Direct replacement coil for TeSys D series contactors
• Compact dimensions: 1.8 inches x 2.5 inches x 1.6 inches
• Lightweight at 0.17 pounds for easy handling during service
• Sold individually, allowing single-unit replacement without excess inventory

Compatibility

Designed for use with LC1D09 through LC1D38, LC1DT20 through LC1DT40, and TeSys D series contactors as specified by the manufacturer.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize and lock out the control panel before removing or installing the coil to eliminate shock hazard. Verify the replacement coil voltage rating matches the control circuit voltage before reinstalling. Do not force the coil into position; it should seat firmly without excessive pressure.
