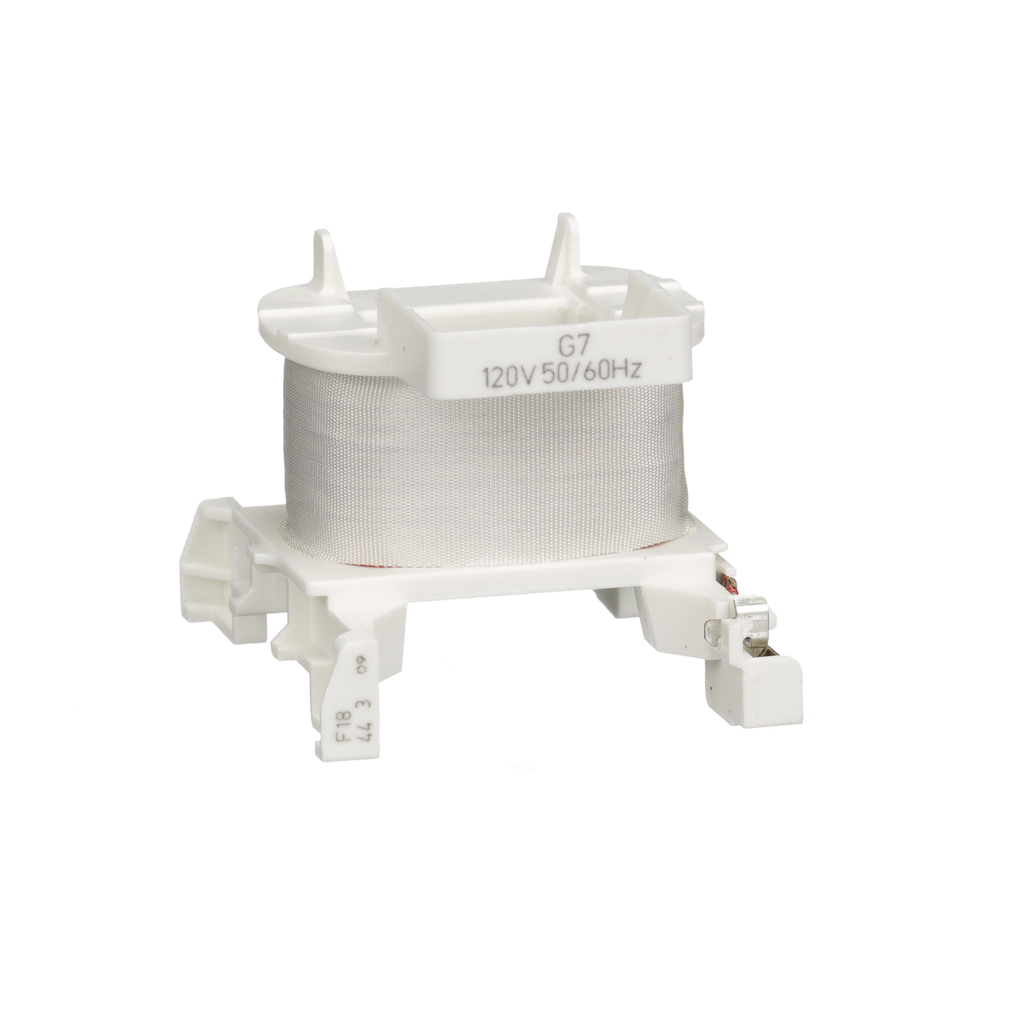

Schneider Electric LXD1G7 Square D 120 VAC at 50/60 Hz 70 VA AC Contactor Coil

Product Description

Schneider Electric LXD1G7 is a replacement coil designed for TeSys D contactors and relays with amperage ratings from nine to thirty-eight. This coil operates at a voltage of one hundred twenty VAC and a frequency of fifty to sixty Hertz. It features an inrush consumption rating of seventy VA and a sealed consumption rating of seven VA. The coil is designed to function effectively within a temperature range of negative five degrees Celsius to sixty degrees Celsius.

• Replacement coil for TeSys D contactors and relays
• Operating voltage: 120 VAC at 50/60 Hz
• Inrush consumption: 70 VA, sealed consumption: 7 VA

Product Highlights

This contactor coil is suitable for use in various applications requiring reliable performance under specified voltage and temperature conditions.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square D

Technical Specifications

• Catalog Number: LXD1G7
• Coil Voltage: 120 VAC at 50/60 Hz
• Weight: 0.15 lb
• Country of Origin: France
• Warranty Length: 18 months
• Operating Cycles: 3600 cyc/h at 60 degrees Celsius
• Application: LC1D09 to LC1D38 contactors and CAD relays
