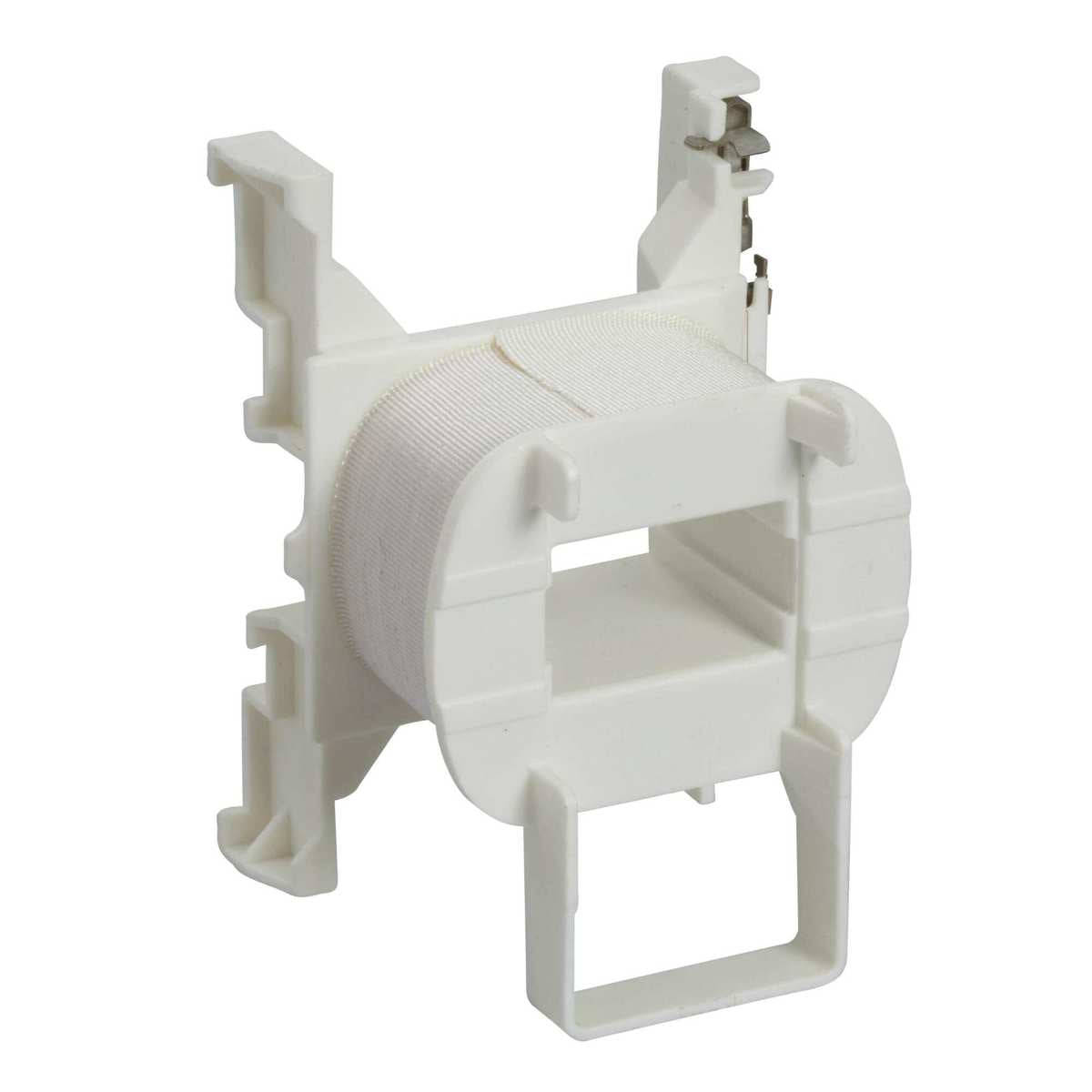

Schneider Electric LXD1B7 TeSys D Replacement Coil 24 VAC 50/60 Hz

Product Description

The Schneider Electric LXD1B7 is designed for replacing the operating coil in TeSys D contactors with ratings from nine amperes to thirty-eight amperes, as well as TeSys D relays. This coil operates at twenty-four volts AC and is suitable for fifty and sixty hertz applications.

• Operating voltage: 24 VAC 50/60 Hz
• Inrush consumption rating: 70 VA
• Sealed consumption rating: 7 VA

Product Highlights

Ideal for various applications including LC1D09 to LC1D38 contactors and CAD relays.

Product Information

Standard Information

• Brand: Schneider Electric
• Catalog Number: LXD1B7

Technical Specifications

• Coil Voltage: 24 V AC 50/60 Hz
• Warranty Description: Contractual Warranty: 18 months
• Country of Origin: France
• Special Features: Without built-in suppressor module
• Item Type: Contactor coil
• Application: LC1D09...D38;CAD;LC1DT20...DT40
• Operating Temperature: 23F to 140F (-5C to 60C)
• Heat Dissipation: 2-3 W 50/60 Hz
• Maximum Operating Rate: 3600 cyc/h at 60 C
