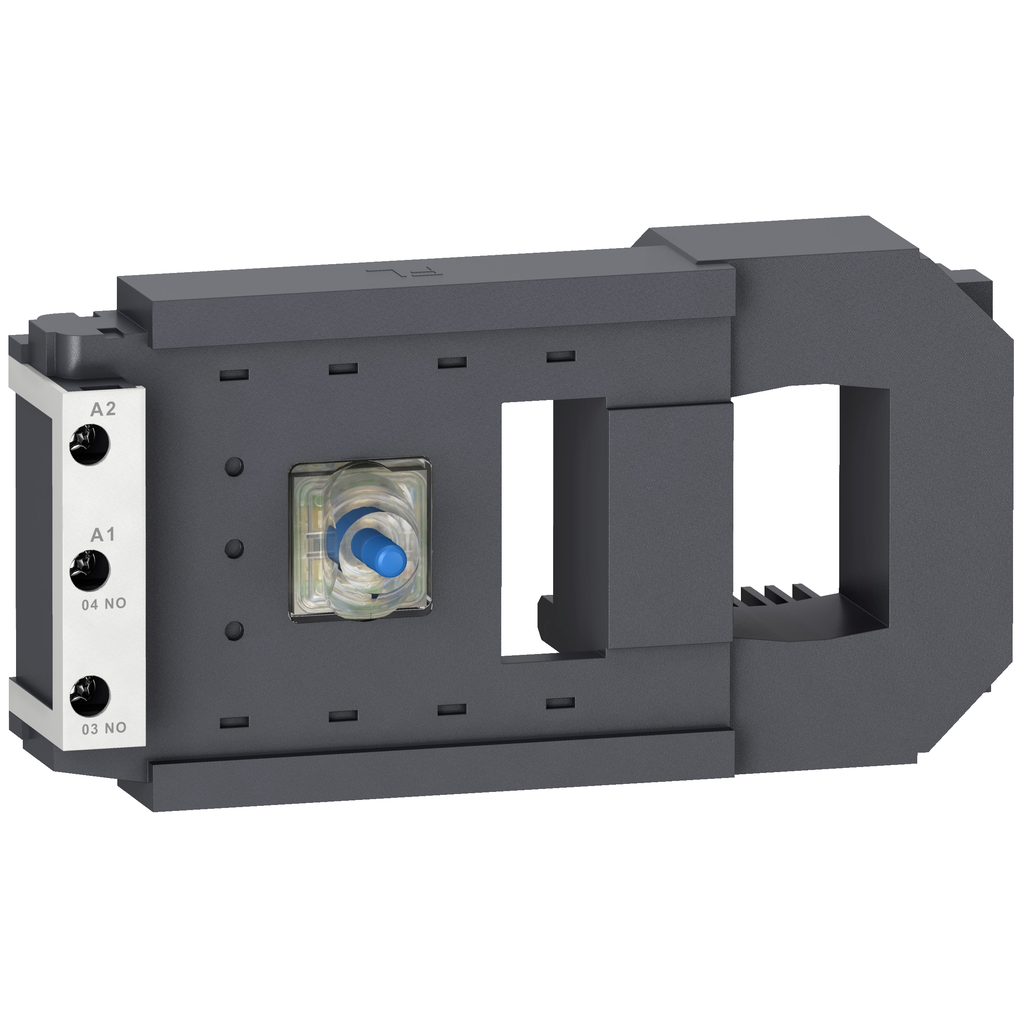

Schneider Electric LX9FG415 TeSys F - specific 415 to 440VAC 40 to 400Hz coil

Product Description

The Schneider Electric LX9FG415 is a TeSys F specific contactor coil designed for AC operation at voltages between four hundred fifteen to four hundred forty volts and frequencies from forty to four hundred Hertz. This coil is suitable for both three-pole and four-pole contactors such as LC1 F185, FG185, and F225. It allows for significant energy efficiency with low sealed consumption and high tolerance to voltage drops.

• Compatible with TeSys F contactors LC1 F185, FG185, F225.
• Operates effectively in the voltage limits of 0.85-1.1 Uc in environments up to fifty-five degrees Celsius.
• Capable of high operating rates, reaching up to 2400 cycles per hour.

Product Highlights

Meets Green Premium standards, ensuring compliance with RoHS and REACh regulations.

Product Information

Standard Information

• Catalog Number: LX9FG415
• Manufacturer: Schneider Electric

Technical Specifications

• Coil Voltage: 415 to 440 VAC at 40 to 400 Hz
• Weight: 1.21 lb (0.55 kg)
• Warranty Length: 18 months
• Operating Cycles: 2400 cycles/hour at 131°F (55°C)
• Country of Origin: Czech Republic
• Operating Temperature: -5 to 55 degrees Celsius
• Applications: TeSys F LC1F contactor; LC1F185; LC1F225
• Special Features: Without built-in suppressor module
