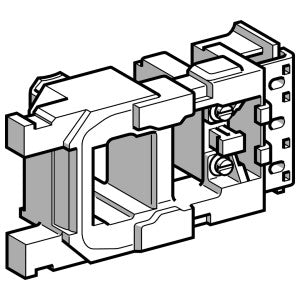

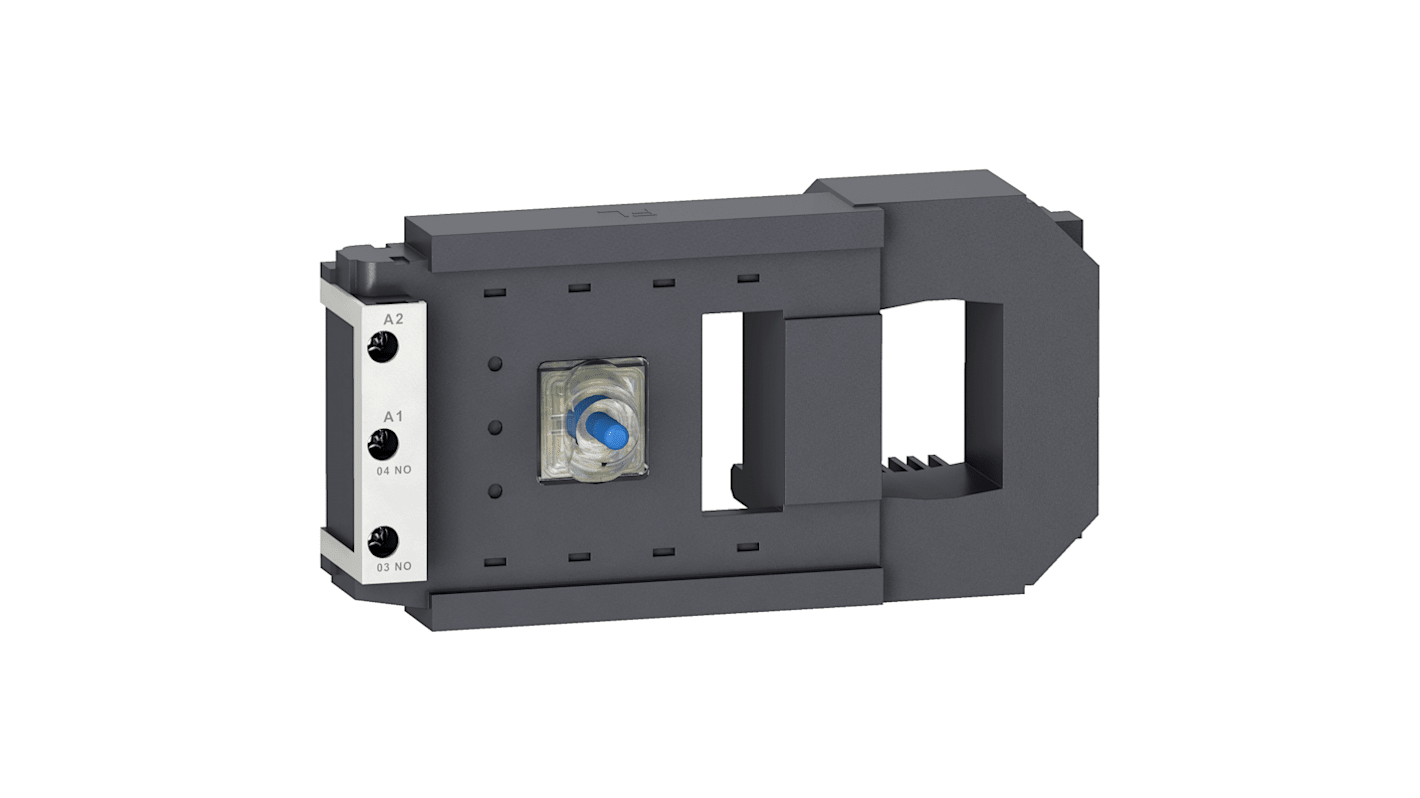

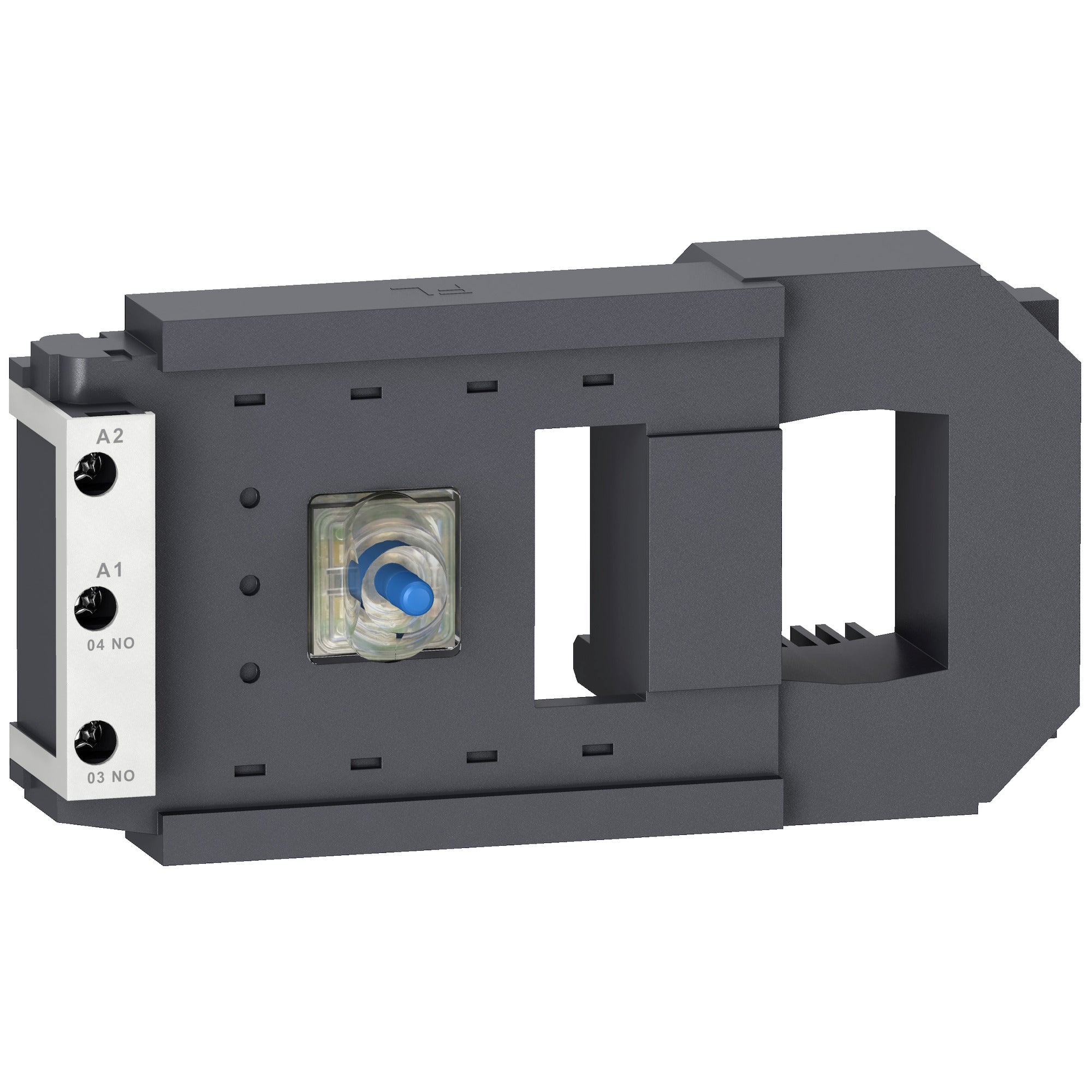

Schneider Electric LX9FG110 TeSys F specific contactor coil 110-115V AC 40-400Hz

Product Description

The SCHNEIDER ELECTRIC LX9FG110 is a TeSys F specific contactor coil operating at 110/115V AC, 40-400Hz. Designed for TeSys F 3-pole and 4-pole contactors like LC1 F185 and F225, it offers low sealed consumption and high tolerance to voltage drops. This coil functions within 0.85-1.1 Uc voltage limits and environments up to 55°C, supporting high operating rates of 2400 cycles per hour. It is Green Premium compliant.

• Features low sealed consumption and high tolerance to voltage drops.
• Supports high operating rates, up to 2400 cycles per hour.
• Compatible with TeSys F 3-pole and 4-pole contactors LC1 F185, FG185, F225.

Product Highlights

Green Premium compliant with high operating rates and voltage drop tolerance.

Product Information

Standard Information

• Brand: SCHNEIDER ELECTRIC
• Manufacturer Part Number: LX9FG110
• Country of Origin: Czech Republic

Technical Specifications

• Product Type: Specific contactor coil
• Brand: Schneider Electric
• Series: TeSys F
• Compatible Contactors: LC1F185, LC1F225
• Coil Voltage: 110/115V AC 40-400Hz
• Operating Rate: Up to 2400 cycles/hour
• Operating Temperature: -5 to 55 °C
• MPN: LX9FG110
• Country of Origin: Czech Republic
• Special Features: Without built-in suppressor module
• Voltage Code: F7/FE7
• Operating Voltage Limits: 0.85-1.1 Uc
