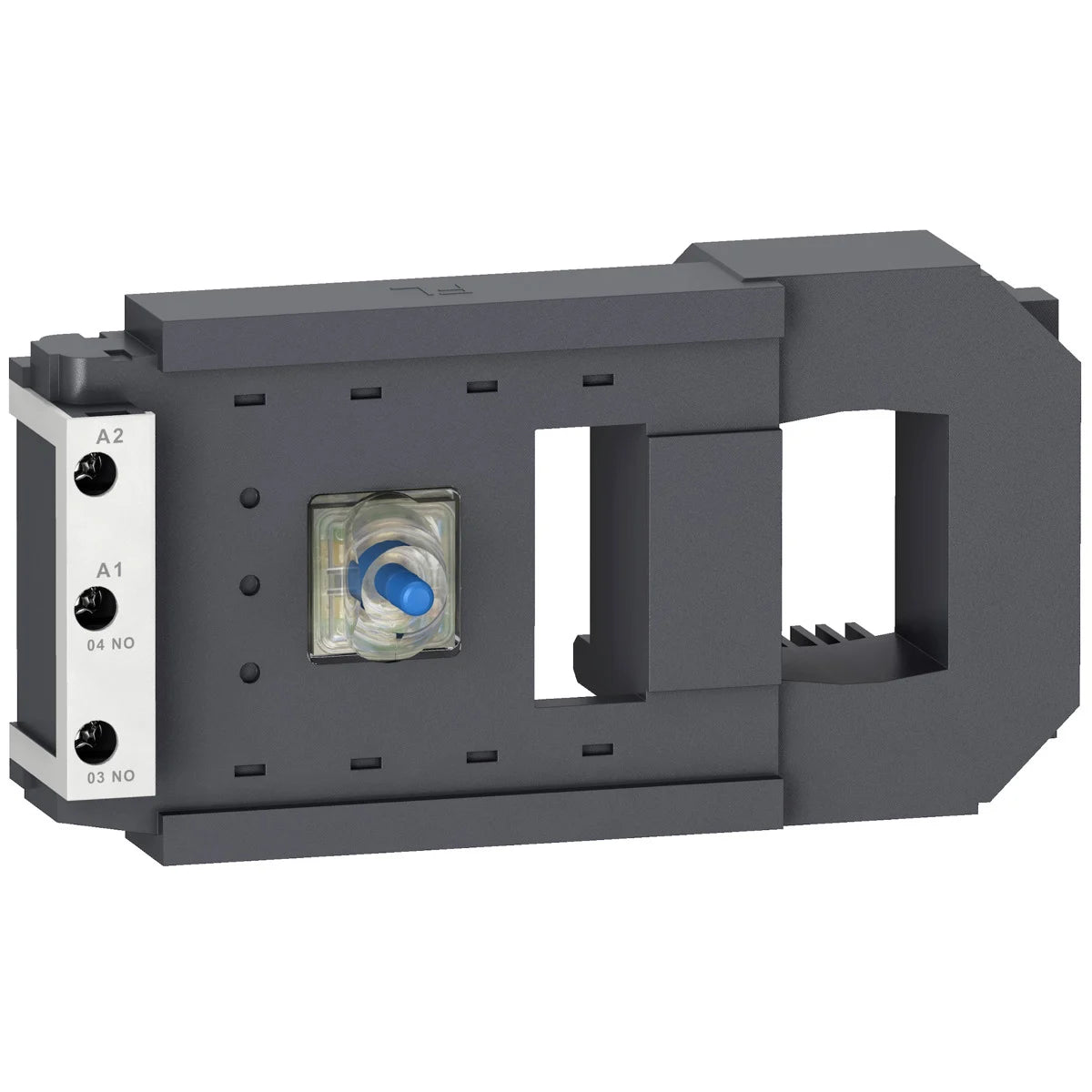

Schneider Electric LX9FF500 TeSys F - specific contactor coil - 500 V AC 40...400 Hz low consumption

Product Description

Schneider Electric LX9FF500 is a TeSys F specific contactor coil designed for efficient operation in voltage ranges of four hundred to five hundred volts AC and frequencies between forty to four hundred hertz. This low consumption coil has high tolerance for voltage drops and operates effectively with TeSys F contactors which can be three-pole or four-pole models like LC1 F115 and LC1 F150. It functions within voltage limits of zero point eighty five to one point one Uc and can withstand temperatures up to fifty-five degrees Celsius. The coil can achieve high operating rates, supporting up to two thousand four hundred cycles per hour, making it suitable for frequent operation in various industrial applications.

• Operating voltage: four hundred to five hundred volts AC
• Temperature tolerance: up to fifty-five degrees Celsius
• High cycling rate: up to two thousand four hundred cycles per hour

Product Highlights

The LX9FF500 is a reliable choice for controlling motors and other loads in industrial environments. Its low sealed consumption makes it energy efficient while ensuring high performance and durability.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: LX9FF500
• Coil Voltage: 500 V AC 40...400 Hz
• Application: Designed for TeSys F LC1F contactors
• Warranty Description: Contractual Warranty: eighteen months
• Country of Origin: Czech Republic
• RoHS URL: RoHS compliance
• Item Type: Specific contactor coil
