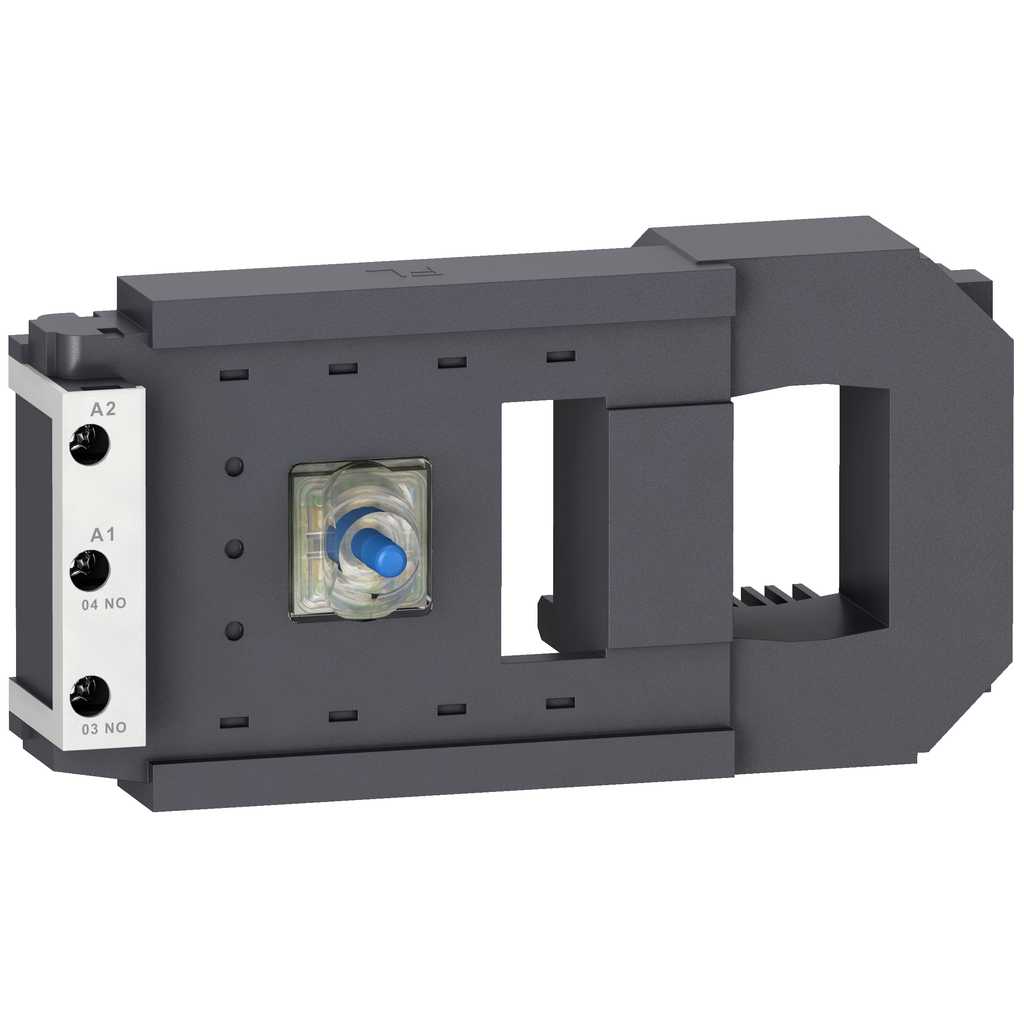

Schneider Electric LX9FF110 TeSys F - specific contactor coil 110...115 V AC 40...400 Hz

Product Description

Schneider Electric LX9FF110 is a TeSys F AC coil designed for specific contactor applications. It operates within the voltage range of 110/115 volts at 40-400 hertz. This coil is suitable for both low consumption and high tolerance to voltage drops, specifically intended for use with TeSys F three-pole and four-pole contactors such as LC1 F115 and LC1 F150. It efficiently handles voltage limits from 0.85 to 1.1 Uc and functions well in environments up to fifty-five degrees Celsius.

• Works with TeSys F three-pole and four-pole contactors.
• Operates at high rates of up to 2400 cycles per hour.
• Green Premium compliant, adheres to RoHS and REACh standards.

Product Highlights

This specific coil enhances the operational efficiency of contactors, maintaining robust performance in settings that require reliable electrical control.

Product Information

Standard Information

• Catalog Number: LX9FF110
• Manufacturer: Schneider Electric

Technical Specifications

• Coil Voltage: 110/115 V AC at 40-400 Hz
• Weight: 0.95 lb
• Operating Temperature: -5 to 55 degrees Celsius
• Warranty Length: 18 months
• Country of Origin: Czech Republic
• Operating Cycles: 2400 cycles/hour at 131 degrees Fahrenheit (55 degrees Celsius)
• GTIN: 03389110083934
• Special Features: Without built-in suppressor module
