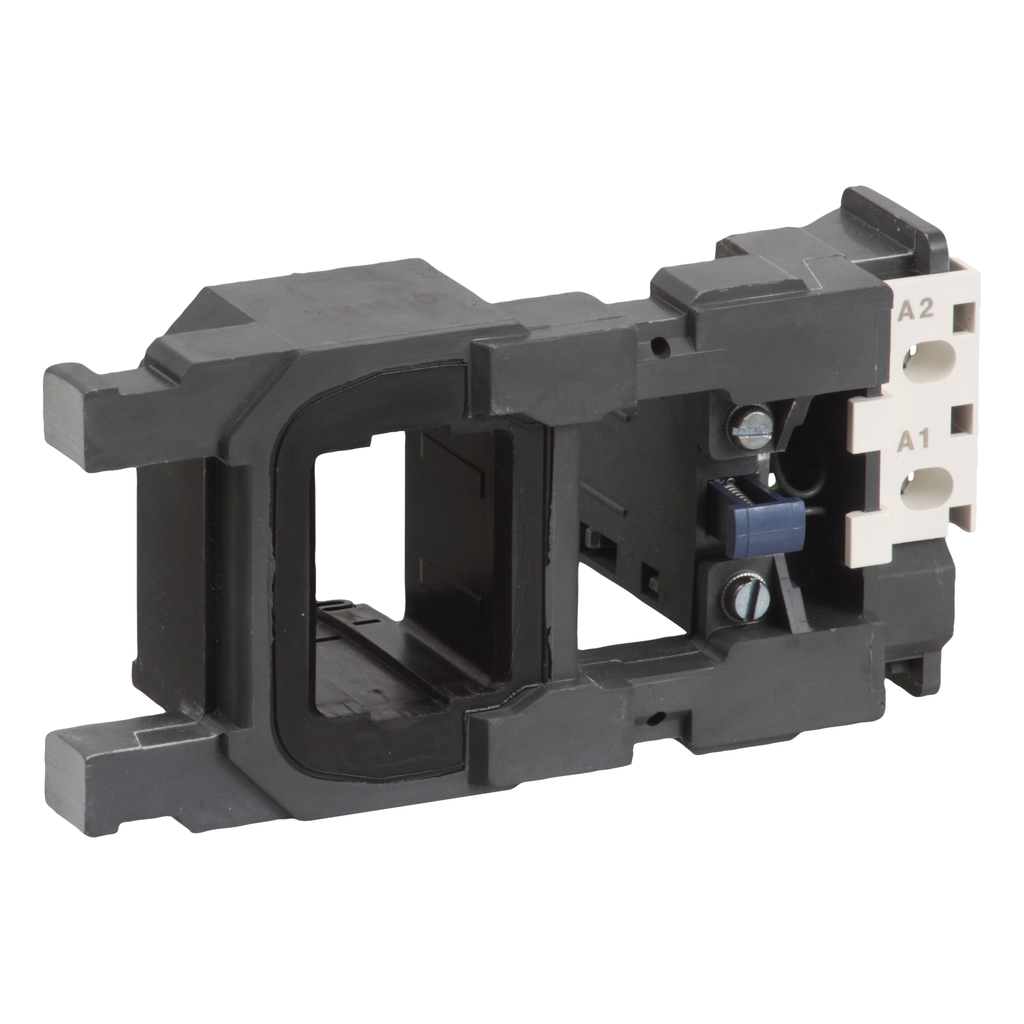

Schneider Electric LX4FG024 TeSys F - contactor coil - 24 V DC

Product Description

Schneider Electric LX4FG024 is a TeSys F contactor coil. This coil operates at twenty-four volts DC and is designed for use with TeSys F three-pole and four-pole contactors. The coil has low sealed consumption and functions effectively within voltage limits of zero point eighty-five to one point one Uc. It can work in environmental conditions up to fifty-five degrees Celsius.

• High operating rates up to two thousand four hundred cycles per hour
• Compatible with LC1 F185 and F225 contactors
• Green Premium compliant (RoHS and REACh)

Product Highlights

This device provides efficient operation for industrial applications and is ideal for control systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: LX4FG024
• Coil Voltage: 24 V DC
• Operating Cycles: 2400 cyc/h at 131 F (55 C)
• Country of Origin: Czech Republic
• Warranty Length: 18 months
• Applications: LC1F185; LC1F225
• Special Features: Without built-in suppressor module
• Net Weight: 0.55 kg
