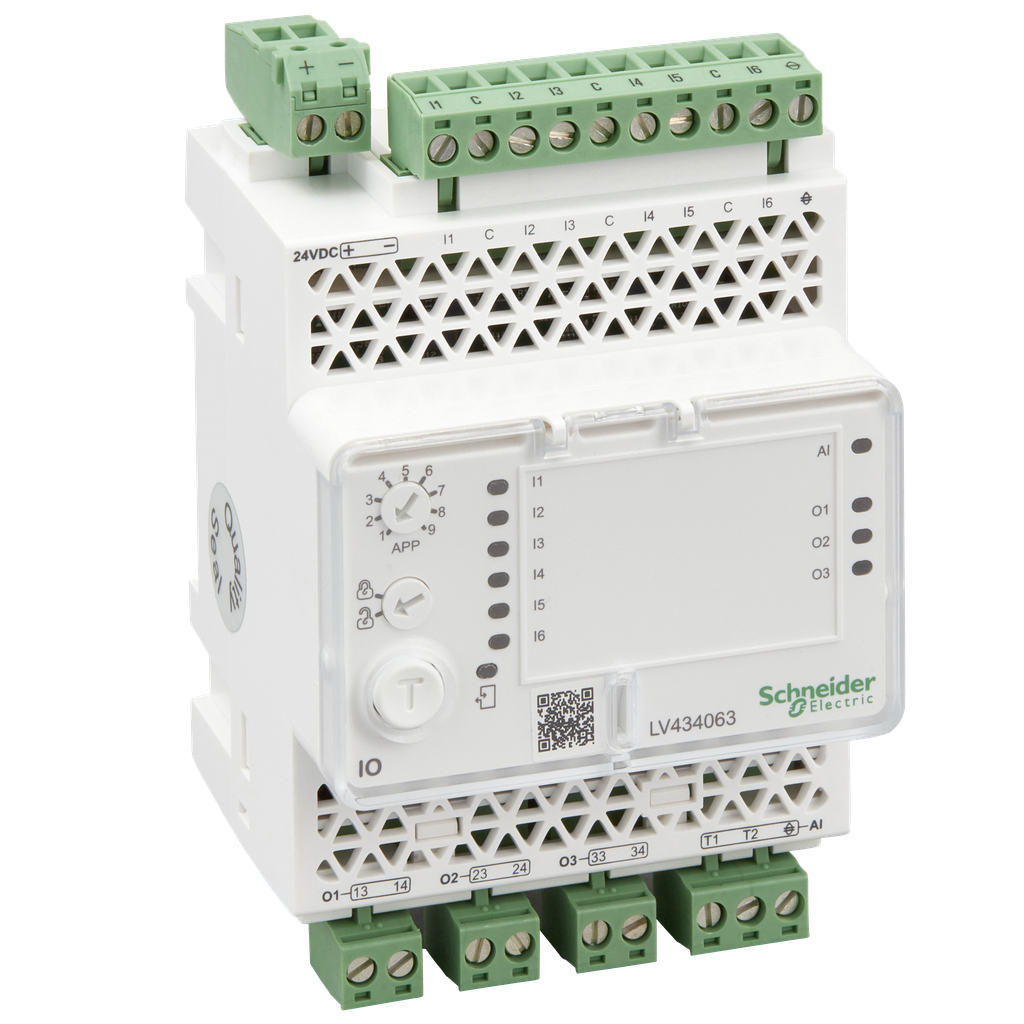

Schneider Electric LV434063 I/O Application Module EnerlinX

Product Description

The Schneider Electric LV434063 I/O Application Module is an input/output module designed to enhance communication in the EnerlinX system. It works with Masterpact, Compact, and PowerPact devices. This module is essential for applications such as protection, circuit breaker control, motor control, energy management, and monitoring.

• Provides six digital inputs, three digital outputs, and one analog input
• Mounted on DIN rails, with dimensions of 72mm x 116mm x 71mm
• Compatible with EcoStruxure Power architecture and Ethernet-ready smart panels

Product Highlights

This I/O module allows for easy configuration and firmware updates via EcoStruxure Power Commission software.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: LV434063
• Item Type: I/O module
• Mounting Type: Clips
• Width: 71.7 mm
• Depth: 70.6 mm
• Height: 116 mm
• Current Consumption: 165 mA
• Net Weight: 229.5 g
• Storage Temperature: -40 to 85 degrees C
• Country of Origin: Indonesia
• Warranty Length: 18 months
• Certification Standards: CE, cULus, FCC, GOST
