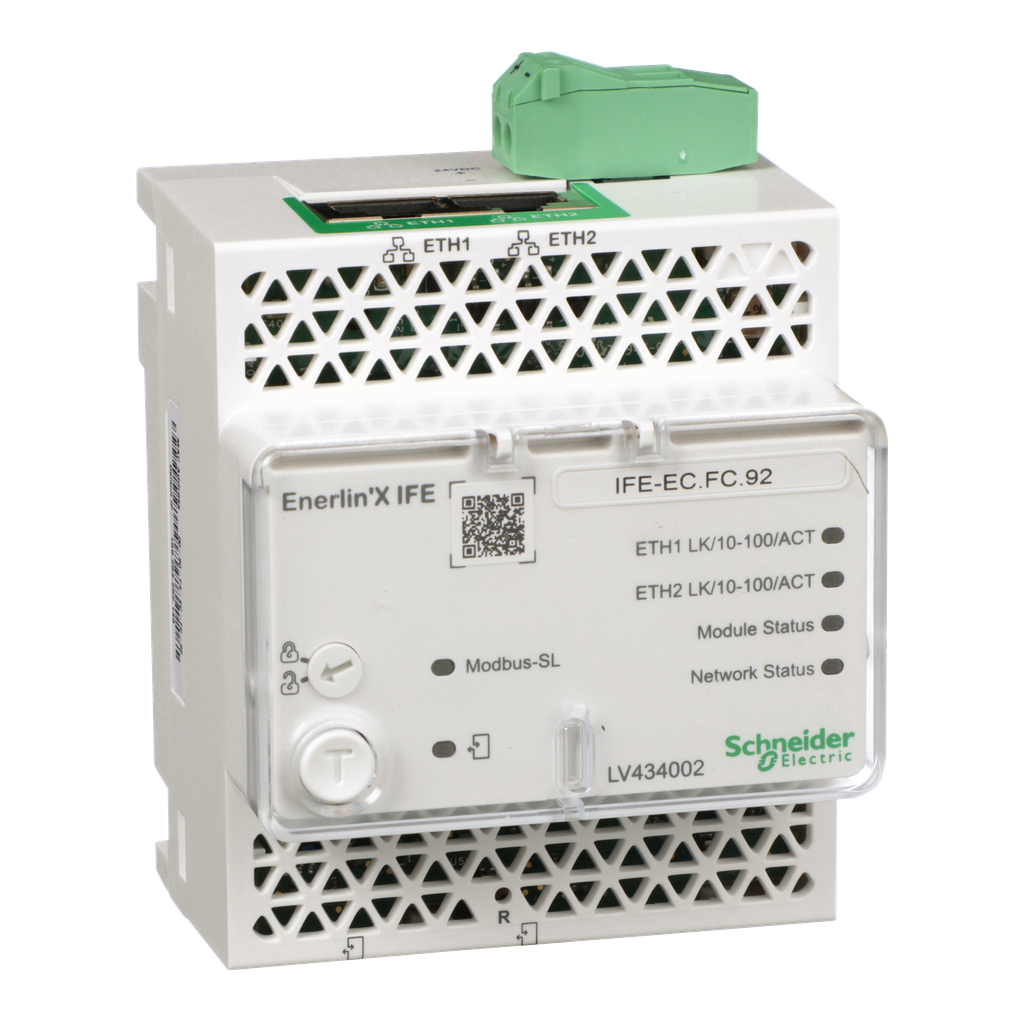

Schneider Electric LV434002 IFE Ethernet switchboard server, Enerlin'X

Product Description

The Schneider Electric IFE Ethernet switchboard server, MPN LV434002, provides Ethernet connectivity to Masterpact, Compact, or PowerPact circuit breakers. This unit is part of the EnerlinX communication system. It supports Modbus gateway functions and offers a data flow of 10/100 Mbps. The server facilitates daisy chain connections. It features a 24VDC screw clamp terminal block on the top and two RJ45 sockets for network connectivity. Additionally, it has two RJ45 sockets for ULP connections at the bottom. The device is designed for DIN rail mounting, with dimensions of seventy-two millimeters by one hundred five millimeters by seventy-one millimeters. It has an IP4x protection rating on the front and IP2x for the connection points. This product integrates completely into the EcoStruxure Power architecture, allowing for enhanced functionality with Ethernet-ready smart panels. Firmware updates are manageable via EcoStruxure Power Commission software.

• Compatible with multiple circuit breaker types
• Modbus gateway supported
• DIN rail installation

Product Highlights

This switchboard server is essential for reliable communication in electrical systems.

Product Information

Standard Information

• Catalog Number: LV434002
• Manufacturer: Schneider Electric

Technical Specifications

• Weight: 6.44 oz
• Depth: 71 mm
• Width: 72 mm
• Height: 105 mm
• Current: 120 mA
• Mounting Type: By Clips
• Country of Origin: Indonesia
• Warranty Length: 18 months
