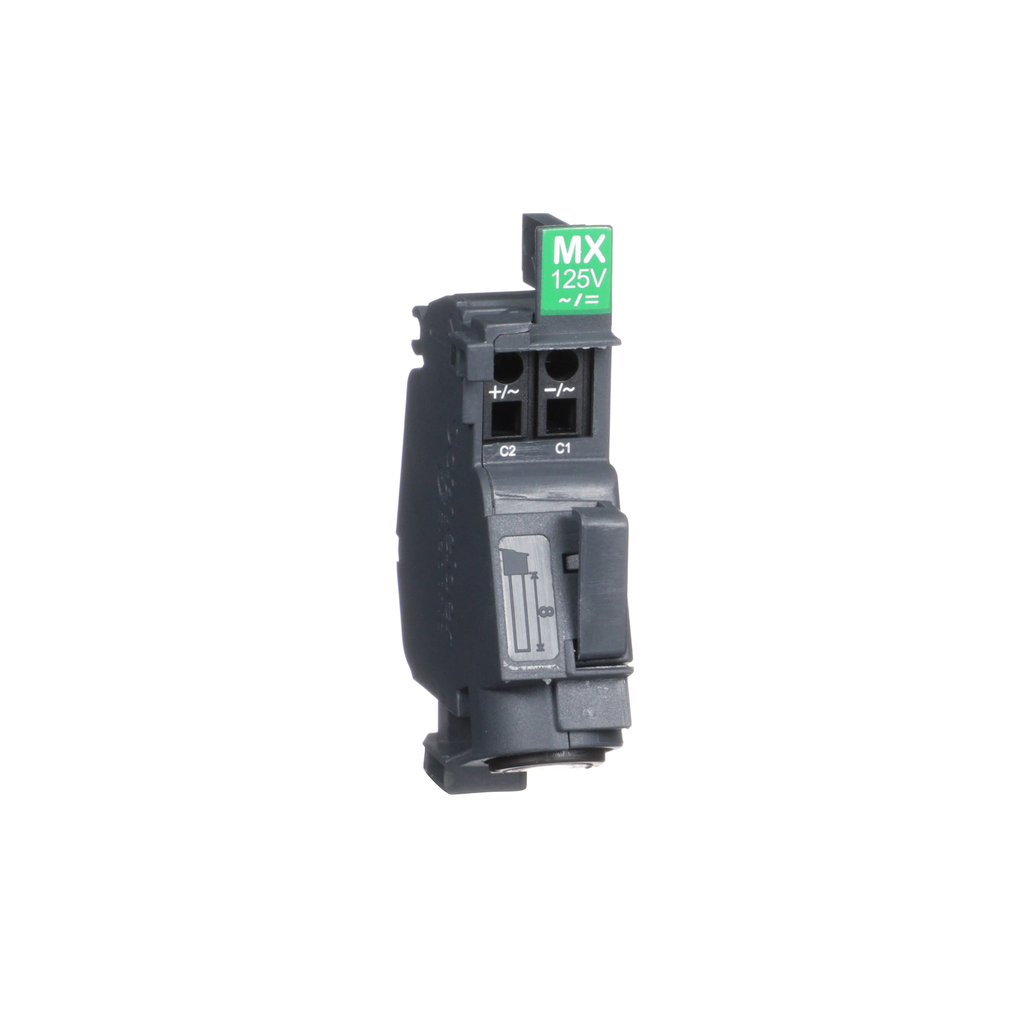

Schneider Electric LV426843 Standard Shunt Tri 125VAC 110/130VAC 50/60Hz

Product Description

Schneider Electric offers the LV426843 standard shunt trip designed for use on Compact NSXm and PowerPact B devices. This device provides an emergency off or failsafe remote opening solution. It features a one-click spring type for easy installation, which is visible from the front face of the unit. The LV426843 supports a rated voltage of 110/130 VAC at 50/60Hz or 125 VDC, and it activates the circuit breaker when the control voltage exceeds seventy percent of its rated value. This product adheres to the IEC 60947-2 standard.

• Compatible with Compact NSXm and PowerPact B devices
• Simple installation visible from the front
• Rated for 110/130 VAC 50/60Hz or 125 VDC

Product Highlights

This shunt trip is ideal for remote opening applications and emergency shutdown systems.

Product Information

Standard Information

• Catalog Number: LV426843
• Brand: Schneider Electric

Technical Specifications

• GTIN: 03606485413068
• Voltage: 125 VAC/VDC
• Applications: Shunt Trip (MX)
• Mounting Type: Clip-On
• Country of Origin: France
• RoHS URL: RoHS Compliance
