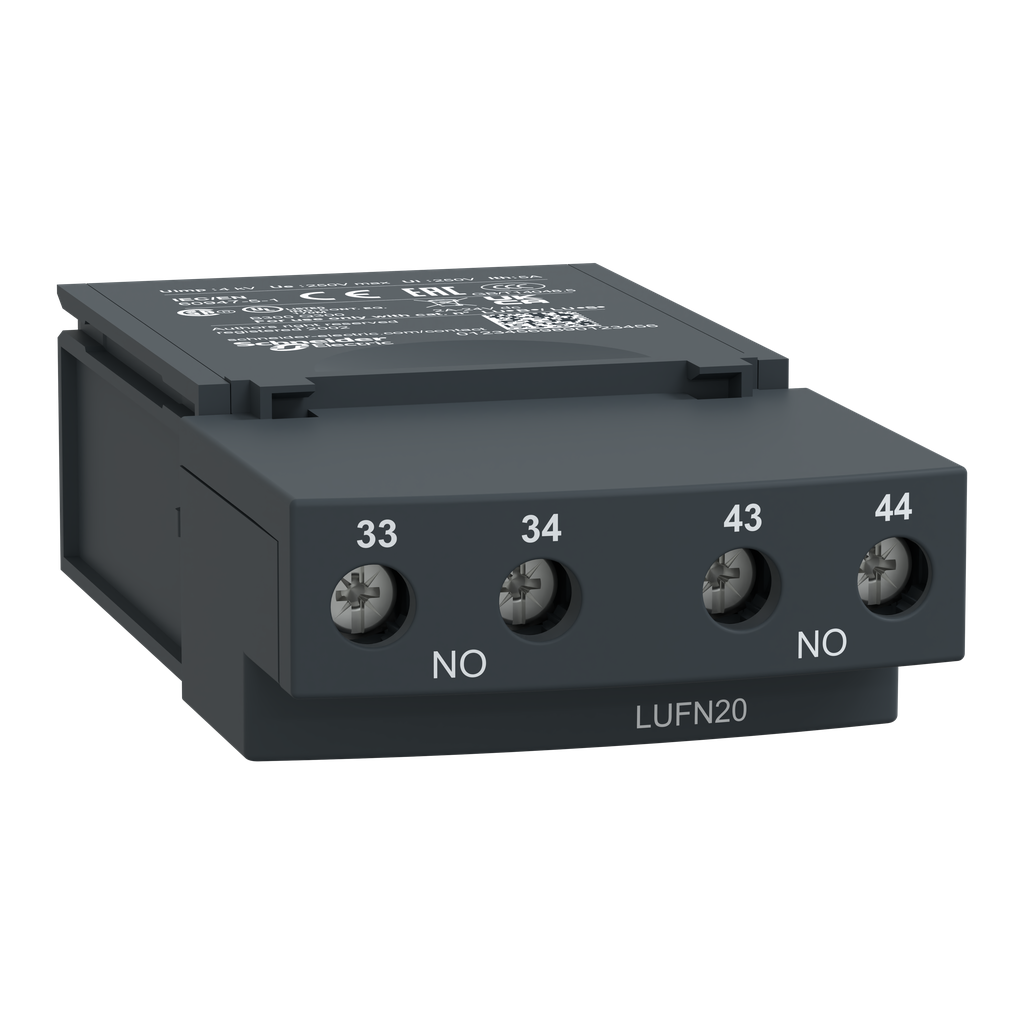

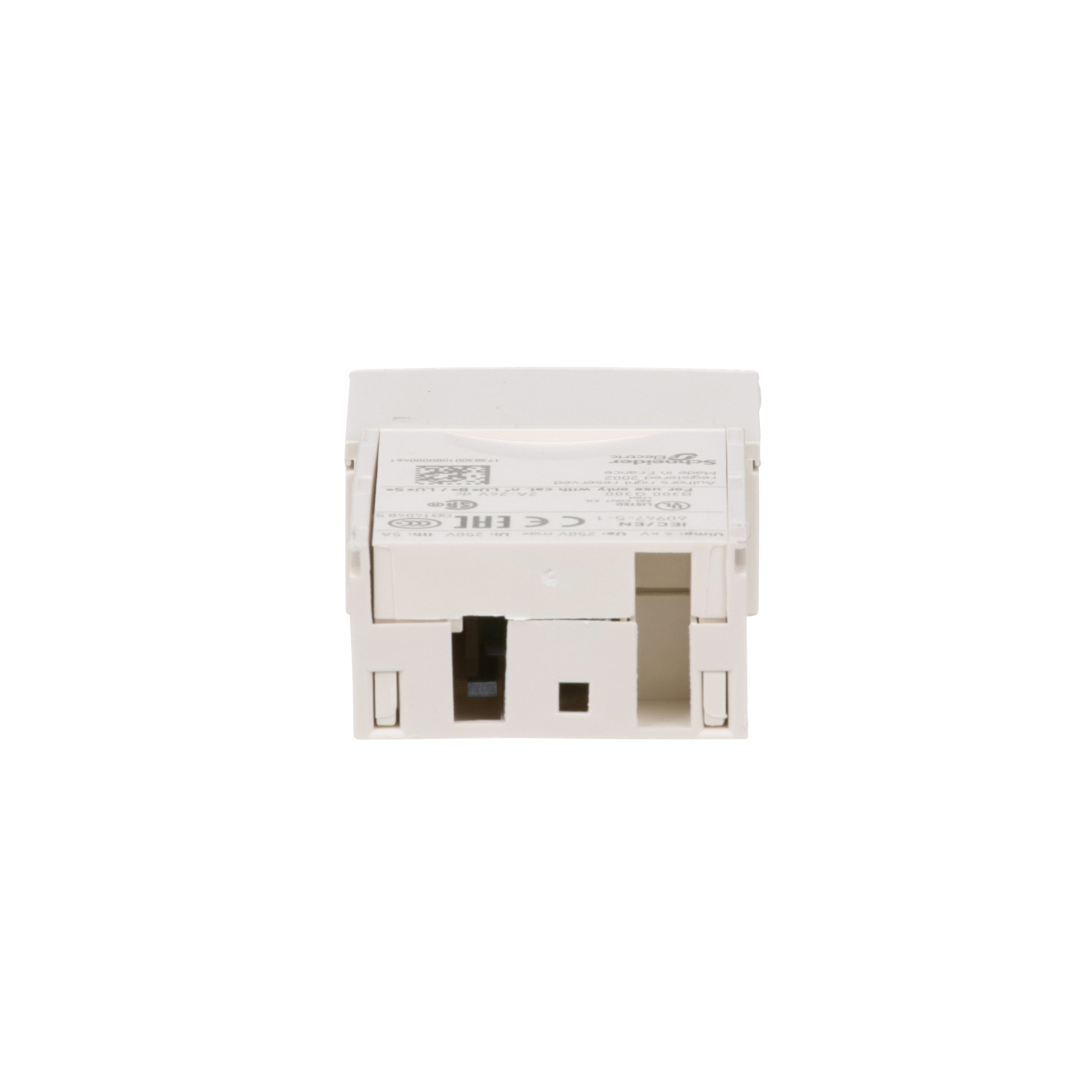

Schneider Electric LUFN20 Square D 250 VAC/VDC 5 Amp 2NO Auxiliary Contact Block

Product Description

Schneider Electric LUFN20 is an auxiliary contact module designed for use with standard power bases like LUB12, LUB32, LUB38 or advanced bases like LUB120, LUB320, and LUB380. This module signals the ON/OFF status of motors, regardless of direction. It includes two normally open (2NO) auxiliary contacts, rated for up to 250 volts AC or DC and a maximum current of five amps. The unit is powered by the control device and fits into a designated cavity for auxiliary modules.

• Auxiliary contact module with 2NO configuration
• Rated for 250 volts AC/DC, five amps
• Compatible with various power bases

Product Highlights

This component is certified for use with a LUB power base and complies with multiple standards, including IEC, UL, and CSA. It also meets Green Premium standards (RoHS/REACH).

Product Information

Standard Information

• Catalog Number: LUFN20
• Manufacturer: Schneider Electric

Technical Specifications

• Weight: 0.11 lb
• Voltage: 250 Volt
• Amperage: 5 Amp
• Contact Configuration: 2 NO
• Operating Temperature: -25C to 70C
• Warranty Length: 18 months
• Country of Origin: France
• Applications: TeSys U simple motor starter
