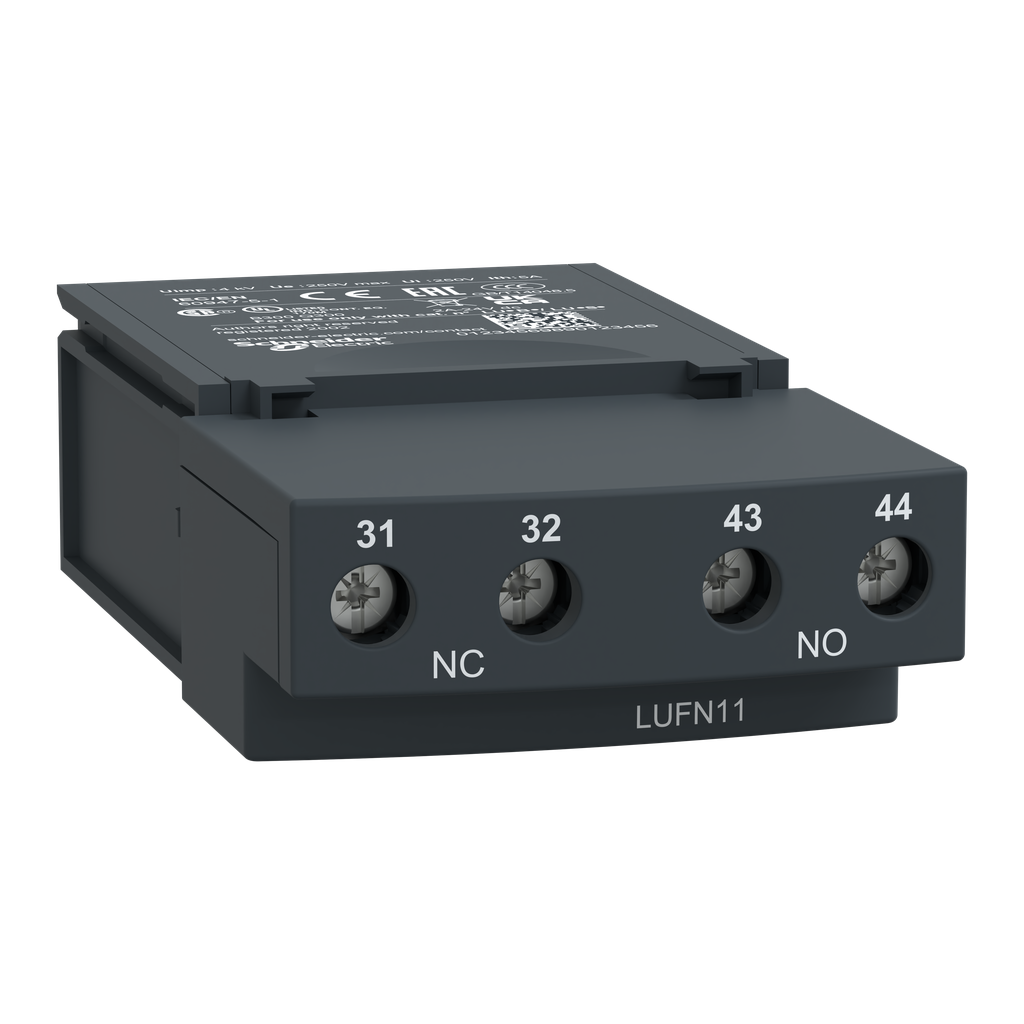

Schneider Electric LUFN11 Square D 250 VAC/VDC 5 Amp Auxiliary Contact Block

Product Description

The Schneider Electric LUFN11 is an auxiliary contact block designed for use with power bases LUB12, LUB32, LUB38, and advanced options like LUB120, LUB320, LUB380. This contact block confirms the ON/OFF status of motors regardless of their rotation direction. It features one Normally Open (NO) contact and one Normally Closed (NC) contact, both rated for twenty-four to two hundred fifty volts AC/DC with a maximum current of five amps.

• Compatible with various power bases
• Provides reliable auxiliary signaling
• Certified for use with multiple standards (IEC, UL, CSA)

Product Highlights

The LUFN11 is suitable for applications in motor control setups, ensuring safety and efficiency in operations.

Product Information

Standard Information

• Catalog Number: LUFN11
• Manufacturer: Schneider Electric

Technical Specifications

• Voltage Rating: 250 Volts
• Amperage Rating: 5 Amps
• Contact Configuration: 1 NO + 1 NC
• Operating Temperature: -25C to 70C
• Weight: 0.11 lb
• Country of Origin: France
• Warranty Length: 18 months
• Applications: Tesys U Simple Motor Starter
