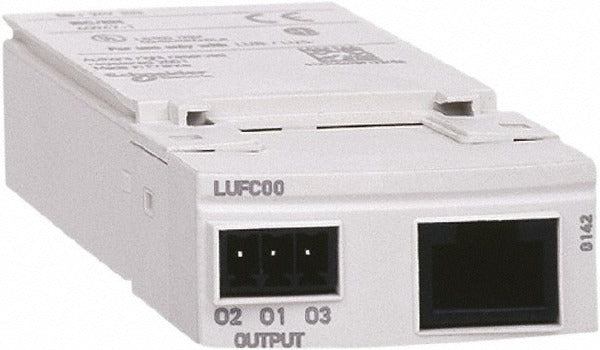

Schneider Electric LUFC00 Starter Parallel Wiring Module

Product Description

The SCHNEIDER ELECTRIC LUFC00 is a parallel wiring module designed as an accessory for TeSys U motor starters. It enables parallel wiring configurations between compatible control units, simplifying multi-starter panel layouts and reducing field wiring time. The LUFC00 mounts directly to the starter assembly and supports clean bus-bar style interconnection without the need for individual control wiring between units. Licensed electricians and industrial control panel builders install this module during panel assembly or field retrofits on motor control centers and distribution boards.

This module is intended for use in industrial and commercial electrical panels where multiple TeSys U starters are installed in adjacent positions. It is well suited for motor control center (MCC) builds, machine control panels, and process automation enclosures where space-efficient wiring and consistent control architecture are priorities. Installation typically occurs during initial panel assembly, though it can be added during scheduled maintenance outages on existing TeSys U starter banks.

Key Features

• Enables parallel wiring between adjacent TeSys U control units, reducing field wiring complexity
• Direct-mount accessory — attaches to compatible starter units without additional hardware
• Compact form factor: 3.7 inches long, 2 inches wide, 1.3 inches tall
• Lightweight at 0.1 pounds, adding minimal mass to the starter assembly
• Compatible with the full TeSys U control unit lineup including LUCA, LUCB, LUCC, LUCD, LUCL, and LUCM series

Compatibility

Designed for use with SCHNEIDER ELECTRIC TeSys U motor starter control units: LUCA, LUCB, LUCC, LUCD, LUCL, and LUCM series.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements and the panel manufacturer's documentation. De-energize and lock out the panel before installing or removing any starter accessory. Verify that the control unit type is confirmed as compatible before seating the module. Do not force the module into position — proper alignment with the starter contact interface is required before applying seating pressure.
