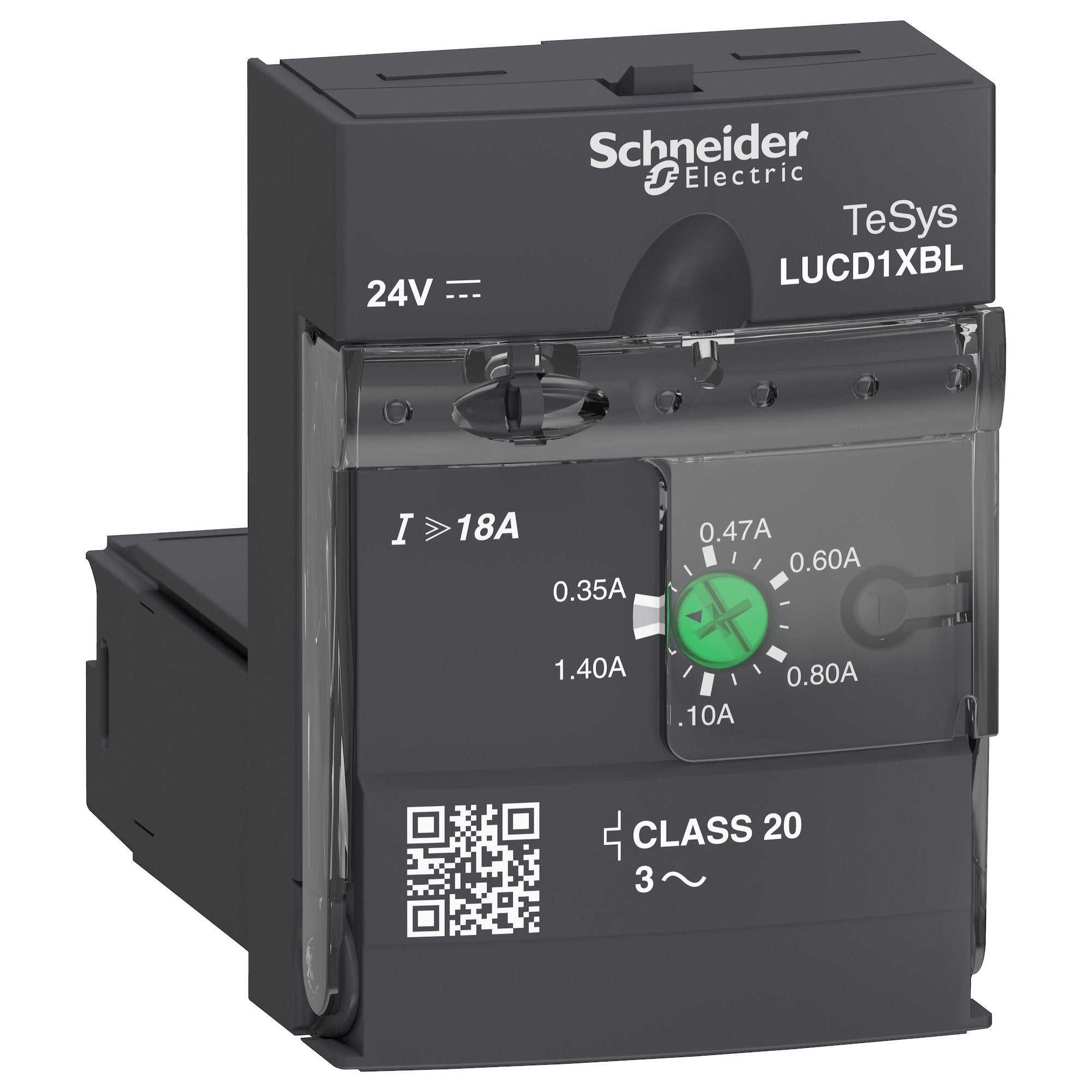

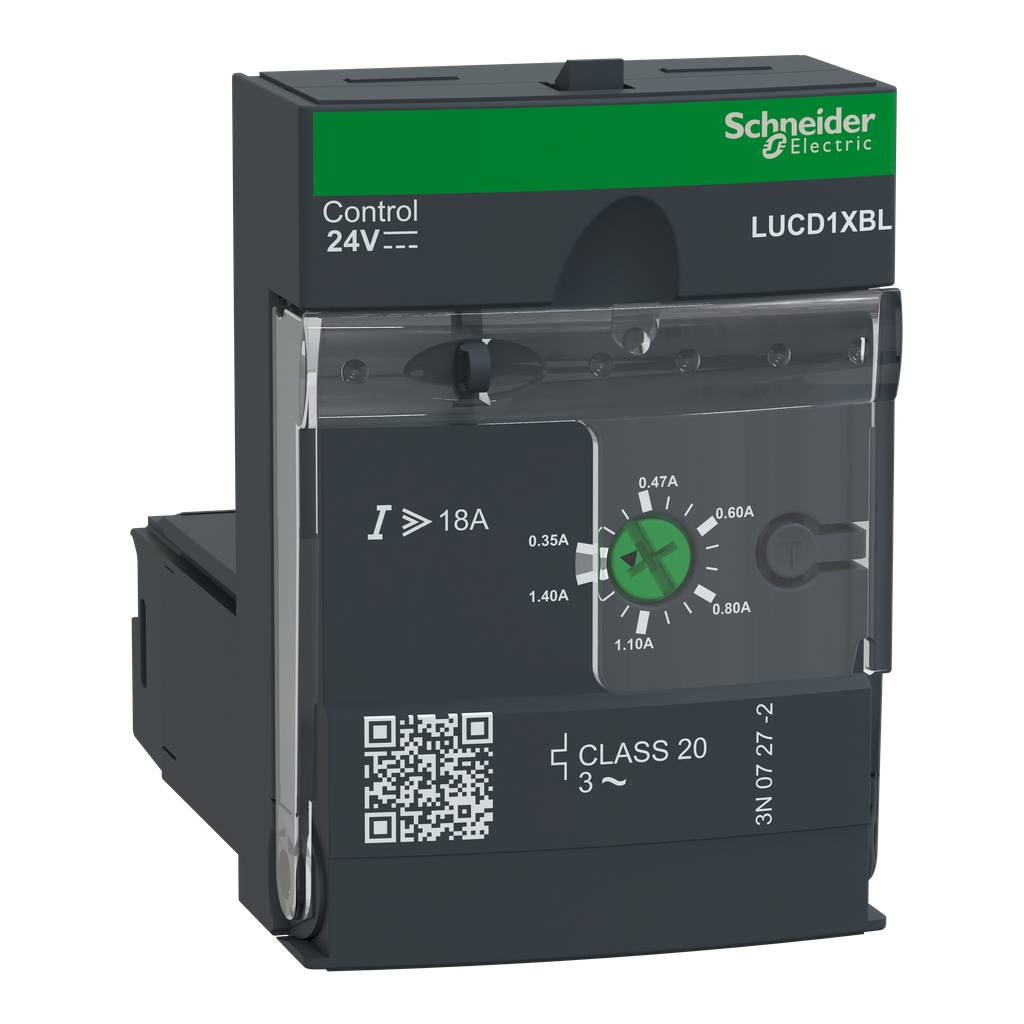

Schneider Electric LUCD1XBL Square D 0.3 to 1.4 Amp 24 VDC 3-Phase Class 20 Advanced Control Unit

Product Description

The Schneider Electric LUCD1XBL is an advanced control unit designed for TeSys U starter controllers, specifically compatible with power bases LUB120, LUB320, and LUB380. This control unit is suitable for 3-phase motor applications with a power rating of up to 0.25 Kilowatt at 400 Volts. It features adjustable overload settings between 0.35 to 1.4 Amperes, ensuring full protection against common electrical faults including overloads, short circuits, and phase loss.

• Adjustable overload protection from 0.35 to 1.4 Amperes
• Compatible with multiple TeSys U power bases
• Robust diagnostics with thermal overload alarms

Product Highlights

The LUCD1XBL provides essential diagnostic features, including a test push button for simulating overload conditions. It operates on a 24 Volt DC supply, making it ideal for precise motor control applications.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: LUCD1XBL

Technical Specifications

• Type: Advanced control unit
• Voltage Rating: 690 Volt
• Operating Temperature: -25 to 70 degrees Celsius
• Storage Temperature: -40 to 85 degrees Celsius
• Width: 1.77 inches
• Height: 2.60 inches
• Depth: 2.36 inches
• Certifications: IEC, UL, CSA, CCC
