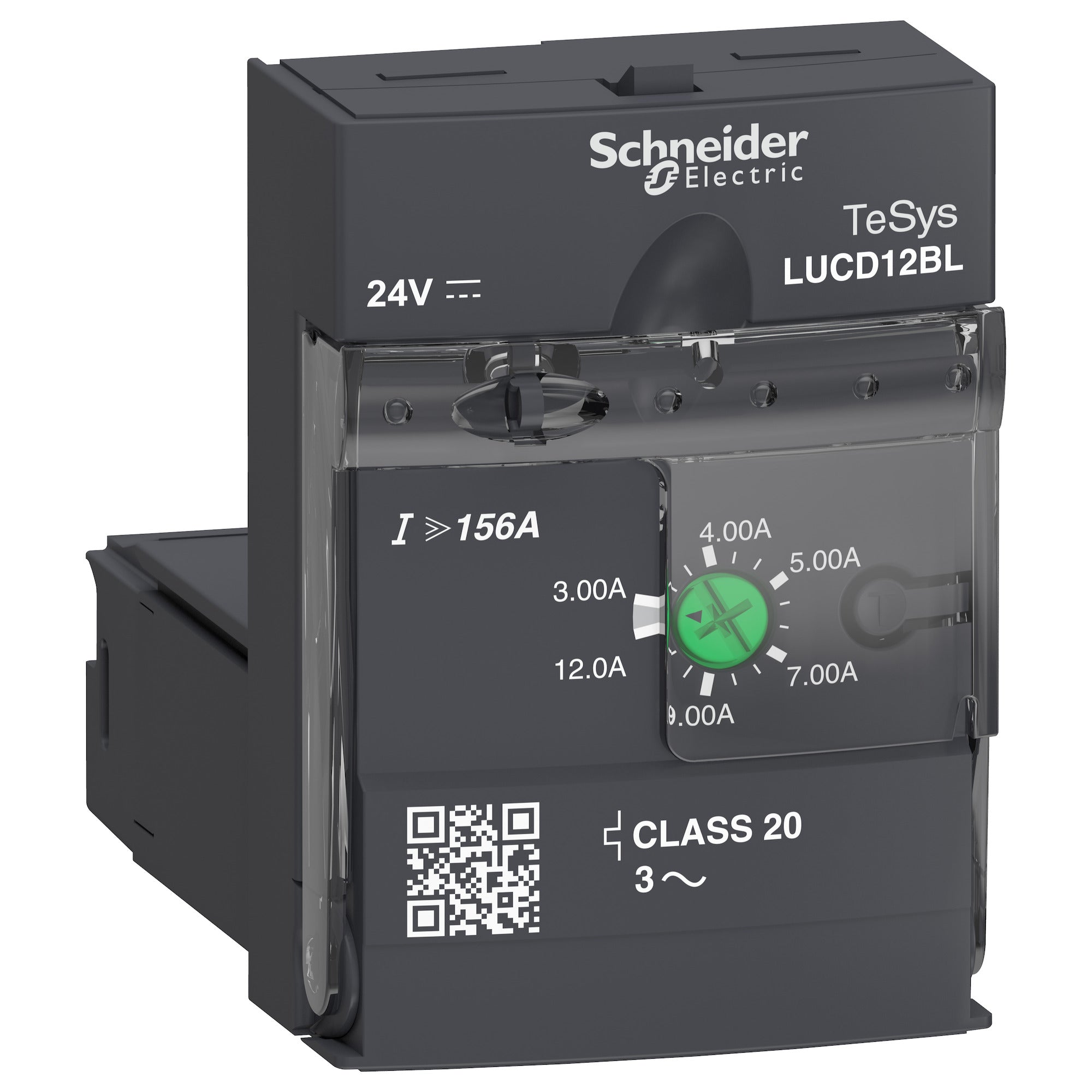

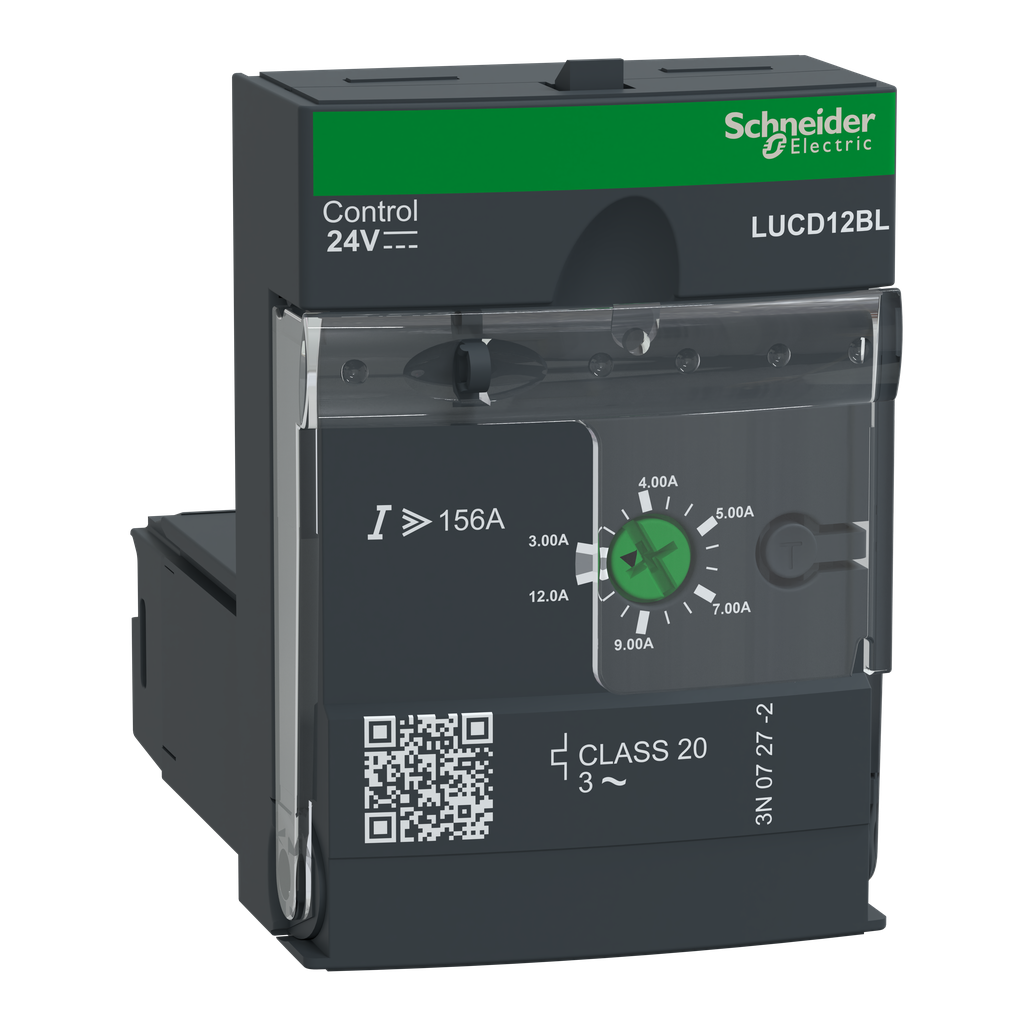

Schneider Electric LUCD12BL Square D 24 VDC 3 to 12 Amp 3-Phase Class 20 Thermal Motor Starter

Product Description

The Schneider Electric LUCD12BL is a 24 VDC control unit designed for use in advanced power bases LUB120, LUB320, and LUB380. This unit creates a TeSys U starter controller suited for three-phase motors up to five point five kilowatt at four hundred volts. It offers comprehensive protection for motors with a rated current of three to twelve amps. The overload tripping class is 20, with short circuit protection set at thirteen times the maximum rated current.

• Operates with 24V DC for motor control.
• Compatible with TeSys U power bases.
• Certified to various international standards including IEC, UL, CSA, and EAC.

Product Highlights

This unit is essential for motor control and protection in industrial applications.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: LUCD12BL

Technical Specifications

• Load Type: 3-phase motor
• Power Supply: 24 VDC
• Operating Temperature: -25 to 70 degrees C
• Storage Temperature: -40 to 85 degrees C
• Depth: 60 mm
• Width: 45 mm
• Height: 66 mm
• Country of Origin: France
• Warranty Length: 18 months
