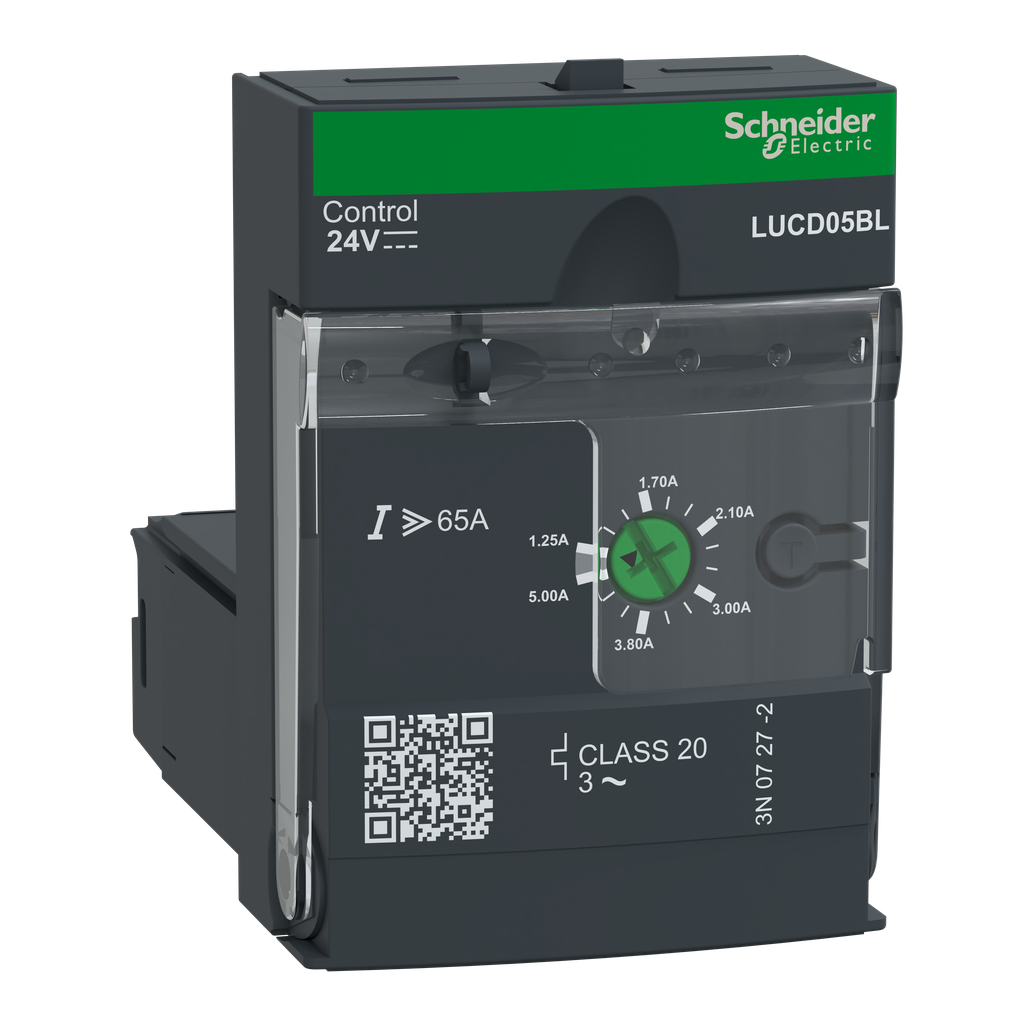

Schneider Electric LUCD05BL Square D 24 VDC 1.25 to 5 Amp 3-Phase Class 20 Thermal Motor Starter

Product Description

Schneider Electric's LUCD05BL is a control and diagnostic unit designed for use with advanced power bases like LUB120, LUB320, and LUB380. This unit is suitable for 3-phase motor applications up to 1.5 kW at 400 V. It provides comprehensive protection for motors with a rated current of one point twenty-five to five amps, which can be adjusted. It includes overload tripping class twenty, short circuit protection at thirteen times the maximum rated current, and overcurrent protection at fourteen point two times the rated current. Additional features include phase loss and insulation fault protection, a thermal overload alarm for local or remote use, and a test push button for overload simulation. The LUCD05BL operates on a twenty-four volt DC supply to control the starter.

• Designed for 3-phase motors with full protection features
• Overload and short circuit protection
• Compatible with various LUB power bases

Product Highlights

Ideal for ensuring motor protection in various industrial settings while complying with multiple international certifications.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Schneider Electric

Technical Specifications

• Catalog Number: LUCD05BL
• Voltage: 690 Volt
• Rated Current: 1.25 to 5 Amps
• Type: Advanced control unit
• Width: 1.77 inches
• Height: 2.60 inches
• Depth: 2.36 inches
• Power Supply: 24 VDC
