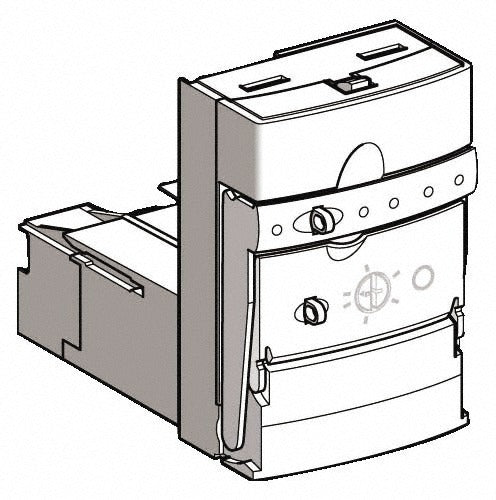

Schneider Electric LUCC32FU Starter Control Unit

Product Description

The SCHNEIDER ELECTRIC LUCC32FU is a starter control unit designed for use in motor starter assemblies found in industrial and commercial electrical systems. It serves as the command and control interface within compatible starter module configurations, allowing the starter assembly to receive and process control signals for motor starting, stopping, and protection functions. Licensed electricians and industrial maintenance technicians are the primary installers of this component. The LUCC32FU measures 3.3 inches in length, 2.1 inches in width, and 4.1 inches in height, and ships as a single-unit package weighing 0.32 pounds.

The LUCC32FU is suited for residential, commercial, and light industrial motor control applications where a replacement or supplemental control unit is needed within a modular starter system. It is specifically listed for use with the LUFC00, LUFDA01, LUFDA10, LUFDH11, LUFN, LUFV2, and LUFW10 starter module accessories, making it appropriate for technicians servicing or building out compatible Schneider Electric starter assemblies. This part is typically installed within motor control centers, panel boards, or dedicated starter enclosures.

Key Features

• Functions as the control unit within compatible modular motor starter assemblies
• Compact form factor: 3.3 inches long, 2.1 inches wide, 4.1 inches tall
• Lightweight at 0.32 pounds for easy handling during installation
• Sold as a single-unit package with a minimum order quantity of one
• Listed for use with seven specific Schneider Electric starter accessory modules

Compatibility

Designed for use with the following Schneider Electric starter accessory modules: LUFC00, LUFDA01, LUFDA10, LUFDH11, LUFN, LUFV2, and LUFW10.

Installation Notes

Installation should be performed by a licensed electrician familiar with motor control equipment and applicable NEC requirements. Disconnect and lock out all power to the motor starter assembly before removing or installing the control unit. Verify compatibility with the existing starter module before installation. Do not force the control unit into the module housing; confirm proper alignment before seating.
