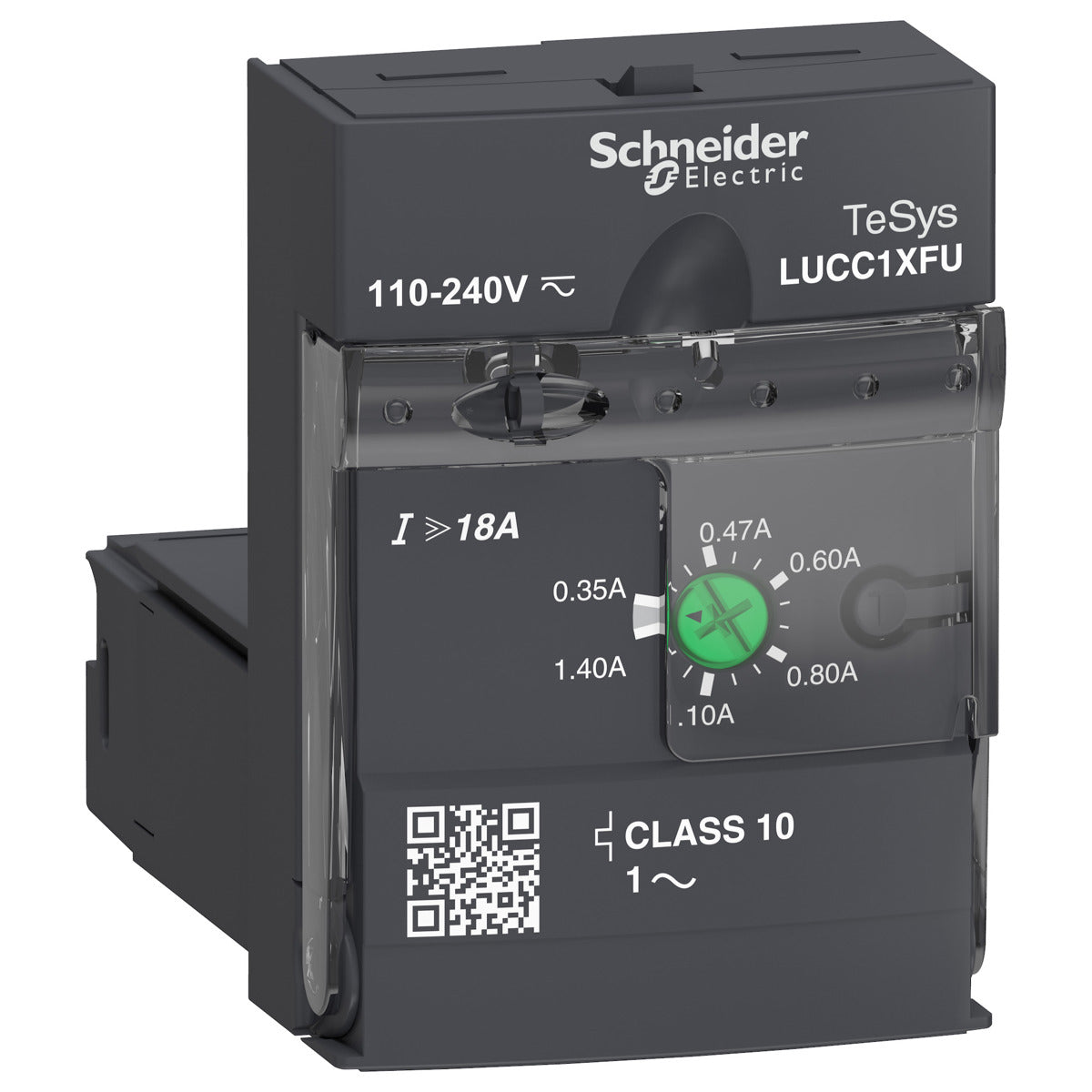

Schneider Electric LUCC1XFU Advanced Control Unit 0.35A to 1.4A Replacement MPN

Product Description

Schneider Electric LUCC1XFU is an advanced control and diagnostic unit for motor applications. This unit fits in advanced power bases LUB120, LUB320, or LUB380, creating a TeSys U starter controller for single-phase motors. It supports motors with a rated current from zero point thirty-five to one point four amperes. The overload tripping class is ten, which allows for efficient motor protection, including short circuit and phase loss detection.

• Compatible with 110-240V AC and 110-220V DC.
• Thermal overload alarm integrates with an additional function module.
• Certifications include IEC, UL, CSA, CCC, EAC, and Marine.

Product Highlights

This control unit offers full motor protection and various diagnostic functions. It is ideal for use in industrial automation settings. The unit is Green Premium compliant, supporting RoHS and REACh standards.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: LUCC1XFU
• Rated Current Adjustable: 0.35A - 1.4A
• Overload Tripping Class: 10
• Short Circuit Max: 13 x Ir
• Overcurrent Rating: 14.2 x Ir
• Country of Origin: France
• Warranty: 18 months
• GTIN: 03389110364743
