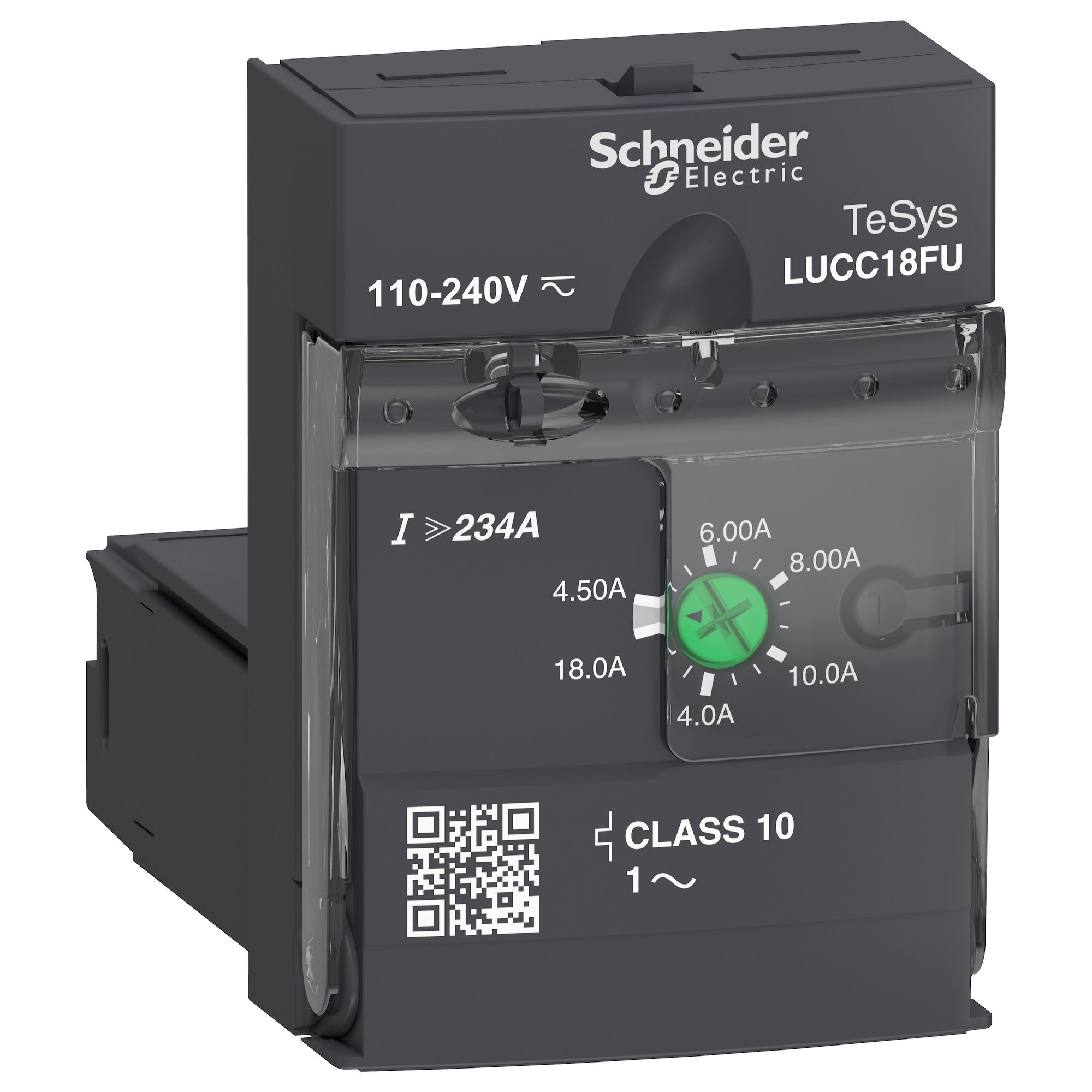

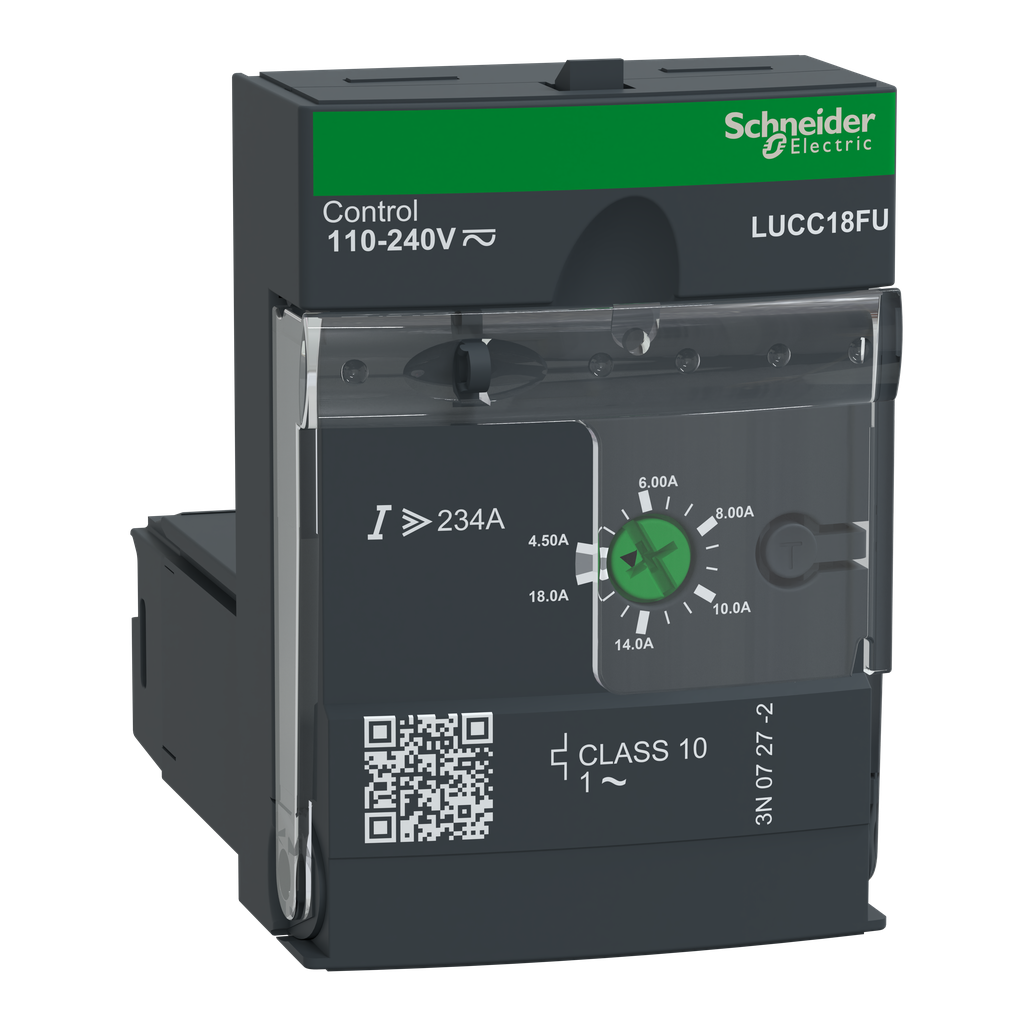

Schneider Electric LUCC18FU Square D 110 to 240 VAC 4.5 to 18 Amp 1-Phase Class 10 Thermal Motor Starter

Product Description

The Schneider Electric LUCC18FU is a control and diagnostic unit suitable for advanced power bases LUB320 and LUB380. This unit functions as a TeSys U starter controller, designed for one-phase motor applications up to four kilowatts at four hundred volts. The LUCC18FU provides comprehensive protection for motors with an adjustable rated current range of four point five to eighteen amps. It includes overload protection with a class ten tripping mechanism, short circuit protection, and phase loss detection capabilities. The unit also features an insulation fault detection for equipment protection.

The device includes a thermal overload alarm that can be managed through an additional function module, sold separately, and comes equipped with a test push button for overload simulation. It operates on a voltage supply of one hundred ten to two hundred forty volts AC or one hundred ten to two hundred twenty volts DC, making it versatile for various control needs.

• Advanced control unit for motor protection and diagnostics
• Overload protection with tripping class 10
• Certified for IEC, UL, CSA, and Marine standards

Product Highlights

This product is ideal for industrial applications that require reliable motor control and protection.

Product Information

Standard Information

• Catalog Number: LUCC18FU
• Brand: Schneider Electric

Technical Specifications

• Voltage: 690 Volt
• Size: 2.36 inches
• Depth: 60 mm
• Width: 45 mm
• Height: 66 mm
• Load Type: Single-phase motor
• Power Supply: 110/240V
• Warranty Length: 18 months
