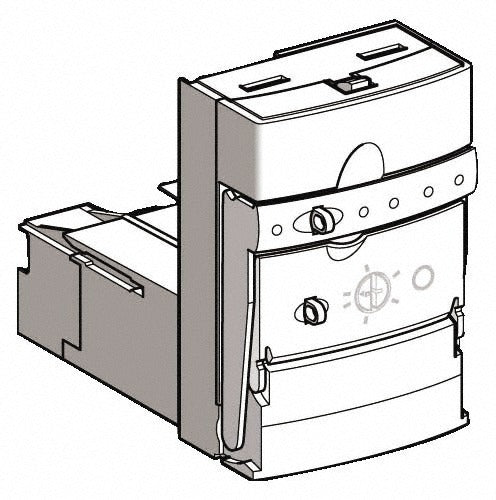

Schneider Electric LUCC12FU Starter Control Unit

Product Description

The SCHNEIDER ELECTRIC LUCC12FU is a starter control unit designed for use with compatible motor starter modules in industrial and commercial electrical systems. This control unit serves as a key accessory that interfaces with supported function modules to enable precise starter operation and control. Weighing 0.32 pounds, it is a compact component suited for panel-mounted motor starter assemblies. Licensed electricians and industrial maintenance technicians are the typical installers of this type of control unit.

The LUCC12FU is intended for use in motor control applications where a dedicated control unit is required to pair with supported starter function modules. It is appropriate for use in industrial panel builds, commercial electrical installations, and motor control center assemblies where SCHNEIDER ELECTRIC TeSys starter components are specified.

Key Features

• Designed as a control unit accessory for compatible SCHNEIDER ELECTRIC motor starter modules
• Compact and lightweight at 0.32 pounds for easy integration into panel assemblies
• Compatible with multiple function modules including LUFC00, LUFDA01, LUFDA10, LUFDH11, LUFN, LUFV2, and LUFW10
• Sold individually as a single-unit package

Compatibility

The LUCC12FU is confirmed for use with the following SCHNEIDER ELECTRIC function modules: LUFC00, LUFDA01, LUFDA10, LUFDH11, LUFN, LUFV2, and LUFW10.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements and local electrical codes. De-energize and lock out the motor control panel before installing or servicing this control unit. Verify module compatibility before mounting to avoid mismatched assembly. Do not force-fit the unit onto incompatible modules, as damage to the connection interface may result.
