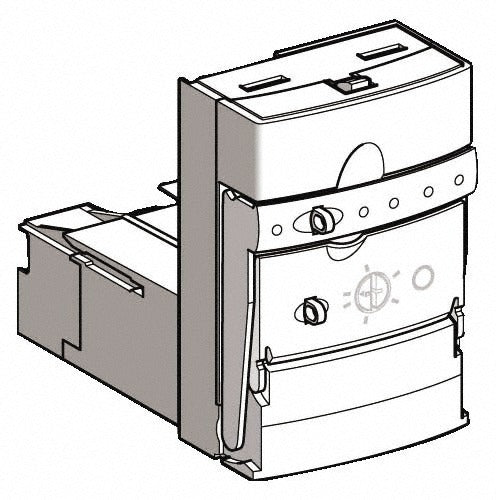

Schneider Electric LUCC12BL Starter Control Unit

Product Description

The SCHNEIDER ELECTRIC LUCC12BL is a starter control unit designed for use with TeSys U motor starter systems. It serves as the control interface component that integrates with compatible function modules and communication units to manage motor starting operations. Weighing 0.31 pounds and measuring 4.1 inches in height, 2.1 inches in width, and 3.3 inches in length, this compact unit is built for panel and enclosure installations where space is a consideration. Licensed electricians and industrial controls technicians are the primary installers of this type of component.

This control unit is applicable in industrial and commercial electrical control panel builds and maintenance scenarios. It is used wherever a TeSys U-compatible starter assembly requires a dedicated control unit to coordinate motor starter function modules. The LUCC12BL is suited for new panel builds as well as replacement of a failed or outdated control unit in an existing starter assembly.

Key Features

• Compact form factor at 4.1 x 2.1 x 3.3 inches for tight enclosure installations
• Lightweight construction at 0.31 pounds
• Compatible with a wide range of TeSys U function and communication modules
• Designed as a direct-fit starter accessory control unit for supported module combinations
• Single-unit packaging for straightforward replacement or build applications

Compatibility

Designed for use with the following modules: ASILUFC5, ASILUFC51, LUFC00, LUFDA01, LUFDA10, LUFDH11, LUFN, LUFV2, LUFW10, LULC031, LULC033, LULC07, LULC08, LULC09, and LULC15.

Installation Notes

Installation should be performed by a licensed electrician familiar with motor starter and control panel wiring practices. De-energize the panel and verify zero voltage at all terminals before handling or replacing the control unit. Follow applicable NEC requirements for industrial motor control equipment. Consult the full TeSys U system documentation to confirm correct module pairing before energizing.
