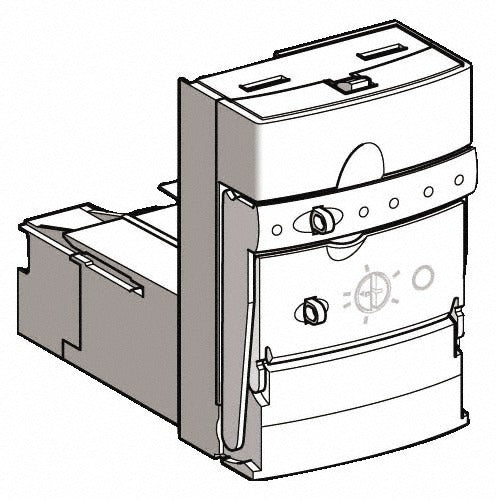

Schneider Electric LUCC05FU Starter Control Unit

Product Description

The SCHNEIDER ELECTRIC LUCC05FU is a starter control unit designed as an accessory for use with compatible motor starter modules. It provides the control interface layer within a modular starter assembly, allowing the starter module to receive and process switching signals. The LUCC05FU weighs 0.28 pounds, making it a compact component suited for panel and enclosure installations. Licensed electricians and industrial maintenance technicians are the primary installers of this type of control unit in motor control center and panel-mounted applications.

The LUCC05FU is intended for use in motor control assemblies where modular starter accessories are required. It fits residential, commercial, and light industrial control panel installations where SCHNEIDER ELECTRIC modular starter systems are deployed. This unit pairs directly with the LUFC00, LUFDA01, LUFDA10, LUFDH11, LUFN, LUFV2, and LUFW10 starter function modules, making it a targeted replacement or build-out component for those specific module families.

Key Features

• Serves as the control unit interface in a modular motor starter assembly
• Compatible with seven SCHNEIDER ELECTRIC starter function modules
• Compact and lightweight at 0.28 pounds for easy panel integration
• Sold individually, package quantity of one

Compatibility

Designed for use with the following SCHNEIDER ELECTRIC starter function modules: LUFC00, LUFDA01, LUFDA10, LUFDH11, LUFN, LUFV2, and LUFW10.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements and the manufacturer wiring diagrams for the specific starter module in use. De-energize and lock out the panel before removing or installing any starter control unit. Verify that the function module is fully seated and latched before restoring power to the assembly.
