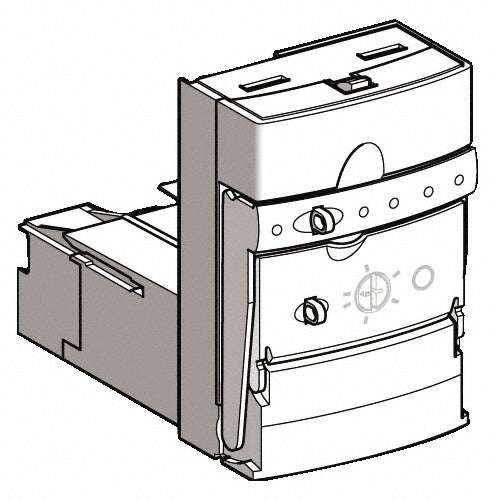

Schneider Electric LUCC05BL Starter Control Unit

Product Description

The SCHNEIDER ELECTRIC LUCC05BL is a starter control unit designed for use with compatible LUFC and LULC series motor starter communication and control modules. It serves as a direct accessory component within motor starter assemblies, providing the control interface layer that coordinates starter operation in industrial and commercial electrical systems. Licensed electricians and industrial maintenance technicians install this unit as part of motor control center (MCC) and direct-on-line or soft-start configurations. The LUCC05BL ships as a single unit and weighs 0.28 pounds, with a compact footprint suited to panel and DIN-rail-based control enclosures.

This control unit is intended for industrial motor control applications where SCHNEIDER ELECTRIC TeSys U-series starter platforms are deployed. It is a replacement and supplementary accessory part, appropriate for service and retrofit work on existing motor starter assemblies that use compatible communication and function modules. It is not a standalone starter and must be integrated into a compatible motor starter system.

Key Features

• Designed as a starter accessory control unit for TeSys U-series compatible motor starter assemblies
• Compact dimensions of 4.1 inches height, 2.1 inches width, and 3.3 inches length
• Lightweight at 0.28 pounds, suitable for space-constrained control enclosures
• Compatible with a wide range of LUFC, LUFDA, LUFDH, LULC, and related control modules
• Single-unit package with a minimum order quantity of one

Compatibility

Designed for use with the following modules: ASILUFC5, ASILUFC51, LUFC00, LUFDA01, LUFDA10, LUFDH11, LUFN, LUFV2, LUFW10, LULC031, LULC033, LULC07, LULC08, LULC09, and LULC15.

Installation Notes

Installation should be performed by a qualified electrician familiar with motor control equipment and applicable NEC requirements. De-energize and lockout/tagout the motor starter assembly and all associated circuits before handling or installing this control unit. Verify compatibility with the existing starter module before installation. Consult the SCHNEIDER ELECTRIC documentation for the host module to confirm correct mounting orientation and connector seating.
