Schneider Electric LUCB32FU Advanced Control Unit 110 to 240 VAC 8 to 32 Amp 3-Phase Class 10

Product Description

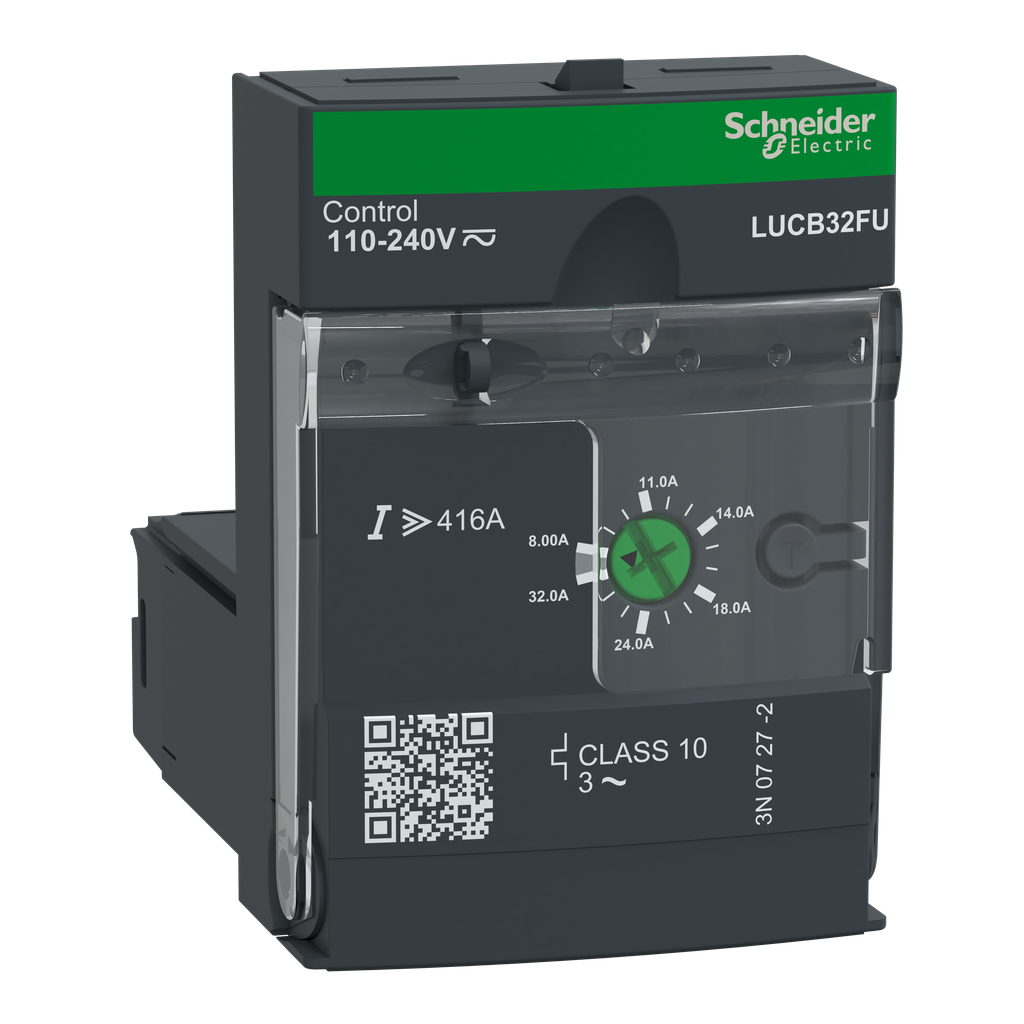

Schneider Electric LUCB32FU is an advanced control unit for use in 3-phase motor applications. It works with power bases like LUB320 and LUB380 to form a TeSys U starter controller. This unit is suitable for motors up to 15 kilowatt at four hundred volts and supports adjustable rated currents from eight to thirty-two amps.

• Full motor protection with overload tripping class 10.
• Thermal overload alarm, usable locally or remotely.
• Compatible with 110-240V AC or 110-220V DC power sources.

Product Highlights

It provides essential features for safe motor operation, including phase loss and insulation fault protection, ensuring reliable performance.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: LUCB32FU
• Voltage: 690 Volt
• Depth: 60 mm
• Width: 45 mm
• Height: 66 mm
• Operating Temperature: -25 to 70 degrees C
• Country of Origin: France
• Warranty Length: 18 months
