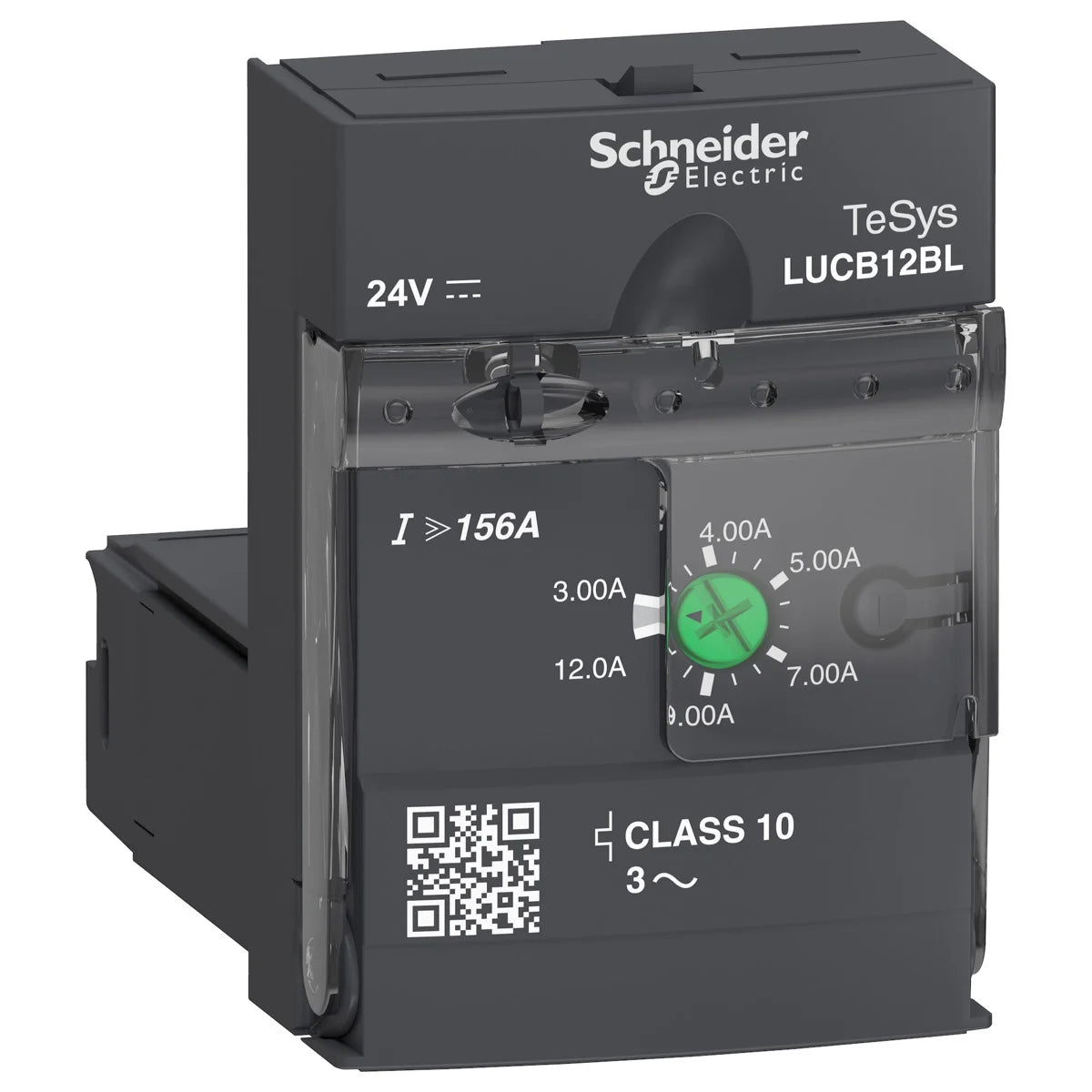

Schneider Electric LUCB12BL Advanced Control Unit 3A to 12A 3P Motors Protection & Diagnostic

Product Description

The Schneider Electric LUCB12BL is an advanced control unit designed to be inserted into power bases LUB120, LUB320, or LUB380. This unit is suitable for three-phase motor applications with power ratings up to five point five kilowatts at four hundred volts. It provides comprehensive motor protection with a rated current adjustable between three to twelve amperes. Key features include overload tripping class ten, short circuit protection at thirteen times the maximum rated current, as well as overcurrent protection at fourteen point two times the rated current. It also protects against phase loss and insulation faults.

• Comprehensive thermal overload alarm system
• Remote and local alarm options
• Compatible with 24V DC control voltage

Product Highlights

This control unit is designed for use with a range of Schneider Electric power bases and meets multiple safety certifications including IEC, UL, and CSA.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: LUCB12BL

Technical Specifications

• Catalog Number: LUCB12BL
• Rated Current: 3-12A
• Protection Class: 10
• Control Voltage: 24V DC
• Country of Origin: France
• Warranty: 18 months
• RoHS Compliance: Yes
• GTIN: 03389110364095
