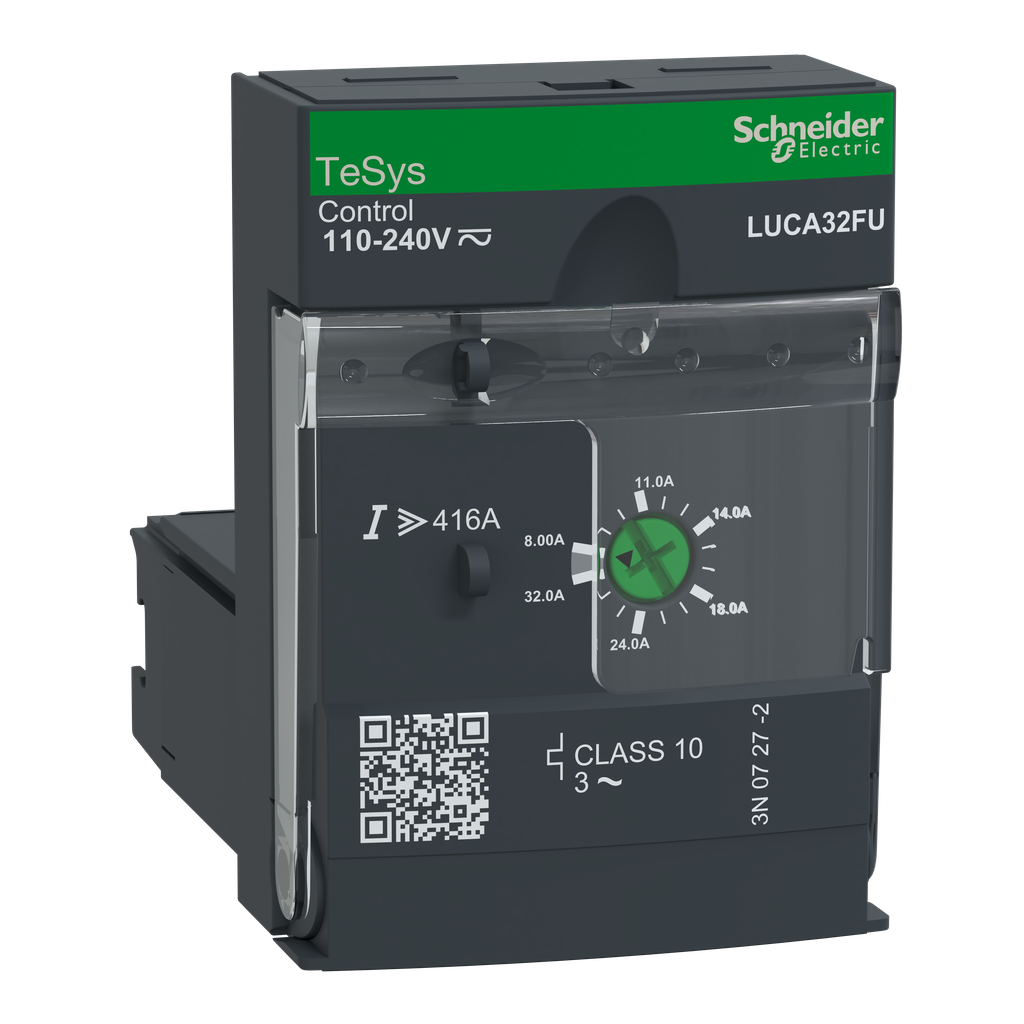

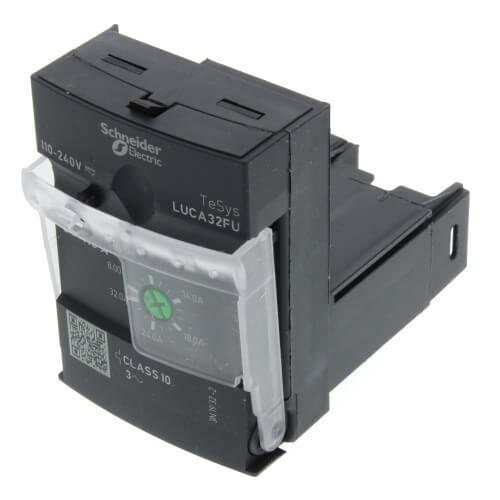

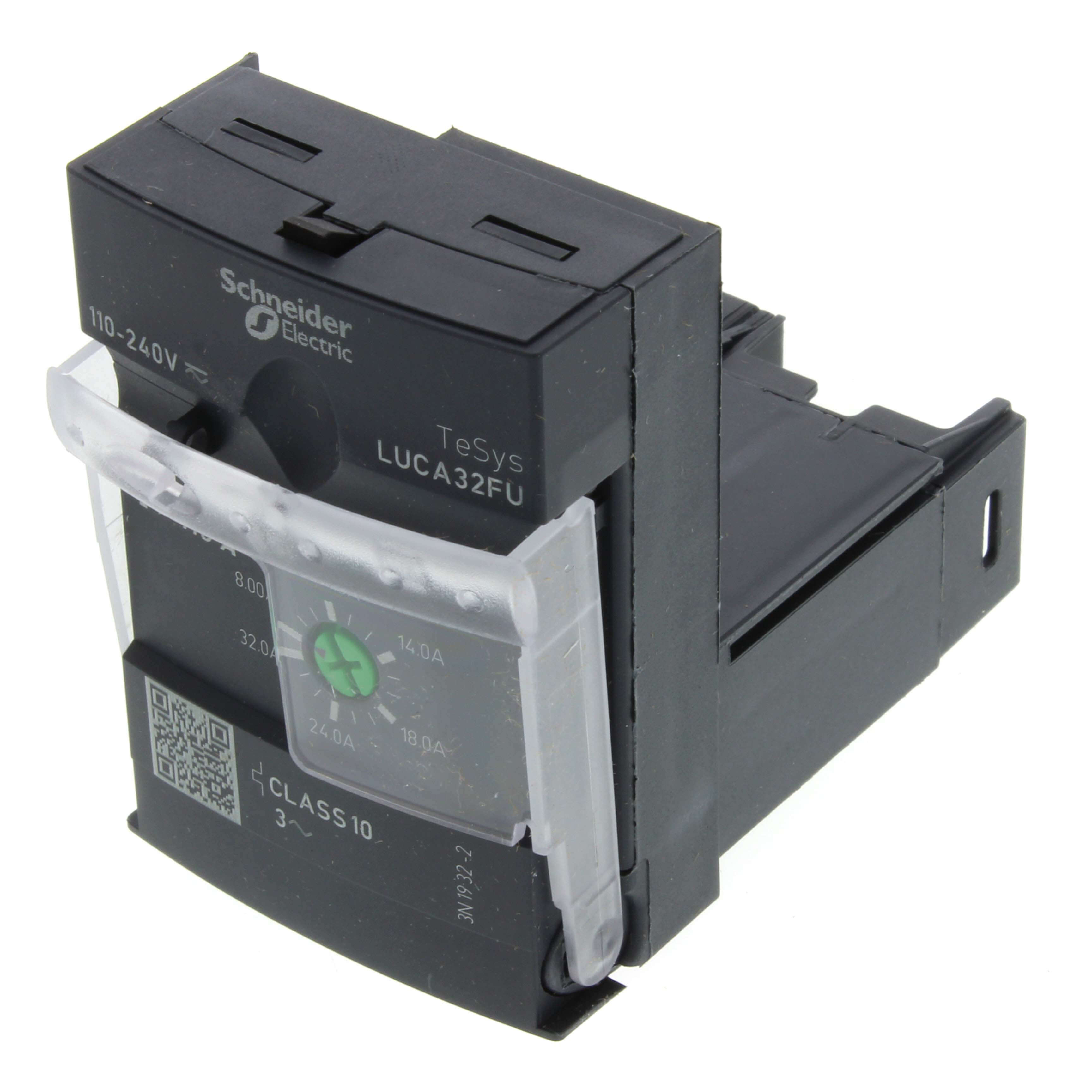

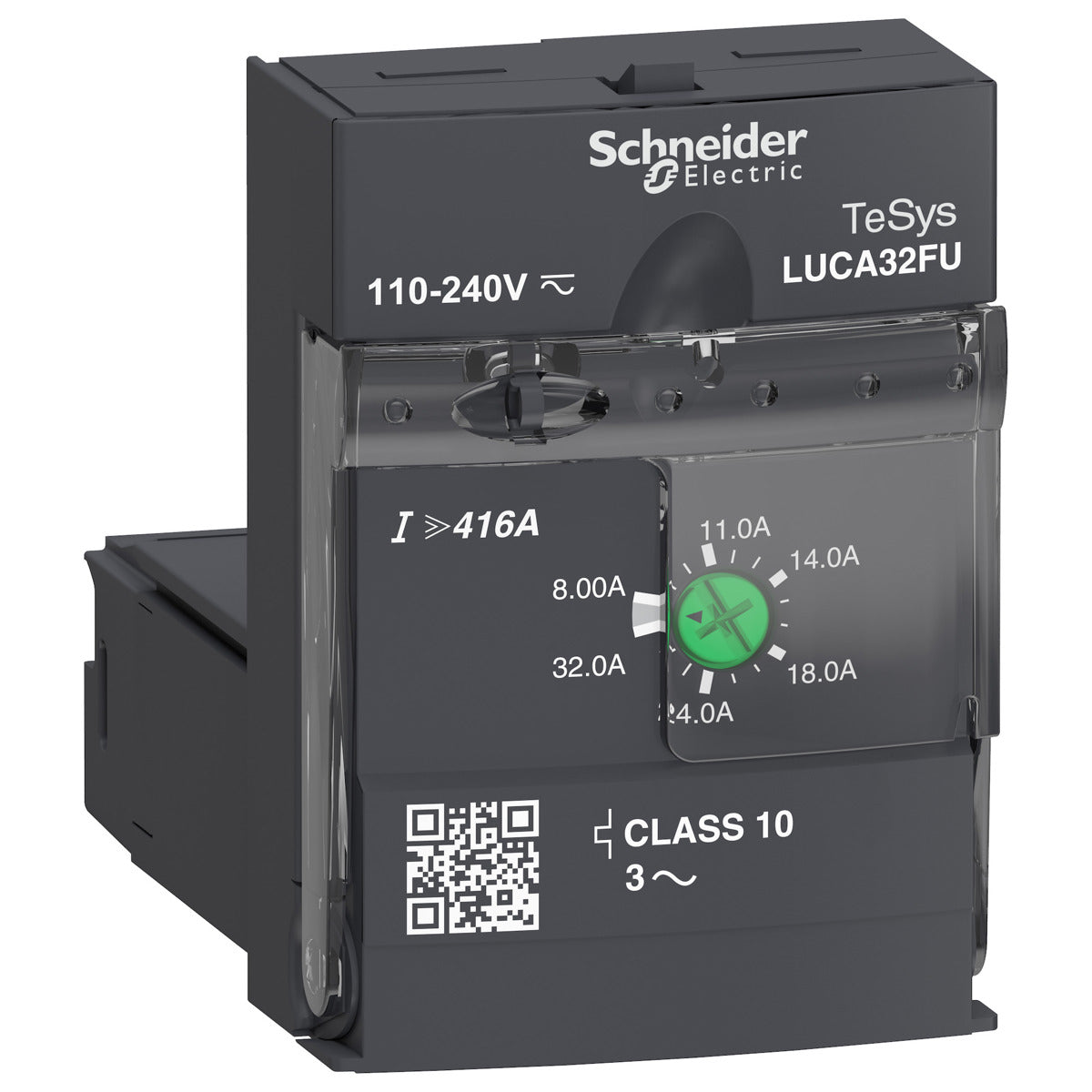

Schneider Electric LUCA32FU Standard Control Unit 110-240 VAC 8-32 Amp 3-Phase Class 10

Product Description

The Schneider Electric LUCA32FU is a standard control unit suitable for 3-phase motor applications. This component, part of the TeSys U range, supports 110 to 240 VAC and 8 to 32 Amp, making it versatile for various uses. Efficient in protecting against overloads and short circuits, the LUCA32FU ensures reliable and safe motor operation.

• Electronic sensing for precise overload protection
• Class 10 trip unit for high performance and reliability
• Reset button for easy manual reset

Product Highlights

The LUCA32FU offers essential protection for motors and machinery, providing reliable and efficient operation. Its compact design and straightforward installation make it suitable for industrial, commercial, and residential applications.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: LUCA32FU

Technical Specifications

• Voltage: 110-240 VAC / 110-220 VDC
• Current Range: 8-32 Amp
• Trip Class: 10
• Number of Poles: 3
• Dimensions: Depth 60 mm, Width 45 mm, Height 66 mm
• Weight: 0.30 lb / 0.135 kg
• Certifications: CSA, UL, IEC
• Operating Voltage: 690 V
• Protection Features: Overload, Short-circuit, Phase loss, Insulation fault
• Reset Type: Manual
• Country of Origin: France
