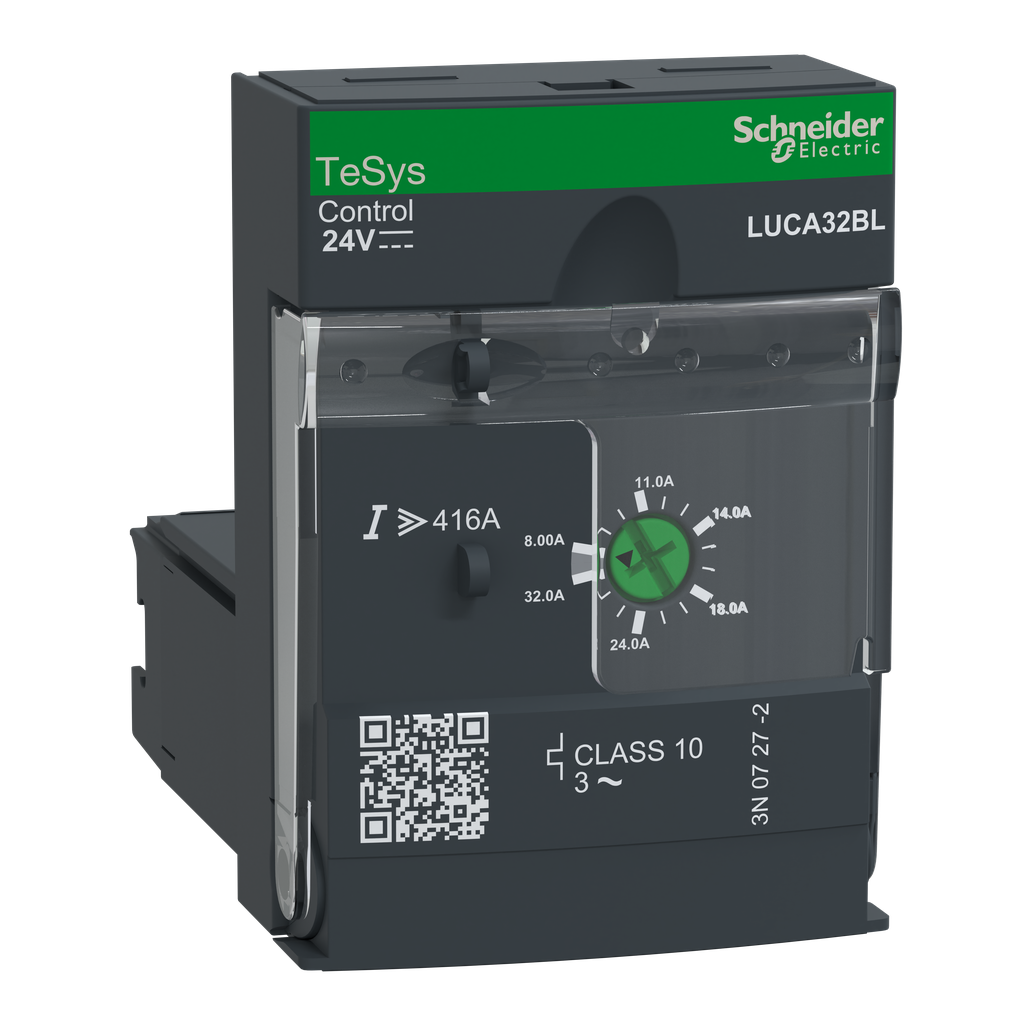

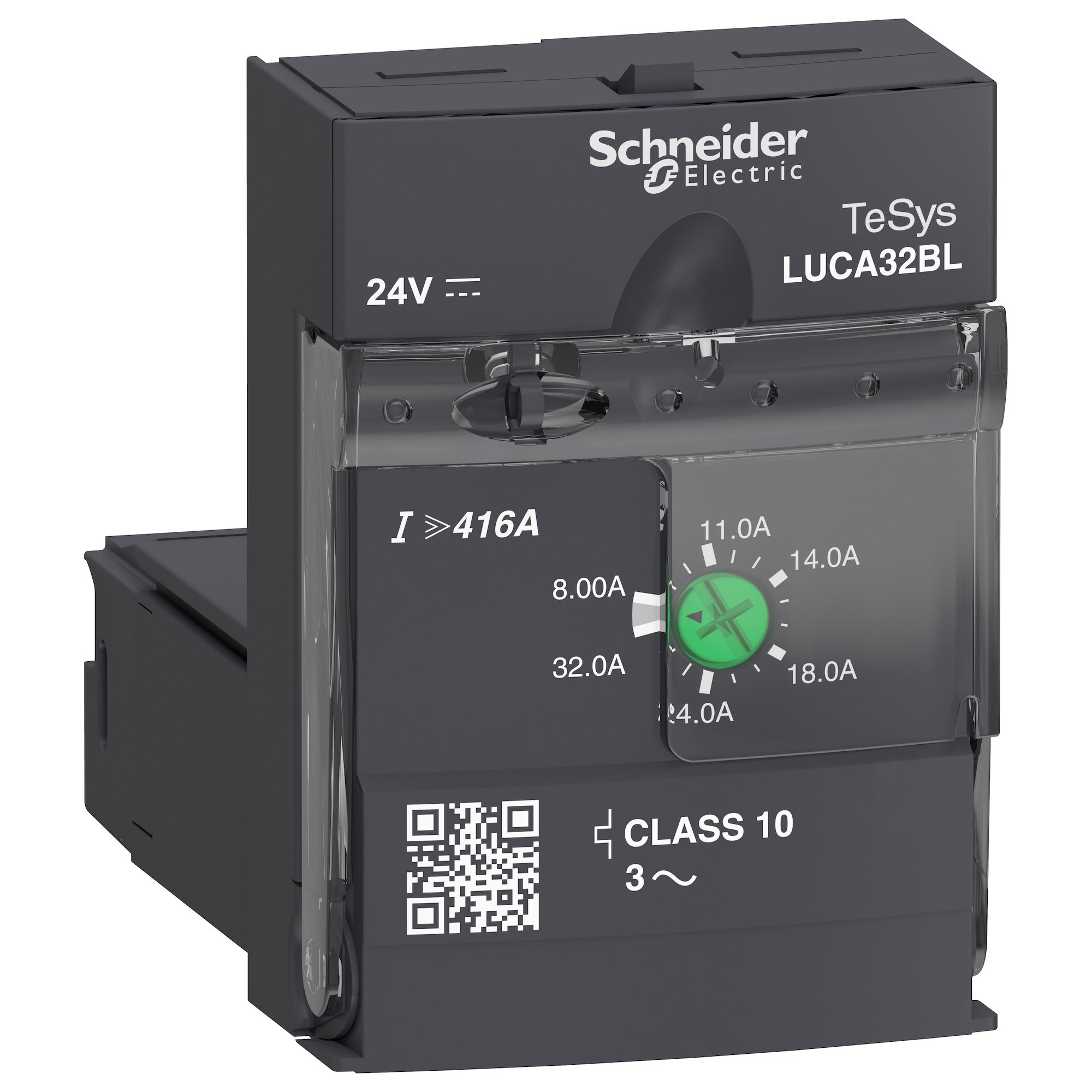

Schneider Electric LUCA32BL Standard Control Unit 24 VDC 8 to 32 Amp 3-Phase Class 10 Thermal Motor Starter

Product Description

Schneider Electric LUCA32BL is a standard control unit designed for integration into LUB32 or LUB38 power bases, facilitating TeSys U starter controllers. It is suitable for three-phase motor applications rated up to fifteen kilowatts at four hundred volts. The device ensures comprehensive motor protection with adjustable rated current from eight to thirty-two amps, offering overload protection class ten, short circuit protection at thirteen times maximum rated current, and safeguards against overcurrent, phase loss, and insulation faults. This control unit operates with a twenty-four volt direct current supply through the A1/A2 control terminals in the power base. It is certified in conjunction with LUB power bases according to IEC, UL, CSA, CCC, EAC, and Marine standards and is compliant with Green Premium (RoHS/REACh).

• Ideal for three-phase motor applications.
• Supports adjustable rated current from eight to thirty-two amps.
• Comprehensive protection features including phase loss and insulation faults.

Product Highlights

This control unit protects motors and ensures stable operation in industrial settings.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: LUCA32BL
• Voltage: 690 Volt
• Weight: 0.30 lb
• Dimensions: 2.36 in (Width) x 60 mm (Depth) x 66 mm (Height)
• Warranty: 18 months
• Country of Origin: France
