Schneider Electric LUCA18BL Standard Control Unit 24VDC (Each) Replacement MPN

Product Description

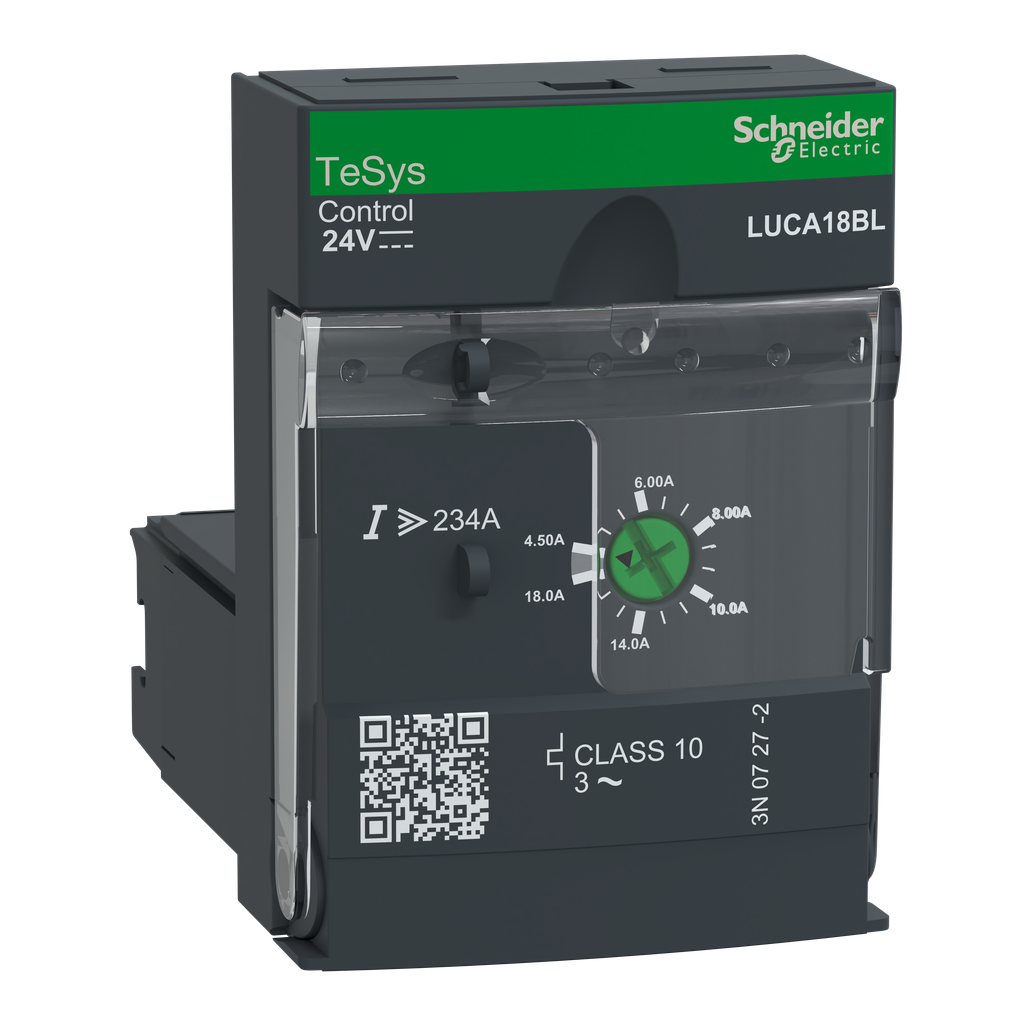

Schneider Electric LUCA18BL is a standard control unit designed for integration into power bases LUB32 and LUB38. This product forms part of a TeSys U starter controller suited for three-phase motor applications up to seven point five kilowatts at four hundred volts. It protects motors with adjustable rated current ranging from four point five to eighteen amperes.

• Compatible with control terminals A1/A2
• Provides overload protection with class ten tripping
• Certified for IEC, UL, CSA, CCC, EAC, and Marine standards

Product Highlights

This control unit offers reliable motor protection and is efficient for various three-phase applications.

Product Information

Standard Information

• Catalog Number: LUCA18BL
• Brand: Schneider Electric

Technical Specifications

• Depth: sixty mm
• Width: forty-five mm
• Height: sixty-six mm
• Weight: zero point thirty lb
• Voltage Rating: six hundred ninety volts
• Power Supply: twenty-four VDC
• Operating Temperature: minus twenty-five to seventy degrees Celsius
• Country of Origin: France
