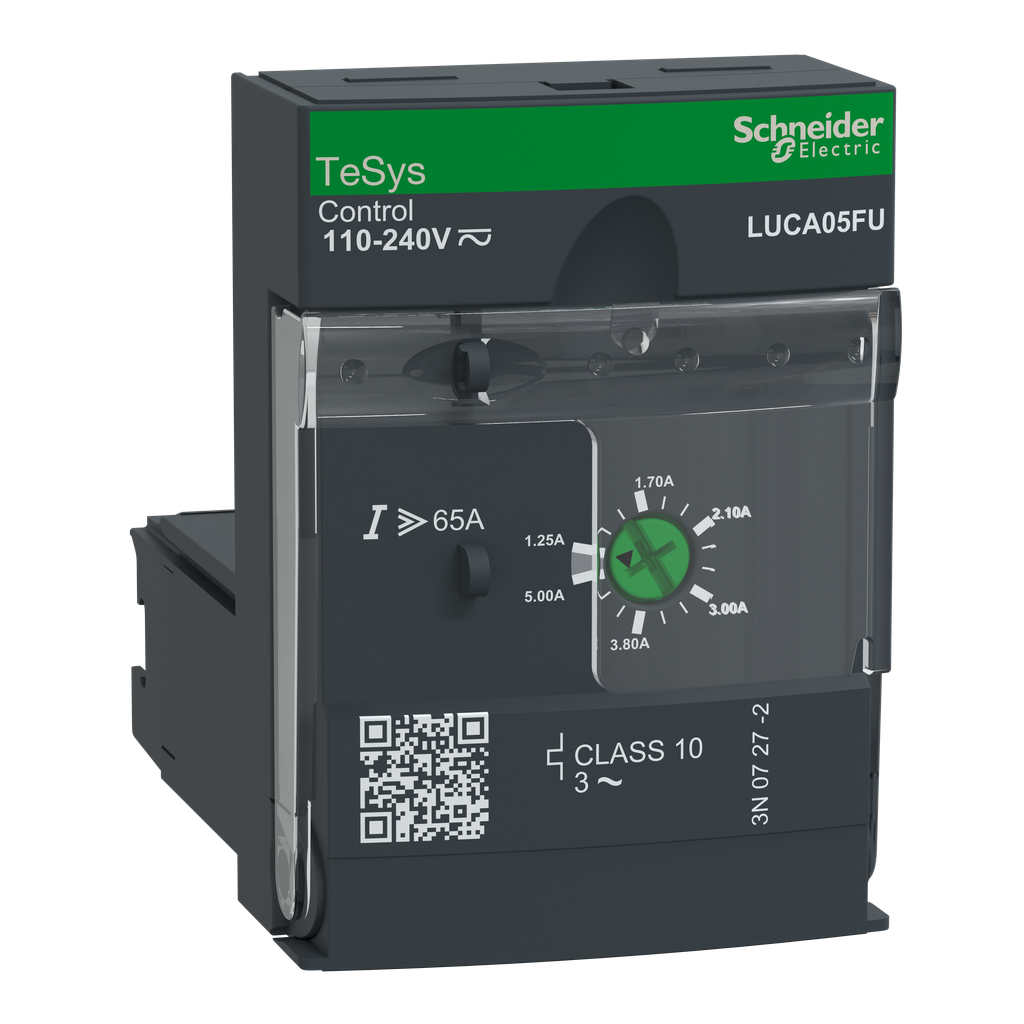

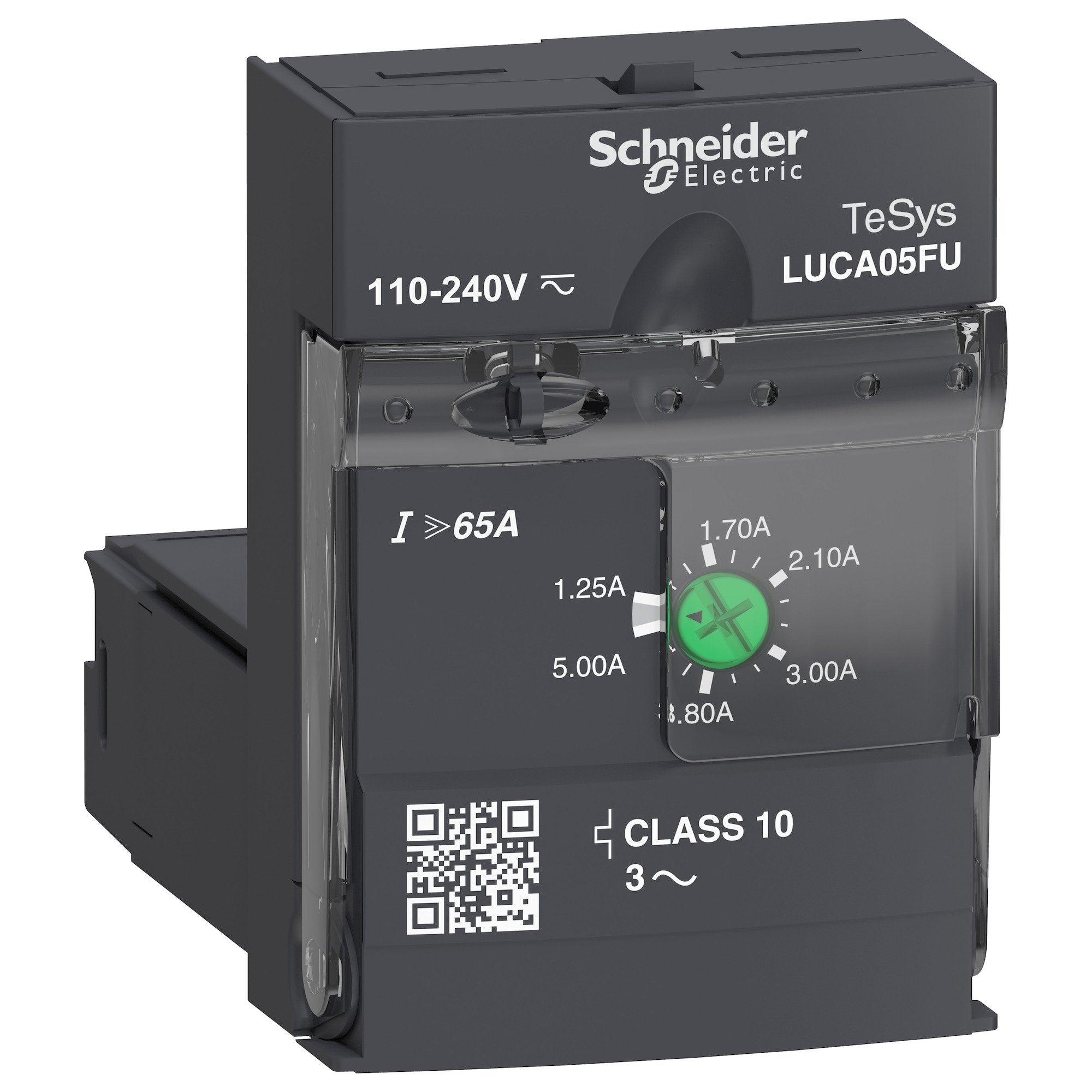

Schneider Electric LUCA05FU Standard Control Unit 110 to 240 VAC 1.25 to 5 Amp 3-Phase

Product Description

Schneider Electric LUCA05FU is a standard control unit designed for use in TeSys U power bases LUB12, LUB32, and LUB38. It supports 3-phase motor applications up to 1.5 kilowatt at a voltage of four hundred. It offers protection to motors with an adjustable rated current from one point twenty-five to five amps, featuring class ten overload tripping, short circuit protection, and insulation fault detection. This unit requires a power supply of one hundred ten to two hundred forty volts AC or one hundred ten to two hundred twenty volts DC. It is certified in combination with a LUB power base and meets multiple international standards including IEC, UL, and CSA.

• Adjustable rated current of 1.25 to 5 amps.
• Compatible with TeSys U power bases.
• Approved for multiple international safety standards.

Product Highlights

The LUCA05FU standard control unit is essential for basic protection needs of motor starters, including overload and short-circuit protection.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: LUCA05FU
• Voltage: 690 Volt
• Width: 1.77 inches
• Height: 2.6 inches
• Depth: 2.36 inches
• Weight: 0.30 lb
• Country of Origin: France
• Operating Temperature: -25 to 70 degrees Celsius
• Storage Temperature: -40 to 85 degrees Celsius
