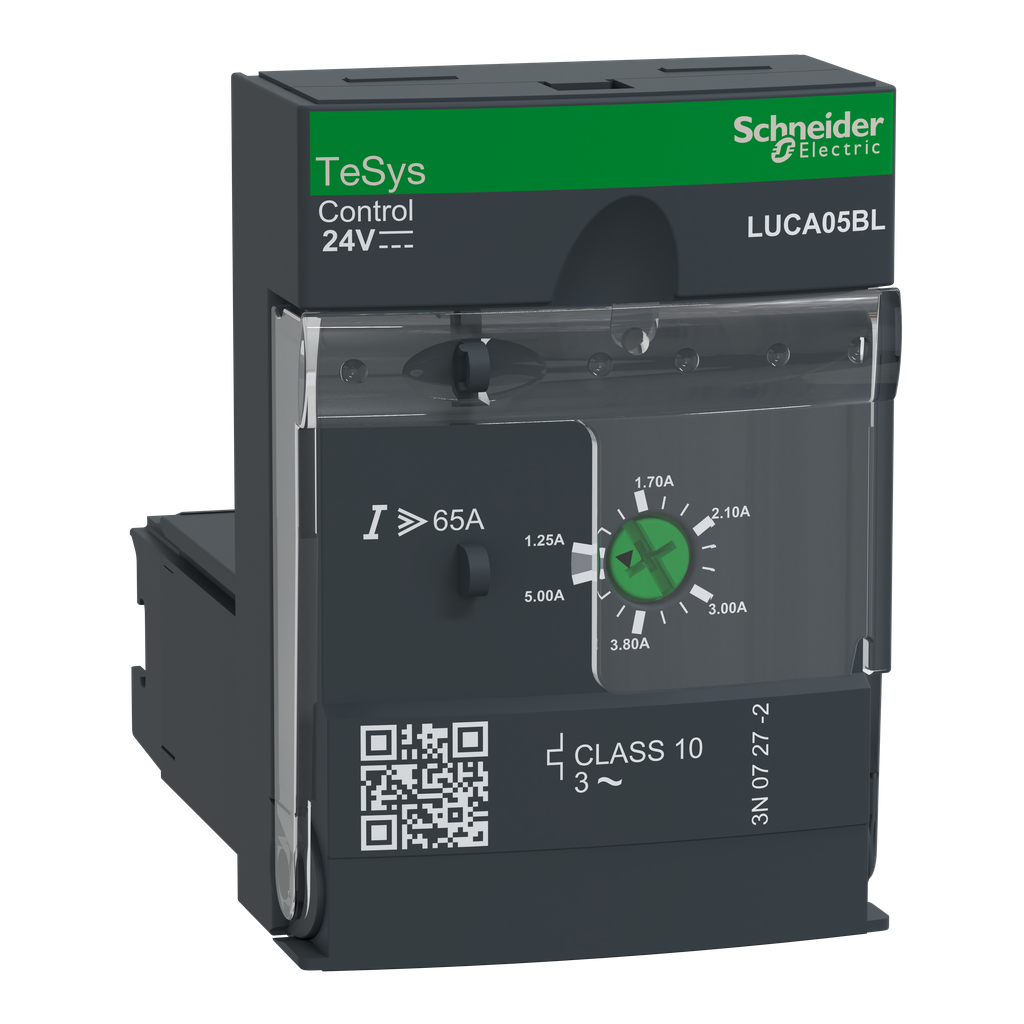

Schneider Electric LUCA05BL Square D 24 VDC 1.25 to 5 Amp 3-Phase Class 10 Thermal Motor Starter

Product Description

Schneider Electric LUCA05BL is a standard control unit designed for use in power bases LUB12, LUB32, and LUB38, forming a complete TeSys U starter controller. This control unit is suitable for three-phase motor applications with a power rating of up to one point five kilowatts at four hundred volts. It offers reliable protection for motors with adjustable rated currents from one point twenty-five to five amps. The LUCA05BL features overload tripping class 10, short circuit protection, phase loss detection, and insulation fault protection for equipment safety.

• Rated current range: 1.25-5 amps
• Overload protection class 10
• Compatible with 24 VDC control voltage

Product Highlights

This Schneider Electric product ensures high performance and compliance with safety standards, including IEC, UL, CSA, CCC, EAC, and Marine certifications.

Product Information

Standard Information

• Catalog Number: LUCA05BL
• Brand: Schneider Electric

Technical Specifications

• Type: Standard control unit
• Depth: 60 mm
• Width: 45 mm
• Height: 66 mm
• Weight: 0.30 lb
• Voltage: 690 Volt
• Operating Temperature: -25 to 70 degrees C
• Country of Origin: France
