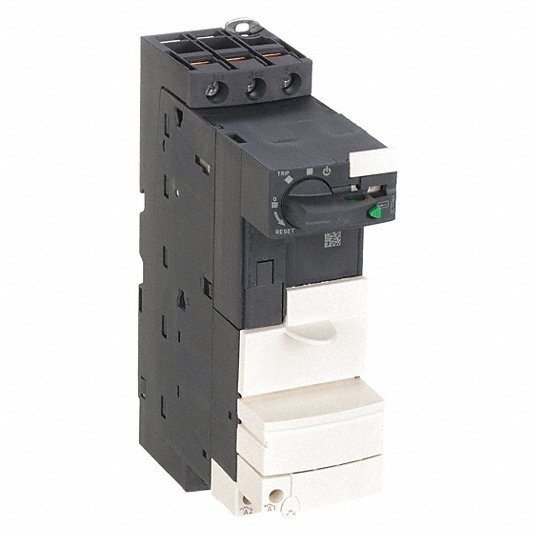

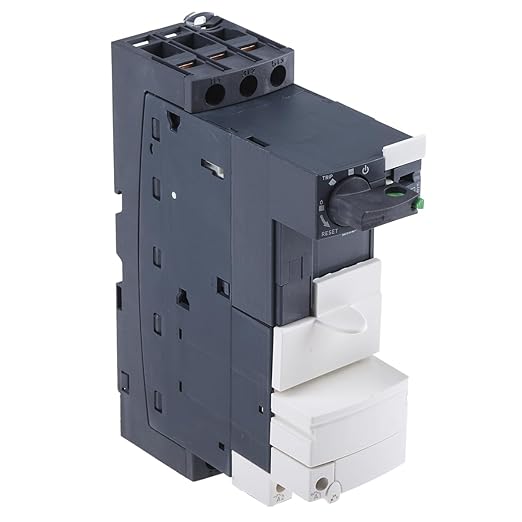

Schneider Electric LUB32 Motor Starter 32 A

Product Description

The Schneider Electric LUB32 motor starter is designed for three-phase motor applications. It features a standard TeSys U power base with three poles, rated for thirty-two amperes and six hundred ninety volts. This starter requires a complementary LUC control unit to create a TeSys U starter controller suitable for motors up to fifteen kilowatts at four hundred volts.

• Mechanical endurance: fifteen million cycles
• Compatible with various control voltages
• Complies with UL 508 standards

Product Highlights

This motor starter is ideal for motor control and protection in industrial settings. It has a sturdy design with significant resistance to voltage dips and electromagnetic interference.

Product Information

Standard Information

• Brand: Schneider Electric
• Model Number: LUB32

Technical Specifications

• Amperage: 32 Amps
• Dimensions: 5.71 x 6.69 x 2.05 inches
• Weight: 0.85 Kilograms
• Rated Isolation Voltage: 600 V
• Breaking Capacity: 50 kA at 400 V
• Control Voltage: 24 V
• Primary Type: Motor Starter
• Maximum Operating Temperature: 70 °C
• Minimum Operating Temperature: -25 °C
• Number of Poles: 3
• Conventional Free Air Thermal Current: 32 A
• Device Application: Motor control; motor protection
• Product Certifications: CE, UL, CSA
