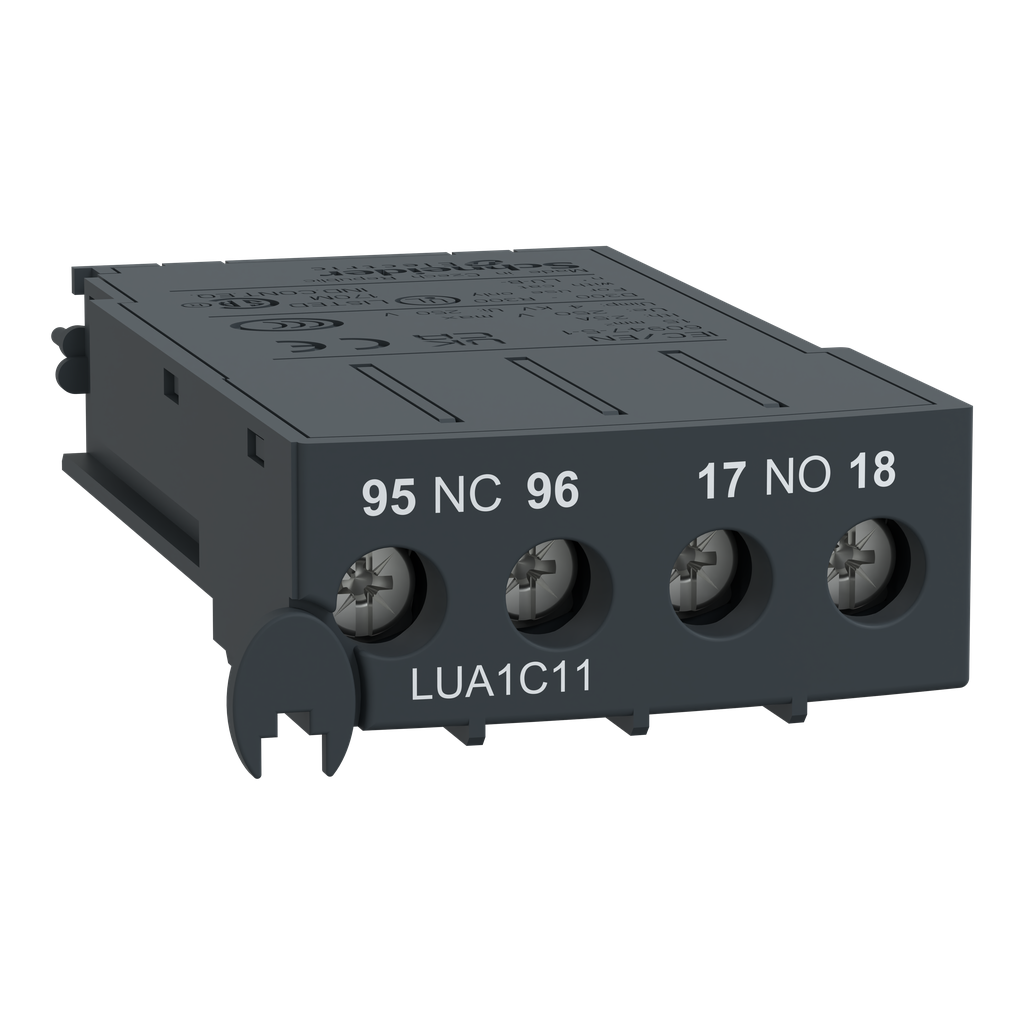

Schneider Electric LUA1C11 Square D 250 VAC/VDC 5 Amp 1NO 1NC Screw Clamp Terminal Auxiliary Contact Block

Product Description

Schneider Electric LUA1C11 is an auxiliary signaling contact block designed for TeSys U starter controllers. This block features one normally open (1NO) contact for open/close status and one normally closed (1NC) contact for tripping status. It is rated for five amps and operates at 250 volts AC and DC. This contact block fits into the designated location in the power base.

• Designed for TeSys U starter controllers
• One normally open and one normally closed contact
• Rated up to five amps at 250 volts

Product Highlights

Compliant with Green Premium standards and meets RoHS and REACh requirements.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: LUA1C11

Technical Specifications

• Weight: 0.07 lb
• Voltage: 250 Volt
• Amperage: 5 Amp
• Country of Origin: Czech Republic
• Warranty Length: 18 months
• Operating Temperature: -25C to 70C
• Certification: RoHS compliant
• Application: TeSys U simple motor starter
