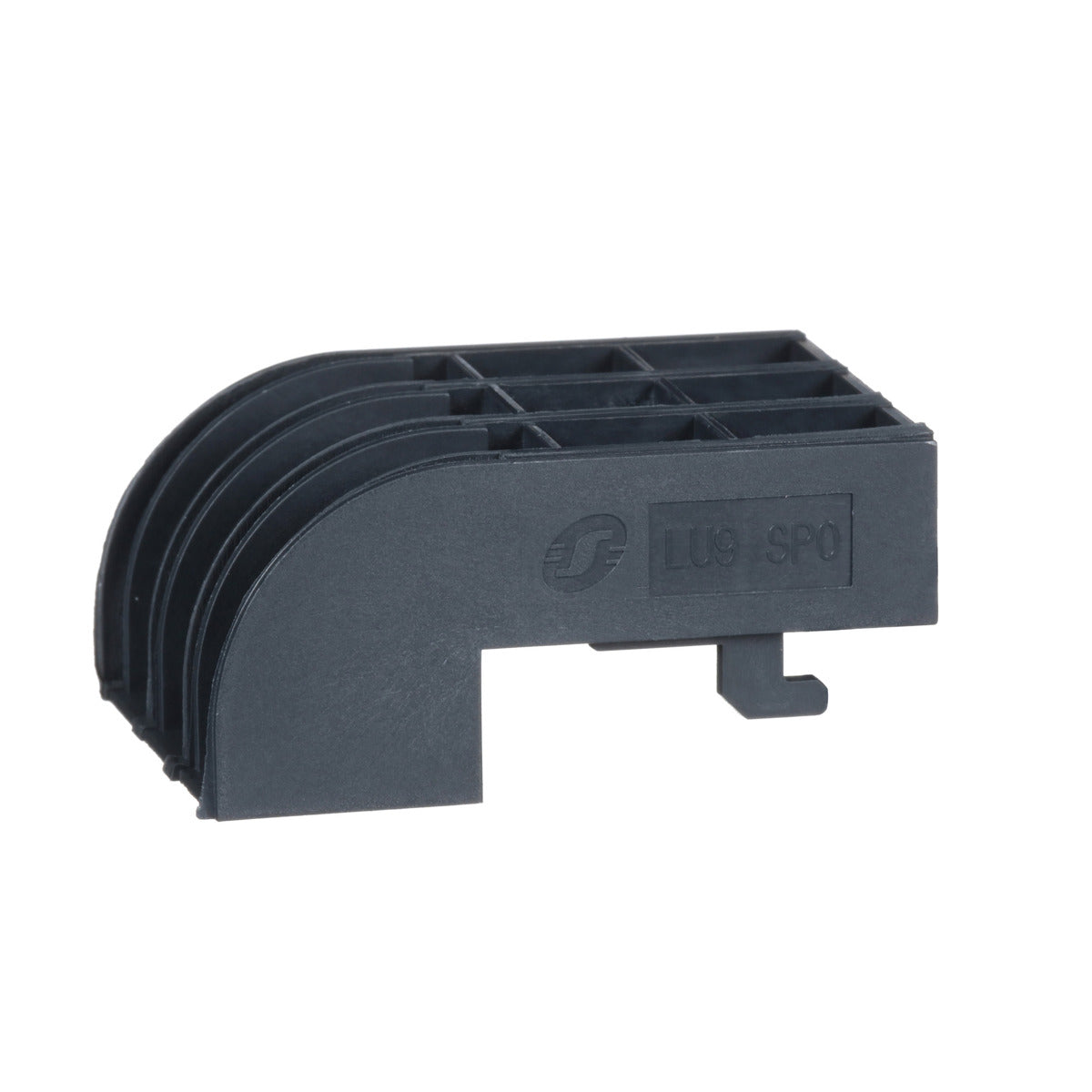

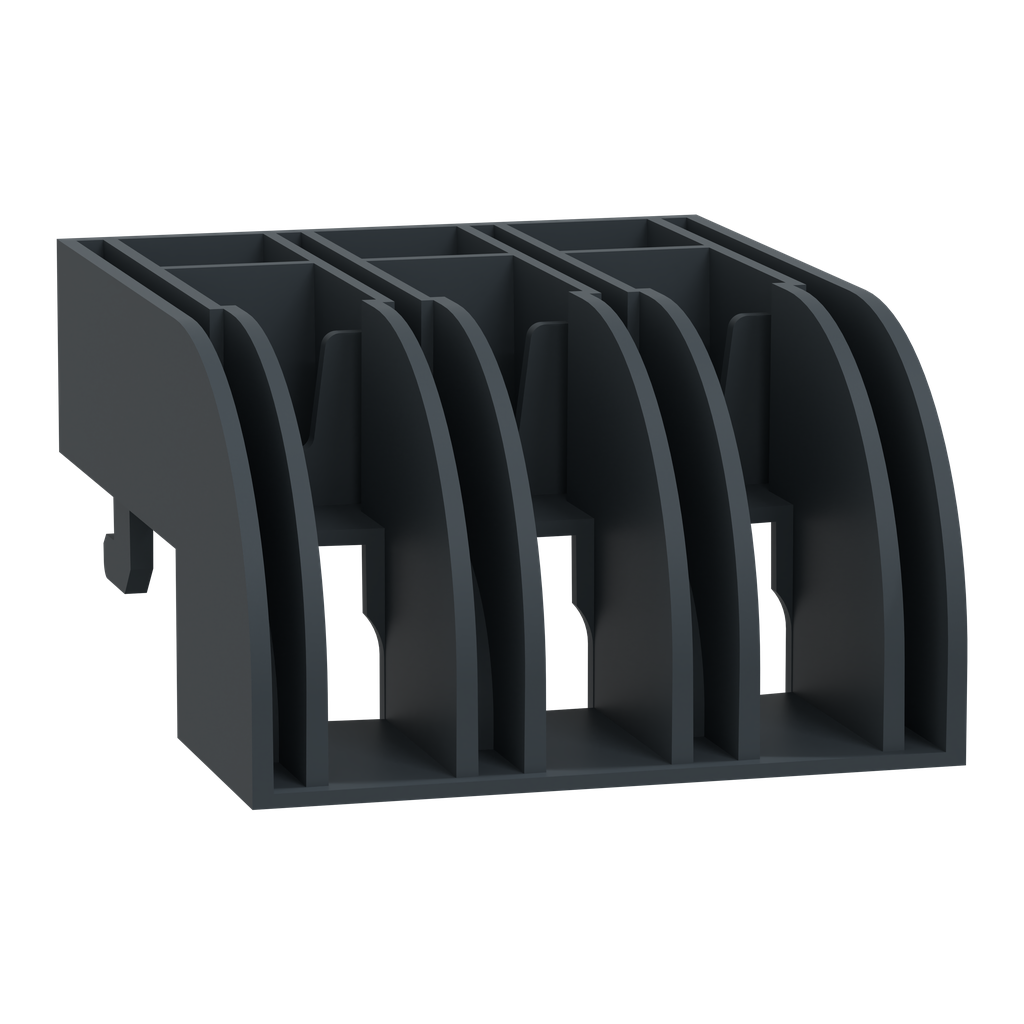

Schneider Electric LU9SP0 Motor Starter Phase Barrier

Product Description

The Schneider Electric LU9SP0 Motor Starter Phase Barrier ensures electrical insulation between phases. Compatible with LUB12, LUB32, LUB38, LUB120, LUB320, LUB380 power bases or LUALB1 limiter block, it is essential for UL508 Type E compliant motor starters. The phase barrier is Green Premium compliant, meeting RoHS and REACh standards.

• Compatible with multiple power bases
• Ensures phase separation
• Green Premium compliant

Product Highlights

This product is designed to provide complementary electrical insulation between phases, necessary for 690V AC and 440V AC networks. Ideal for UL508 Type E motor starter assembly, ensuring safe and reliable operation.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: LU9SP0
• Applications: Required to create a UL508 Type E self-protected combination motor controller
• Weight: 0.07 lb
• Dimensions: 8.00 x 8.00 x 6.00 inches
• Operating Temperature: -25C to 70C
• Number of Poles: 3 Pole
• Enclosure: Open
• Country of Origin: Czech Republic
