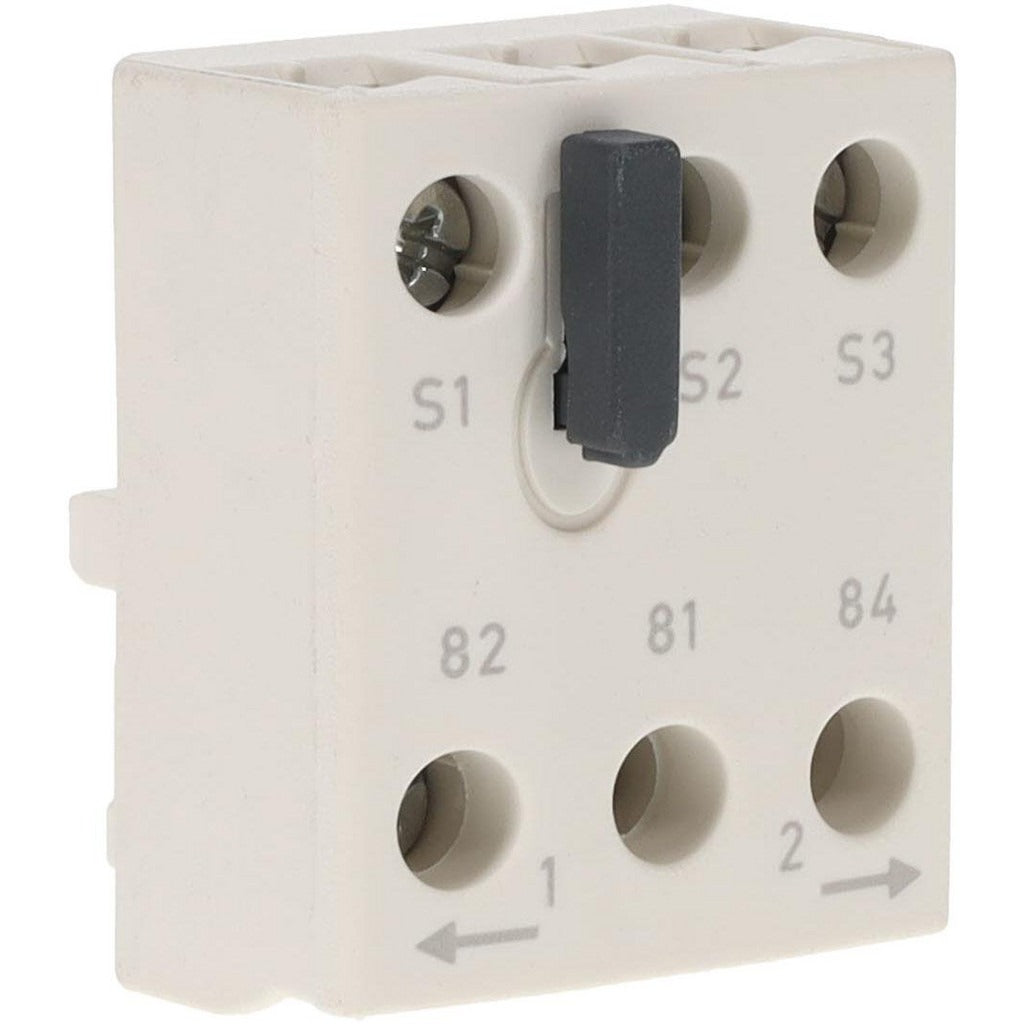

Schneider Electric LU9MR1 Starter Control Terminal Block

Product Description

The SCHNEIDER ELECTRIC LU9MR1 is a control terminal block accessory designed for use with TeSys U motor starters. It provides a dedicated wiring interface for starter control circuits, allowing technicians to make clean, reliable low-voltage control connections at the starter body. This component is a direct starter accessory, not a standalone device, and is installed by licensed electricians or industrial maintenance technicians working on motor control equipment. At 0.06 pounds and compact in size, it is straightforward to handle and position during installation.

This control terminal block is suited for commercial and industrial motor control applications where TeSys U starters are deployed. It is used in motor control centers, machine panels, and equipment enclosures where the LU6MB0 base or TeSys U starter platform is already installed. The LU9MR1 connects to the control section of the starter to extend or organize control wiring, making it a practical addition during initial build-out or field service of motor control assemblies.

Key Features

• Functions as a dedicated control terminal block for TeSys U starters
• Compact form factor: 1.5 inches long, 1.3 inches wide, 1 inch tall
• Lightweight at 0.06 pounds for easy handling in tight panel spaces
• Direct OEM-style starter accessory for clean, organized control wiring
• UNSPSC Code 39121521 for procurement and cataloging compliance

Compatibility

Designed for use with the LU6MB0 and the TeSys U starter platform as specified by the manufacturer.

Installation Notes

Installation should be performed by a qualified electrician familiar with motor control equipment. De-energize and lock out the starter and all associated control circuits before attaching or removing any terminal block accessory. Follow applicable NEC requirements for control wiring and enclosure work. Do not force the terminal block into position; verify proper alignment with the starter body before seating.
