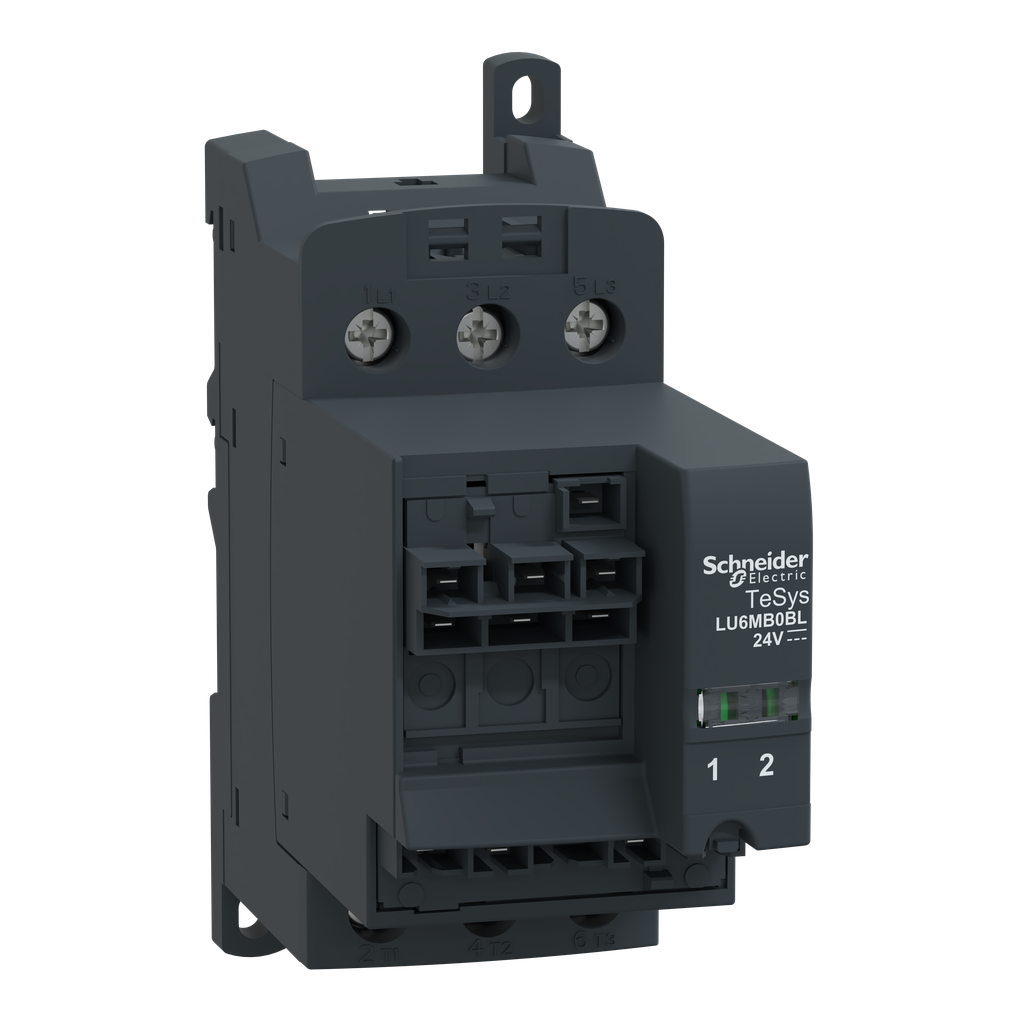

Schneider Electric LU6MB0BL Reverser Block For Side Mounting, TeSys Ultra, Coil 24VDC

Product Description

The Schneider Electric LU6MB0BL is a TeSys U reversing module designed for side mounting. It is essential for creating TeSys U reversing starter controllers. This module features reverse power contacts and coil control with interlocking capabilities. It operates on 24 DC and is compatible with advanced power bases such as LUB120, LUB320, and LUB380, equipped with control unit LUC*BL type. For a complete side mounting setup, use with assembling connector LU9MR1 and control terminal block LU9M1.

• Designed for side mounting in TeSys U reversing starter controllers.
• Compatible with various advanced power bases and connectors.
• Green Premium compliant with RoHS/REACh standards.

Product Highlights

The LU6MB0BL reversing module is built with versatility in mind, offering integration capabilities with multiple control units and power bases.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: LU6MB0BL

Technical Specifications

• Type: Reverser Block
• Depth: 113 mm
• Width: 45 mm
• Height: 115 mm
• Weight: 0.94 lb
• Current: 120 mA
• Voltage: 690 Volt
• Warranty Length: 18 months
• Country of Origin: France
• Operating Temperature: -25 to 60 degrees C
• Storage Temperature: -40 to 85 degrees C
