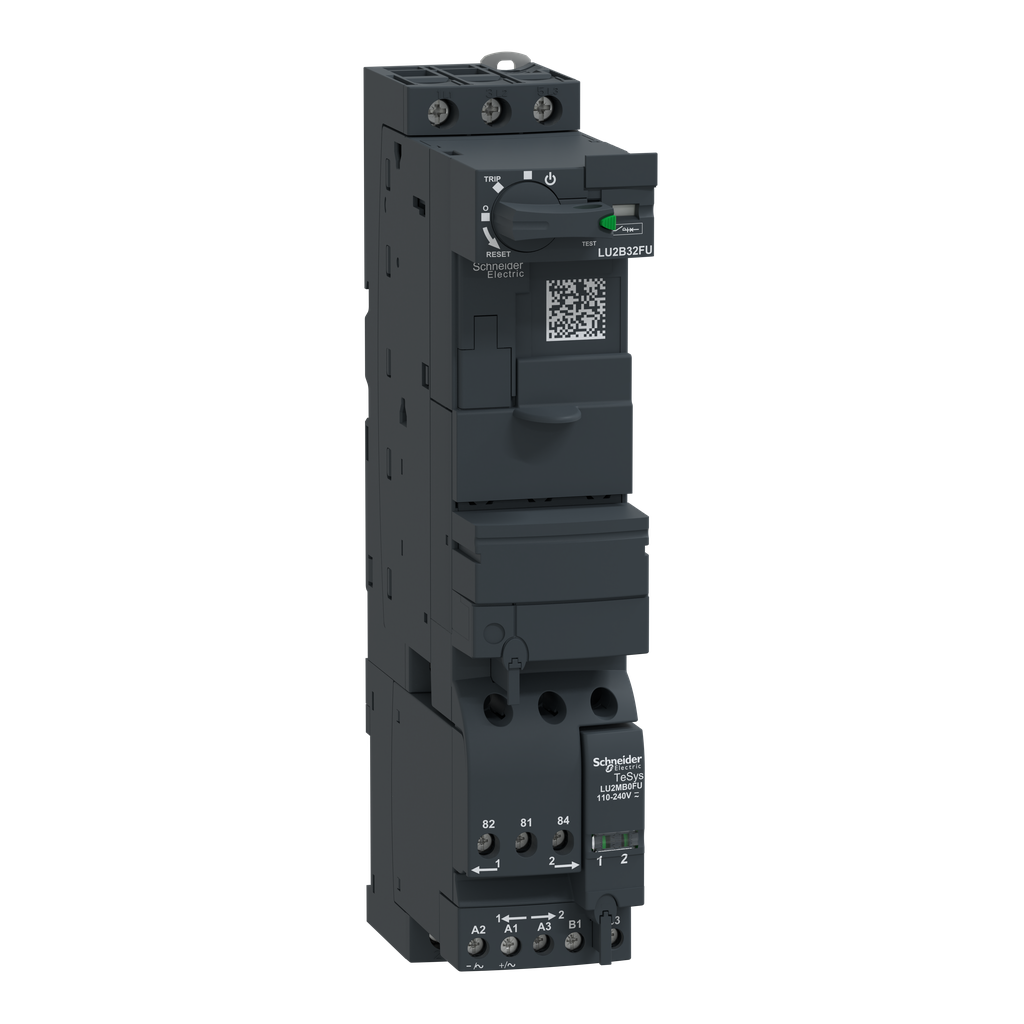

Schneider Electric LU2B32FU Square D 200 to 600 VAC 32 Amp 3-Phase Screw Terminal Full Voltage Reversing Motor Starter Power Base

Product Description

Schneider Electric LU2B32FU is a reversing motor starter power base that operates at 200 to 600 VAC and can handle up to 32 amperes. This device is designed for three-phase motor applications up to fifteen kilowatts at four hundred volts. It features three normally open (NO) poles and is modular, allowing for future expansion with additional modules. This means you can create a comprehensive reversing starter controller that can include basic or advanced protection and control functions.

• Rated voltage: up to 690 volts
• High breaking capacity of fifty kiloamps at four hundred volts
• Supports manual reset and operates within a wide temperature range

Product Highlights

It comes equipped with a reverser module supplied with either 110 to 240 volts AC or 110 to 220 volts DC and includes auxiliary signaling contacts. The base has a compact design, with a width of forty-five millimeters, suitable for DIN-rail mounting.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: United States

Technical Specifications

• Catalog Number: LU2B32FU
• Weight: 2.80 lb
• Voltage: 690 Volt
• Amperage: 32A Max
• Width: 45 mm
• Height: 224 mm
• Depth: 126 mm
• Number of Poles: 3 Pole
