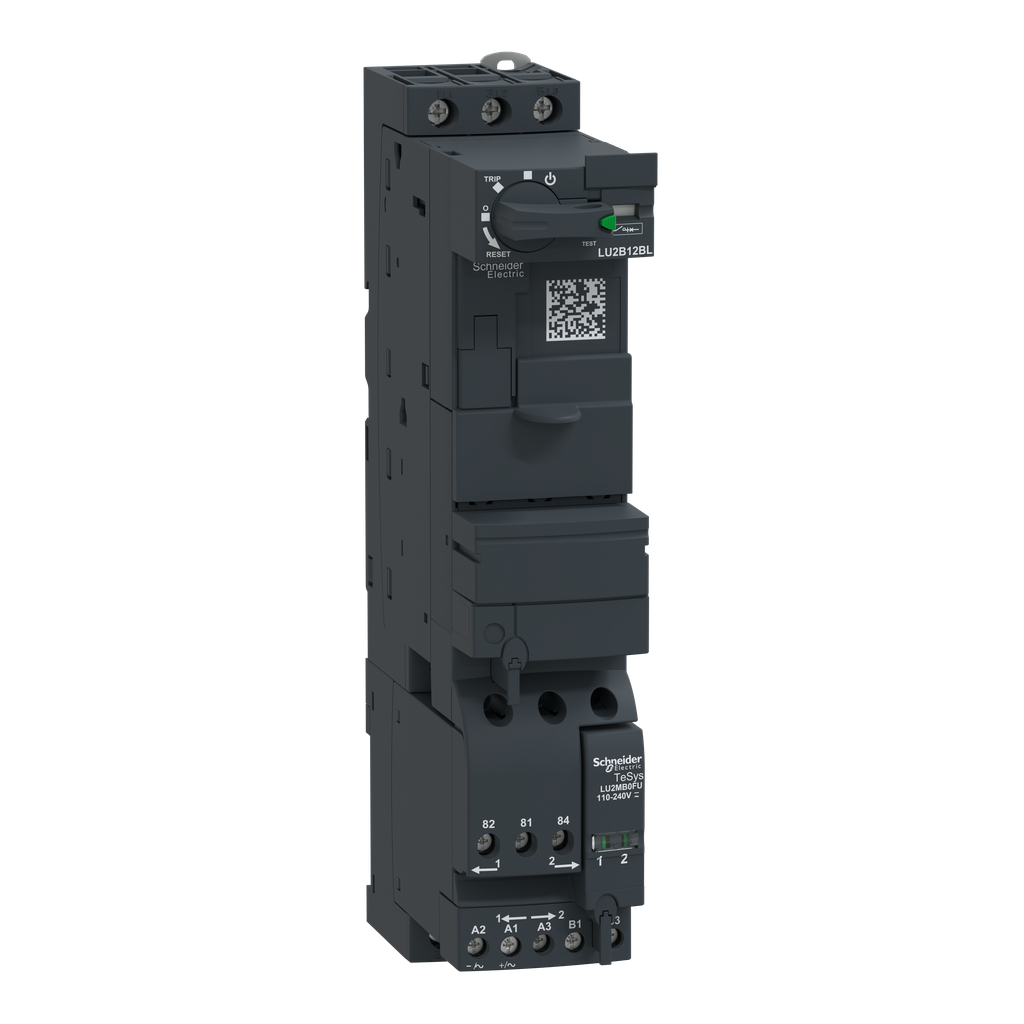

Schneider Electric LU2B12BL Square D 200 to 600 VAC 12 Amp 3-Phase Screw Terminal Full Voltage Reversing Motor Starter Power Base

Product Description

The Schneider Electric LU2B12BL is a standard reversing power base designed for three-phase motor applications. It supports voltages from two hundred to six hundred volts and can handle twelve amps. This base is part of the TeSys U series and is made to work with control unit LUC to create a fully functional reversing starter controller for motors up to five point five kilowatts at four hundred volts.

• Designed for three-phase motors
• Compact size of 45 mm in width
• High breaking capacity up to fifty kiloamperes at four hundred volts

Product Highlights

This product includes power contacts, a control coil, and a rotary handle allowing for easy operation. It accommodates additional modules for enhanced functionality, including basic or advanced protection features.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: LU2B12BL
• Voltage: 690 Volts
• Amperage: 12 Amps
• Width: 45 mm
• Height: 224 mm
• Depth: 126 mm
• Weight: 2.80 lb
• Operating Temperature: -25 to 60 degrees C
• Warranty Length: 18 months
• Country of Origin: France
