Schneider Electric LS1D30 Fuse Holder 30 Amp 690 Volt 3-Pole CC or KTK-R Replacement MPN

Product Description

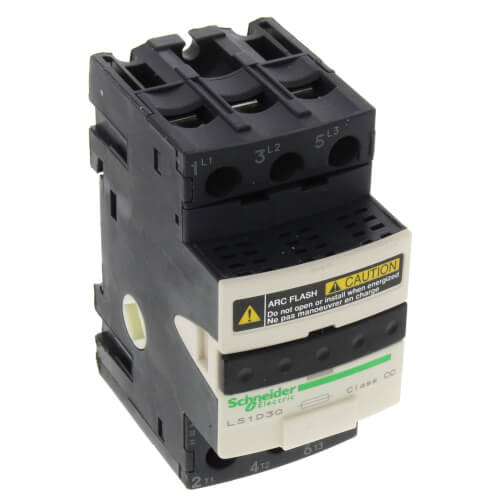

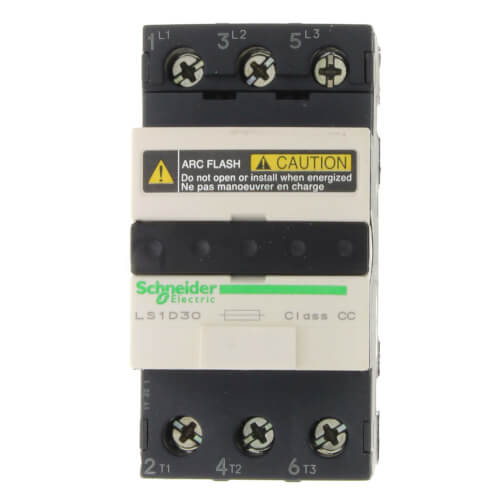

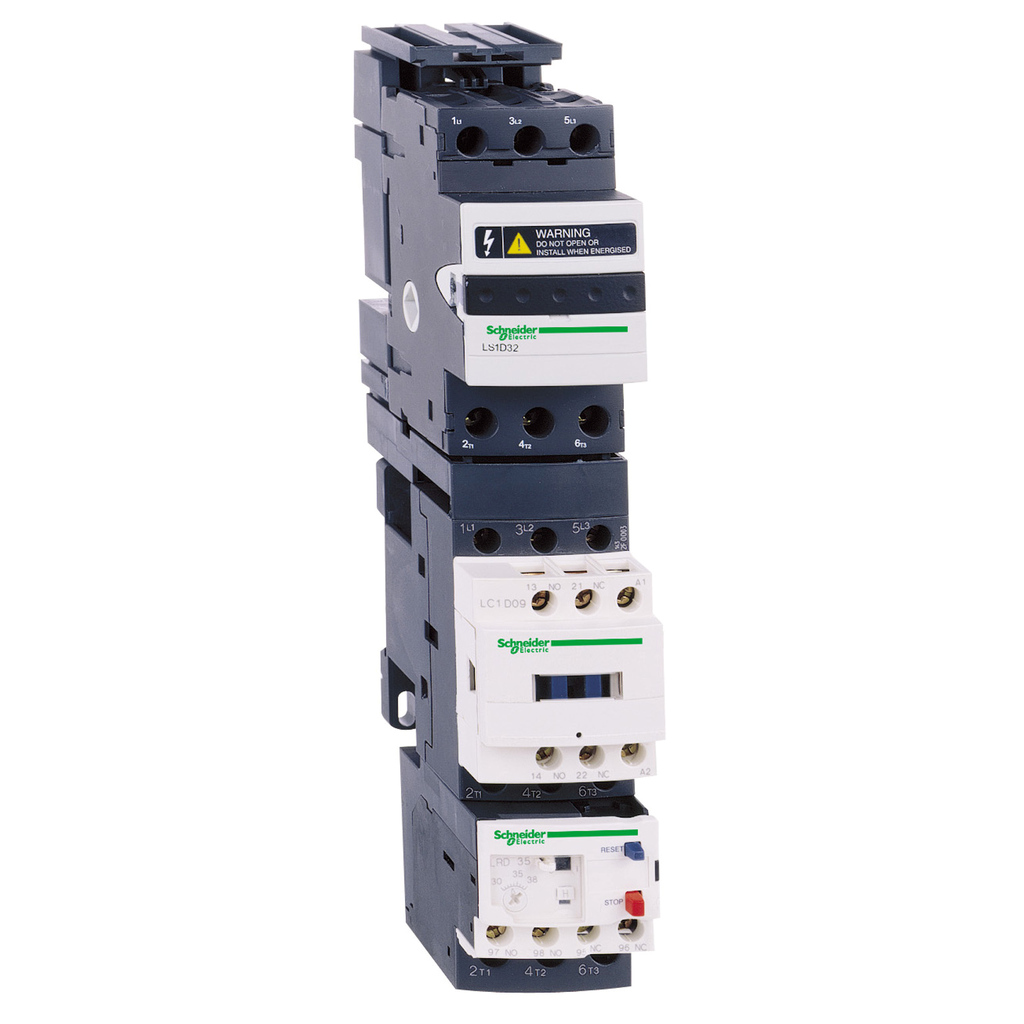

The Schneider Electric LS1D30 Fuse Holder is compatible with TeSys D contactors and meets application needs for fusible starters. It is designed to be mounted on a DIN rail. This three-pole fuse holder accommodates Class CC or KTK-R fuses with dimensions of zero point four one inches by one point five inches. The overall dimensions of the fuse holder are three point five inches in height, one point seven seven inches in width, and two point six nine inches in depth, weighing zero point six six lbs. The product holds UL Listing and CSA certification.

• DIN rail mountable.
• Supports Class CC or KTK-R fuses.
• UL Listed and CSA certified.

Product Highlights

Designed for reliable use in power distribution applications, the LS1D30 ensures safe handling of electrical circuits.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: LS1D30

Technical Specifications

• Voltage: 600 Volt
• Current Rating: 30 Amp
• Fuse Type: CC
• Height: 3.50 inches
• Width: 1.77 inches
• Depth: 2.69 inches
• Weight: 0.66 lb
• Operating Temperature: -50 to 70 Degrees Celsius
• Certifications: UL, CSA
