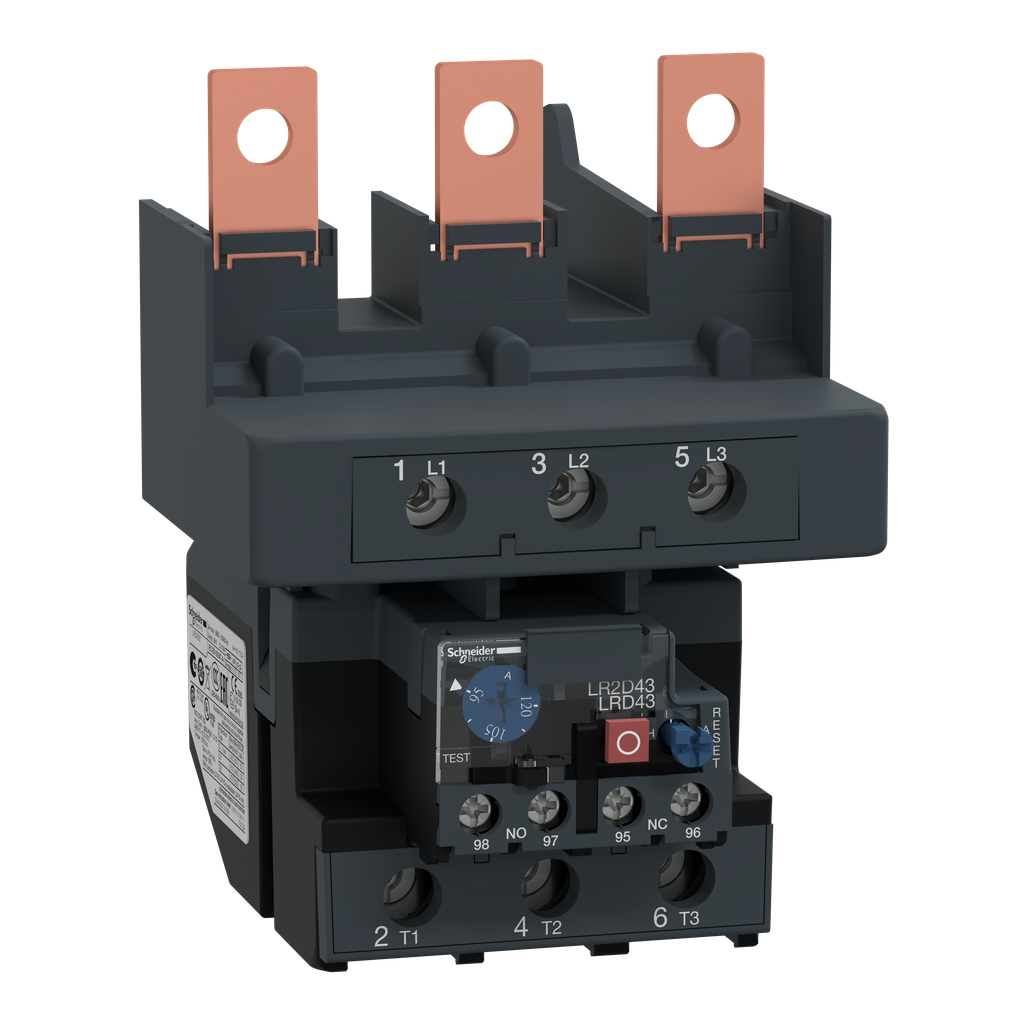

Schneider Electric LRD4367 Square D 600 Volt 120 Amp 3-Pole Bi-Metallic Screw Clamp Terminal Thermal Overload Relay

Product Description

Schneider Electric LRD4367 is a thermal overload relay designed for use with TeSys D contactors. It protects motors rated up to fifty-five kW at four hundred volts with a thermal setting range of ninety-five to one hundred twenty amps. This relay features a tripping class of ten amps and offers phase unbalance protection.

• Thermal overload protection relay suitable for direct mounting on TeSys D contactors.
• Manual test and reset buttons, along with an automatic reset option.
• Multi-standard certified, compliant to IEC, UL, CSA, EAC, and Marine standards.

Product Highlights

This device is light and compact, measuring one hundred twenty millimeters in width. It is designed for accurate protection with temperature compensation and includes trip signaling through auxiliary contacts and a trip flag indicator.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: LRD4367
• Voltage: 600 Volt
• Amperage Range: 95-120A
• Trip Type: Thermal - Ambient compensated bi-metallic/differential class 10
• Number of Poles: 3 Pole
• Weight: 1.98 lb
• Country of Origin: France
• Warranty Length: 18 months
