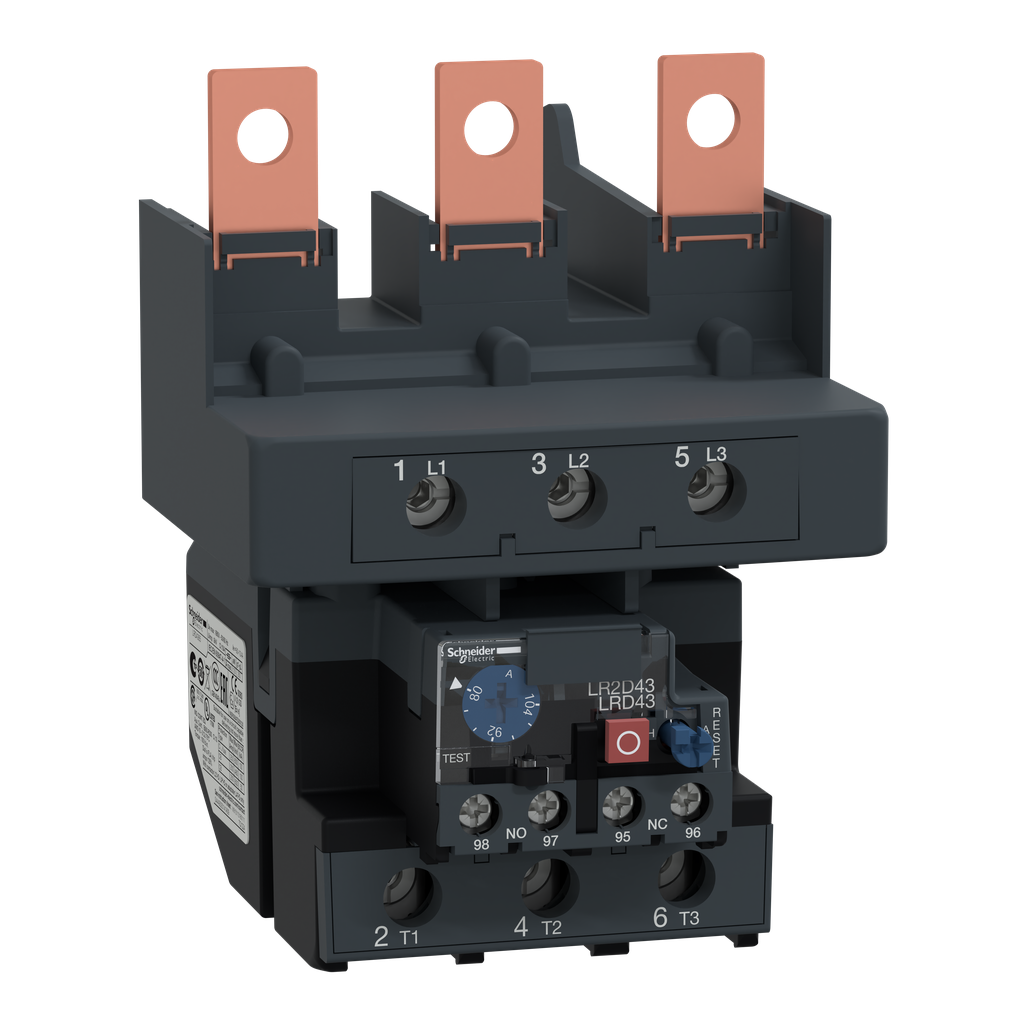

Schneider Electric LRD4365 Square D 600 Volt 104 Amp 3-Pole Bi-Metallic Screw Clamp Terminal Thermal Overload Relay

Product Description

Schneider Electric LRD4365 is a thermal overload relay suited for use with TeSys D contactors to form a motor starter. It operates with TeSys D contactors rated from one hundred fifteen amps to one hundred fifty amps. This relay detects overcurrents in motor lines. Upon detection of overcurrent, it disconnects power to protect the motor, reducing the risk of damage to windings. The adjustable trip current rating spans from eighty to one hundred four amperes and meets Class 10A standards. The LRD4365 is certified by multiple standards, including IEC, UL, and CSA, and is compliant with the Green Premium (RoHS/REACH) policy.

• Suitable for TeSys D contactors.
• Adjustable trip rating from eighty to one hundred four amperes.
• Multi-standard certifications enable widespread usage.

Product Highlights

This thermal overload relay ensures reliable motor protection and conforms to numerous international standards.

Product Information

Standard Information

• Catalog Number: LRD4365
• Brand: Schneider Electric

Technical Specifications

• Type: Differential thermal overload relay
• Voltage: 600 Volt
• Number of Poles: 3 Pole
• Trip Type: Thermal - Ambient Compensated Bi-Metallic
• Weight: 1.98 lb
• Country of Origin: France
• Operating Temperature: -20C to 60C
• Reset Type: Manual or Auto
