Schneider Electric LRD365L Square D 600 Volt 48 to 65 Amp 3-Pole Bi-Metallic Screw Clamp Terminal Thermal Overload Relay

Product Description

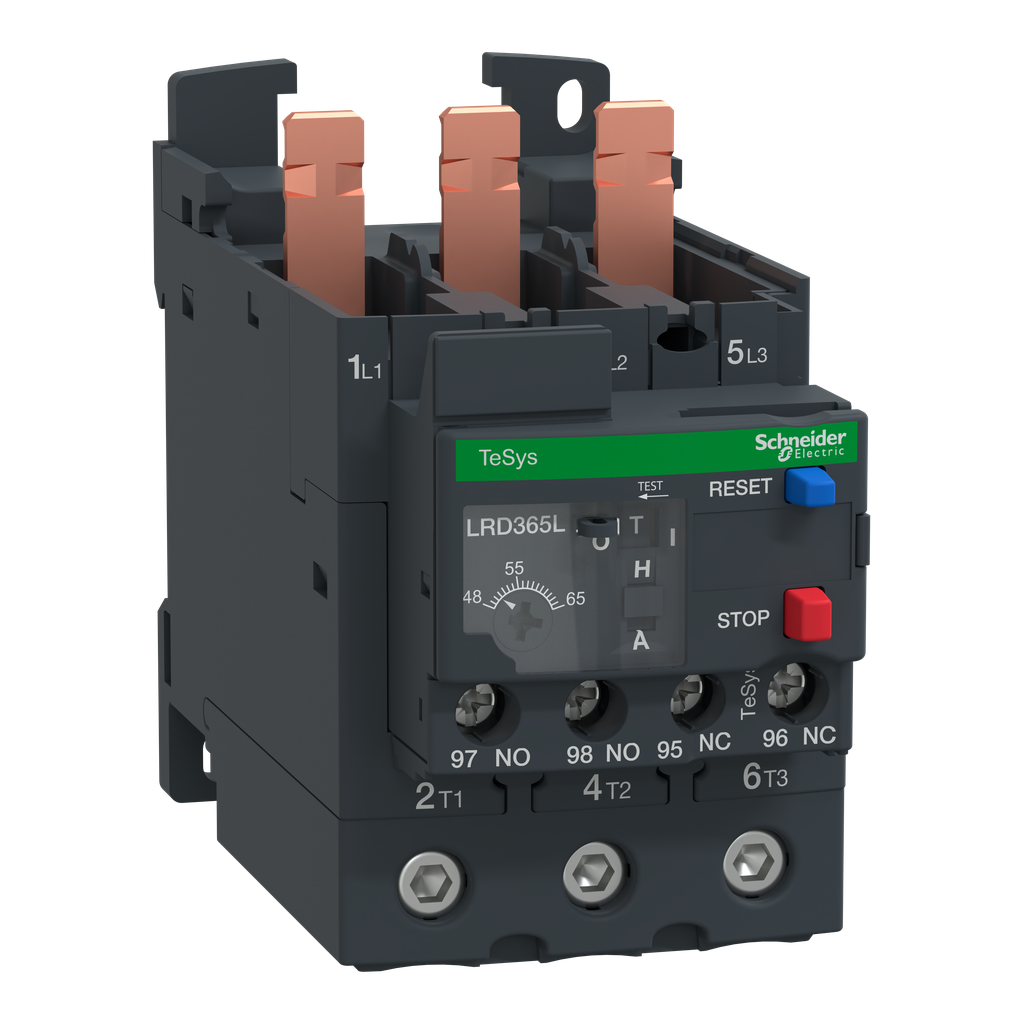

Schneider Electric LRD365L is a thermal overload relay used with TeSys D contactors. It protects motors rated at thirty kilowatts at four hundred volts with a thermal setting range of forty-eight to sixty-five amperes. The relay includes a tripping class of twenty and phase unbalance protection.

• Direct mounting on TeSys D contactors
• Includes manual test and reset buttons
• Multi-standards certified: IEC, UL, CSA, CCC, EAC

Product Highlights

The LRD365L relay is designed for reliable thermal overload protection. It features automatic reset functionality and an auxiliary trip contact, enhancing its usability in various applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: LRD365L
• Voltage: 690 Volt
• Reset Type: Manual or Automatic
• Number of Poles: 3 Pole
• Operating Temperature: -20C to 60C
• Dimensions: Width 55 mm, Height 70 mm, Depth 123 mm
• Weight: 0.83 lb
• Applications: LC1D50A; LC1D65A; Motor protection
