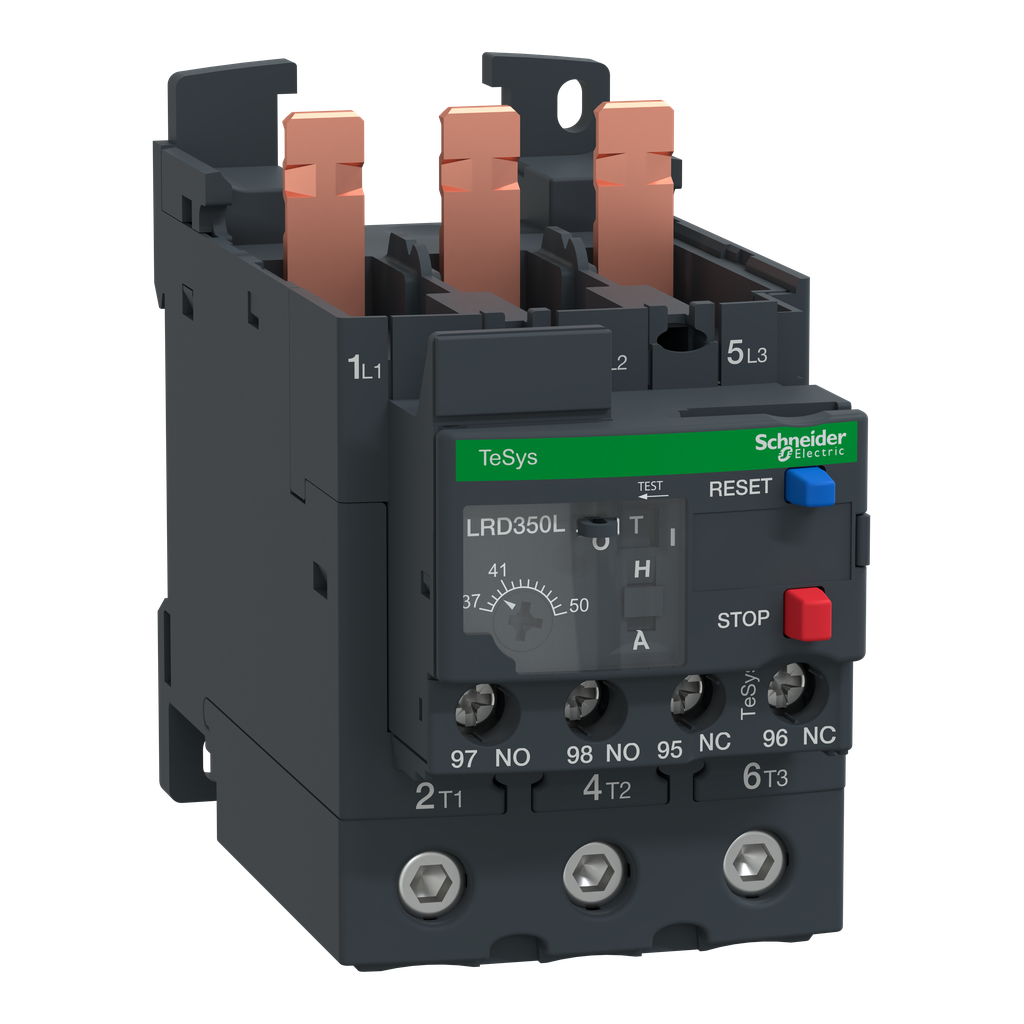

Schneider Electric LRD350L 600 Volt 37 to 50 Amp 3-Pole Bi-Metallic Screw Clamp Terminal Thermal Overload Relay

Product Description

Schneider Electric LRD350L is a thermal overload relay designed for use with TeSys D contactors. This relay protects motors rated up to twenty-two kilowatts at four hundred volts, operating in a thermal range of thirty-seven to fifty amps. It features a tripping class of twenty and phase unbalance protection. The LRD350L is direct mountable on TeSys D contactors, ensuring compact integration within motor control systems.

• Thermal overload protection for motors
• Direct mounting on TeSys D contactors
• Multi-standard certified for global use

Product Highlights

This relay provides manual test and reset buttons, as well as options for automatic reset. It comes with a trip auxiliary contact and a flag indicator for easy monitoring. This product meets various international standards, ensuring reliable operation across different environments and applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: LRD350L
• Voltage: 690 Volt
• Size: 4.84 inches
• Width: 55 mm
• Height: 70 mm
• Depth: 123 mm
• Weight: 0.83 lb
• Number of Poles: 3 Pole
• Trip Type: Thermal - Ambient Compensated Bi-Metallic
