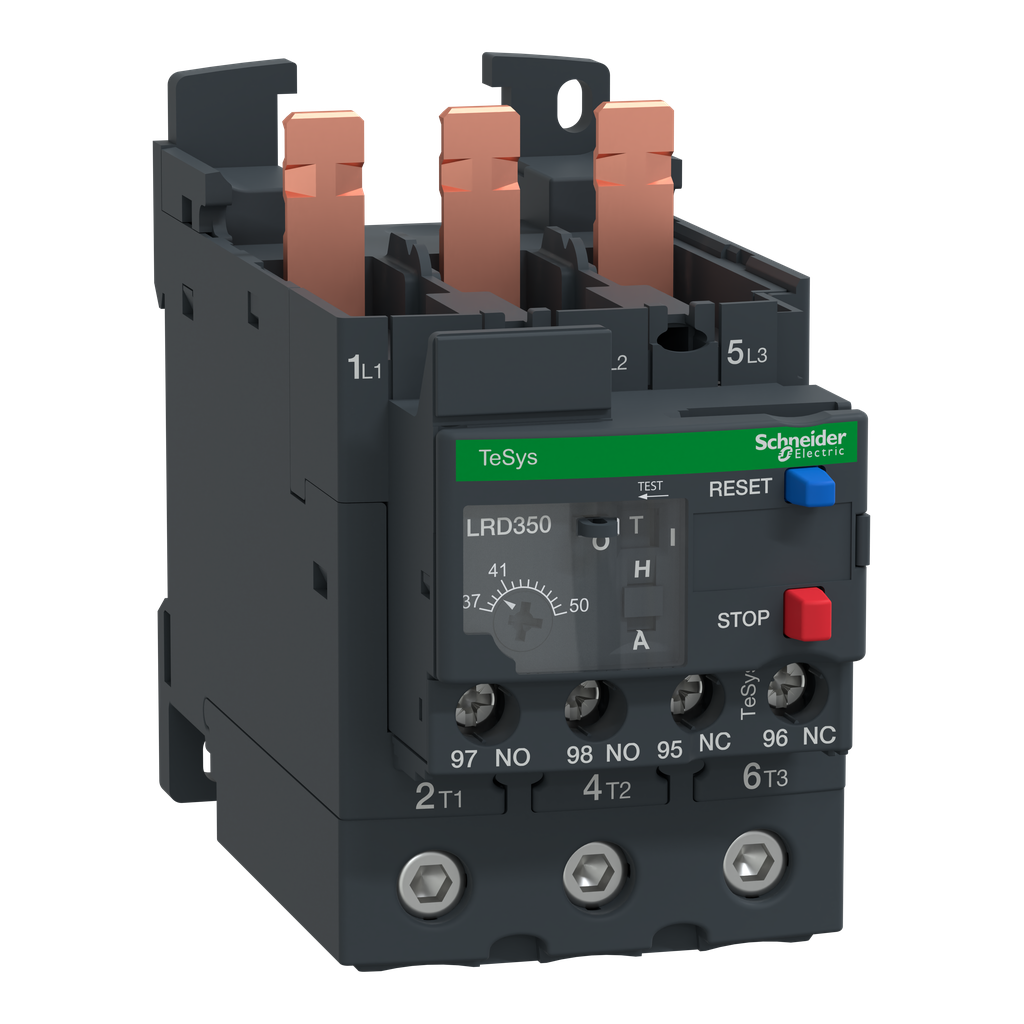

Schneider Electric LRD350 600 Volt 37 to 50 Amp 3-Pole Bi-Metallic Screw Clamp Terminal Thermal Overload Relay

Product Description

Schneider Electric LRD350 is a thermal overload relay designed for use with TeSys D contactors. It protects motors by detecting overcurrents and interrupting the circuit to prevent motor damage. The LRD350 model accommodates motor currents ranging from thirty-seven to fifty amperes, calibrated per Class 10A. This relay is compatible with 40 amp to 65 amp TeSys D contactors and utilizes EVERLINK terminals.

• Adjustable trip current rating of 37 to 50 amperes
• Thermal overload protection with manual or automatic reset options
• Compliant with multiple safety standards including CSA and UL

Product Highlights

Reliable fault protection for motors, essential for industrial applications.

Product Information

Standard Information

• Catalog Number: LRD350
• Brand: Schneider Electric

Technical Specifications

• Voltage: 690 Volt
• Weight: 0.83 lb
• Dimensions: 4.84 inches x 2.65 inches x 4.2 inches
• Number of Poles: 3 Pole
• Trip Type: Thermal - Ambient Compensated Bi-Metallic
• Operating Temperature: -20 to 60 degrees C without derating
• Country of Origin: France
• Certifications: CSA, UL, EN/IEC standards
