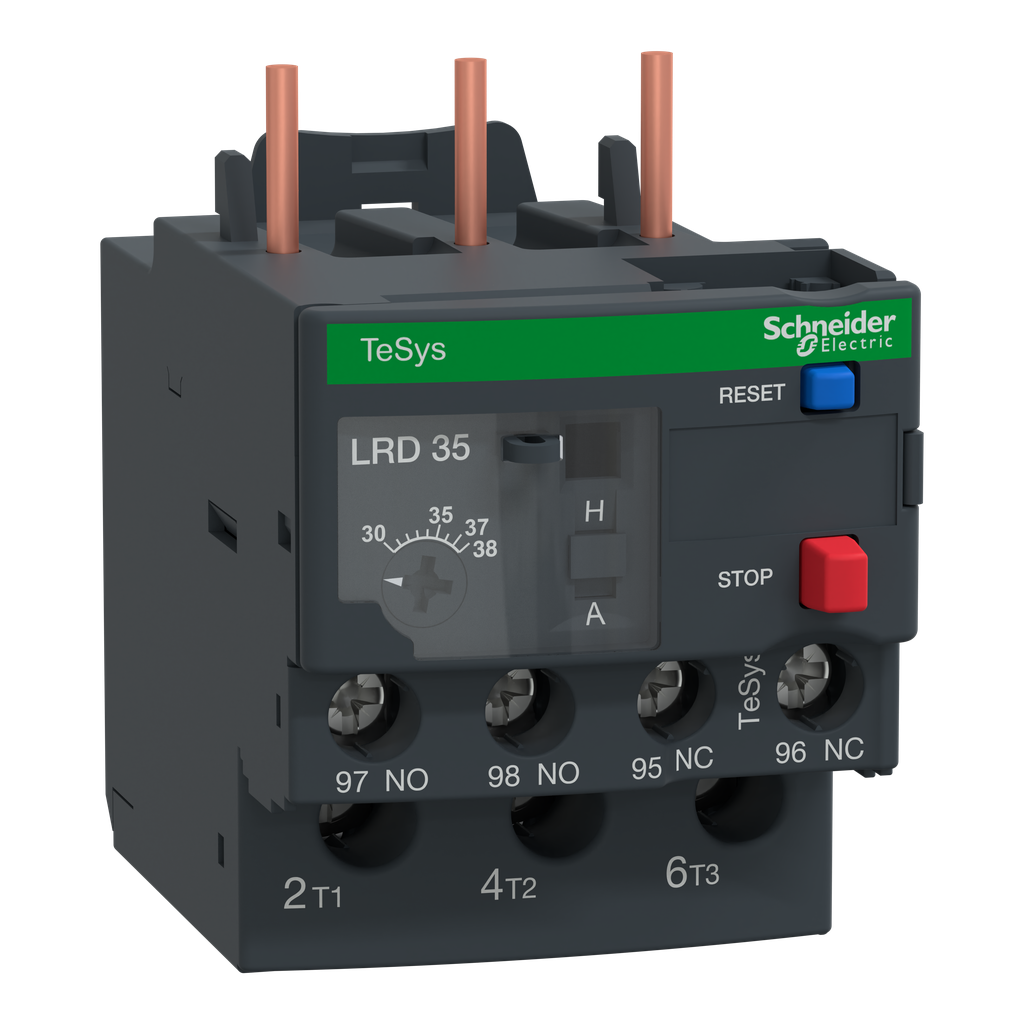

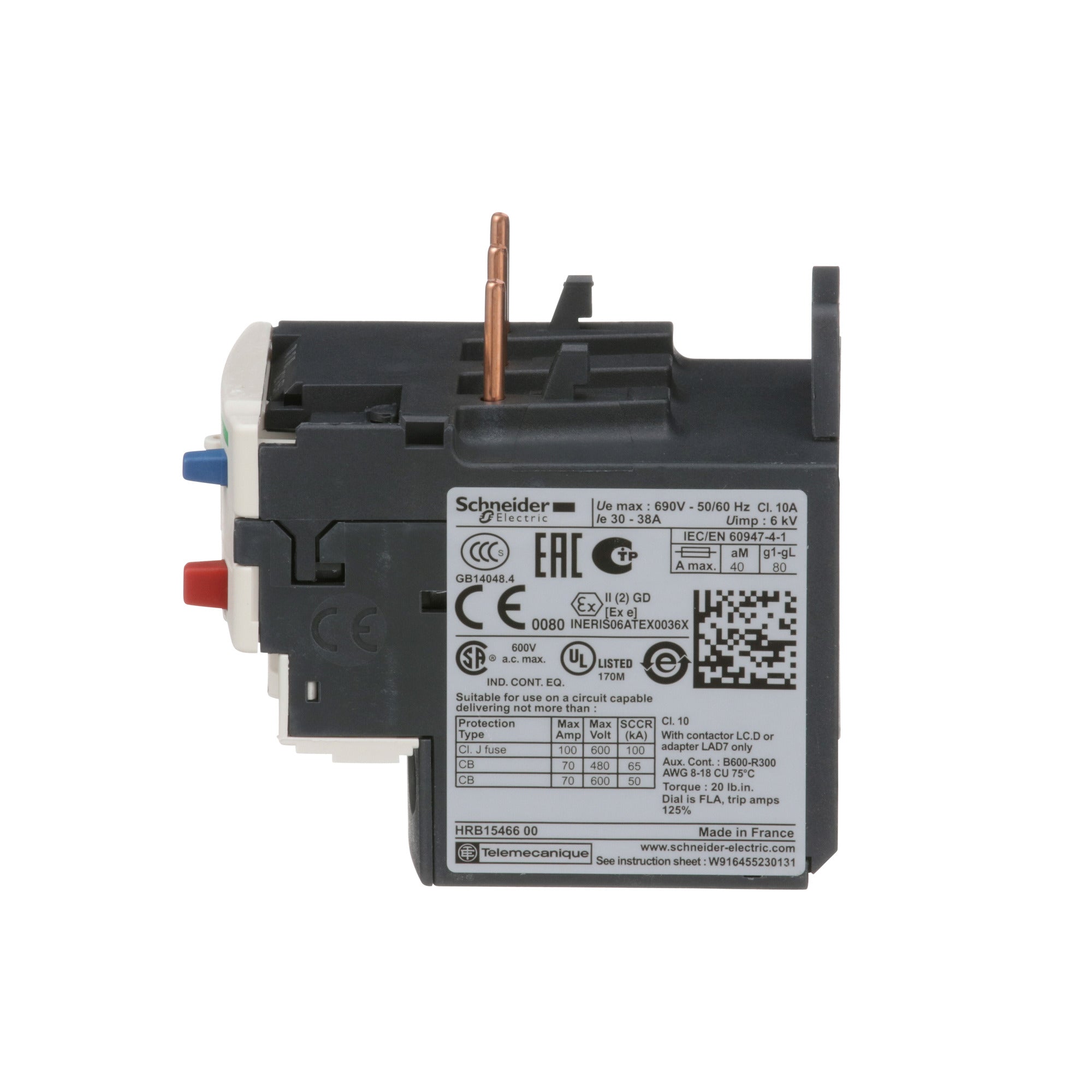

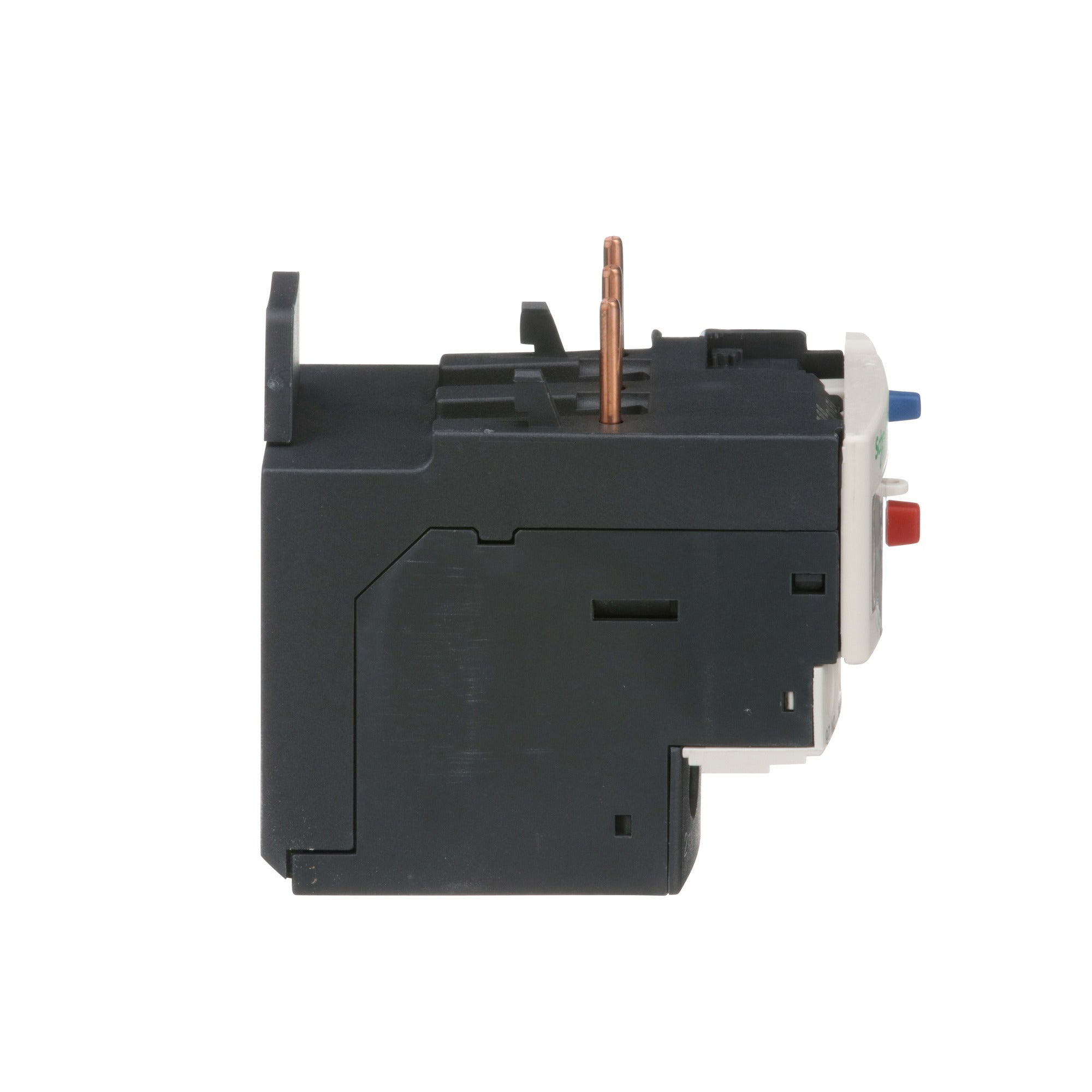

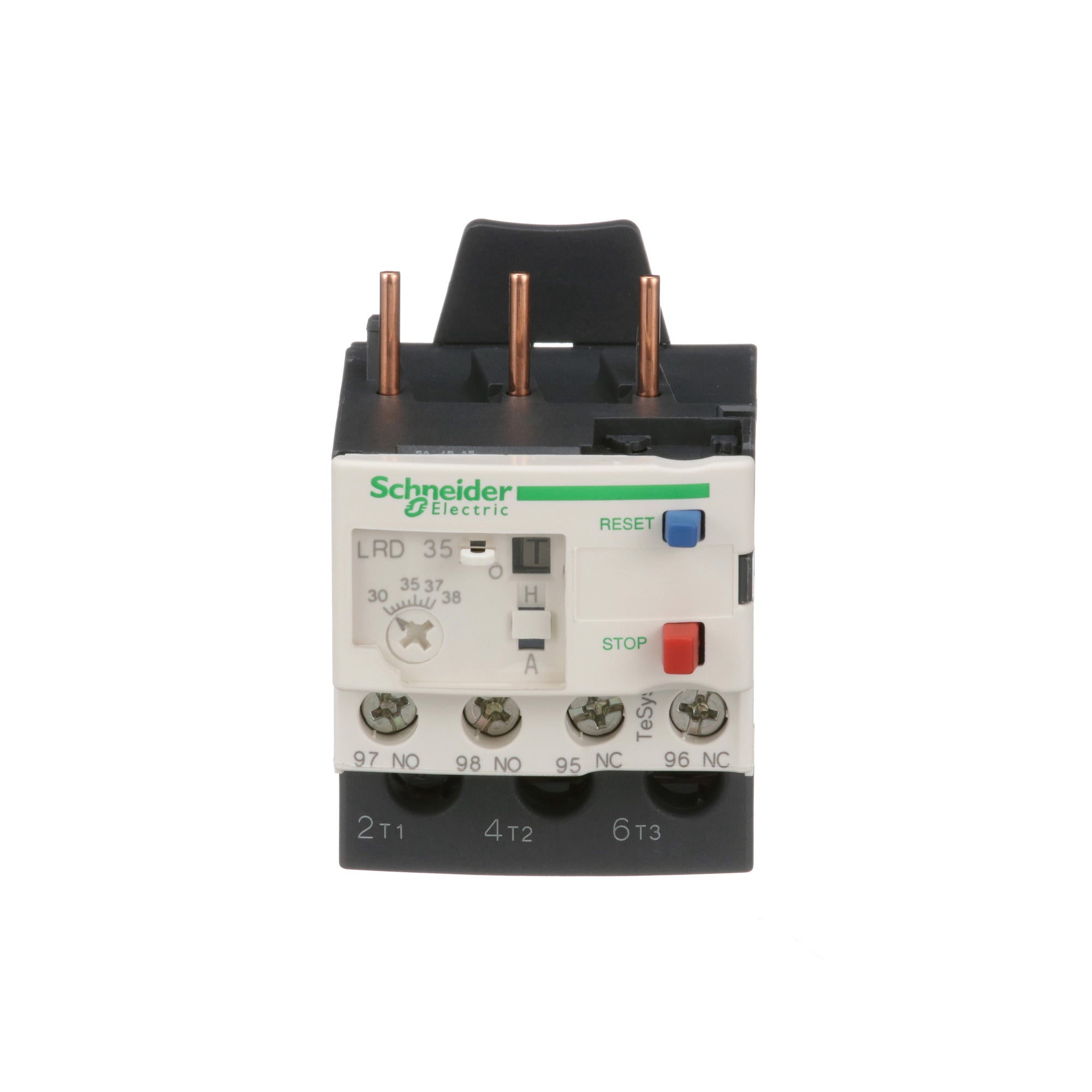

Schneider Electric LRD35 Square D 600 Volt 38 Amp 3-Pole Bi-Metallic Screw Clamp Terminal Thermal Overload Relay

Product Description

Schneider Electric LRD35 is a thermal overload relay specifically designed for use with TeSys D contactors in motor starters. It supports contactors rated from thirty-two to thirty-eight amperes. This overload relay effectively detects overcurrents in motor supply lines. Upon detection of an overcurrent, it will engage with the contactor to disconnect power, safeguarding the motor from potential damage. The LRD35 features an adjustable trip current range from thirty to thirty-eight amperes, calibrated to Class 10A standards. It is compliant with multiple international standards including IEC, UL, CSA, and ATEX.

• Compatible with TeSys D contactors rated 32A to 38A
• Adjustable trip current from 30A to 38A
• Multi-standard certified (IEC, UL, CSA)

Product Highlights

This overload relay plays a crucial role in protecting motors from damage caused by excessive current.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: LRD35
• Voltage: 690 Volt
• Trip Type: Thermal - Ambient Compensated Bi-Metallic/Differential Class 10
• Number of Poles: 3 Pole
• Depth: 70 mm
• Width: 45 mm
• Height: 66 mm
• Weight: 0.27 lb
• Applications: Motor protection for LC1D32 and LC1D38
