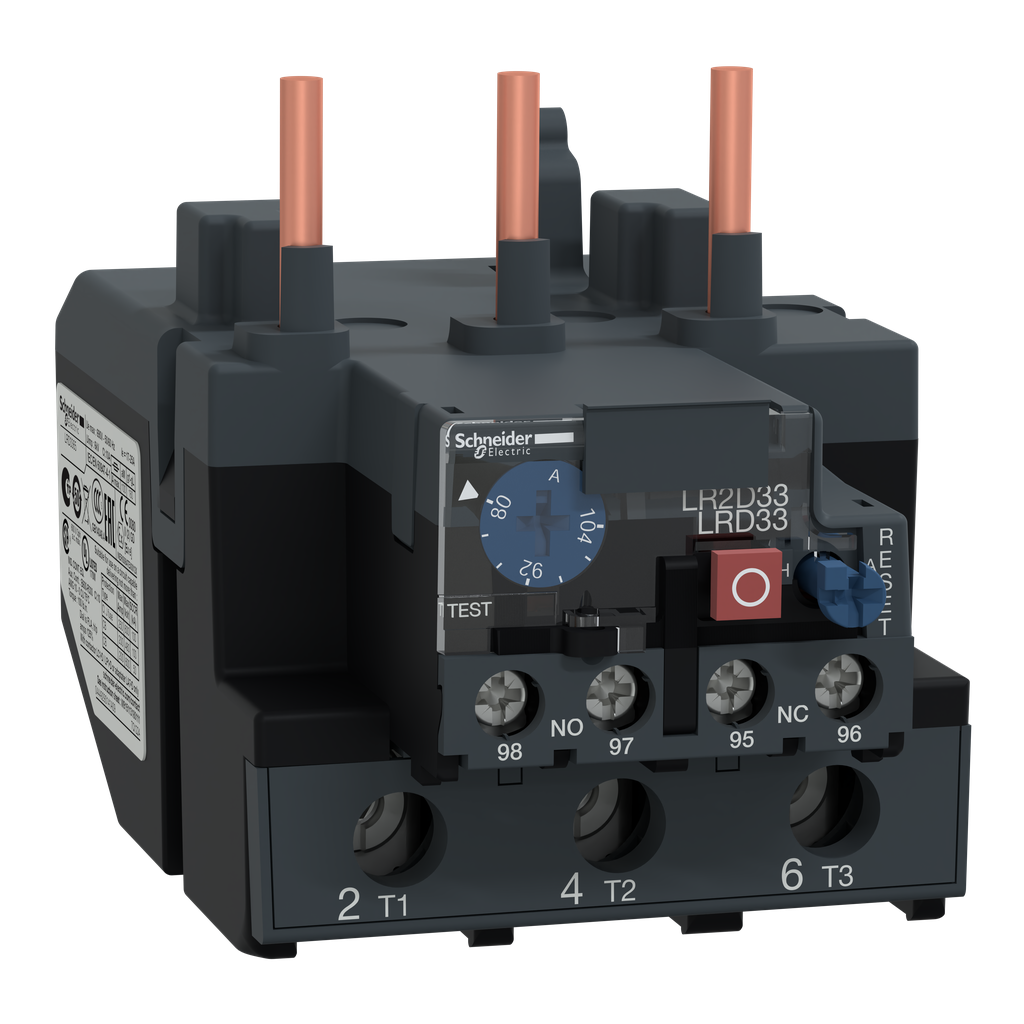

Schneider Electric LRD3365 Square D 600 Volt 104 Amp 3-Pole Bi-Metallic Screw Clamp Terminal Thermal Overload Relay

Product Description

Schneider Electric LRD3365 is a thermal overload relay designed for use with TeSys D contactors. This device offers reliable protection for motors operating at 45 kilowatts at four hundred volts. With a thermal range from eighty to one hundred four amps, it utilizes a tripping class of ten amps and includes phase unbalance protection. The LRD3365 mounts directly onto TeSys D contactors for a compact setup.

• Thermal setting range from 80 to 104 amps
• Multi-standard certified (IEC, UL, CSA)
• Manual test and reset buttons with trip auxiliary contact

Product Highlights

The LRD3365 features thermal overload protection, bimetallic design, and accommodates differential phase unbalance protection. It is lightweight, measuring only seventy millimeters in width and compensates temperature variations for accuracy.

Product Information

Standard Information

• Brand: Schneider Electric
• Model: LRD3365

Technical Specifications

• Voltage: 1000 Volt
• Weight: 1.12 lb
• Height: 81 mm
• Width: 70 mm
• Depth: 115 mm
• Number of Poles: 3 Pole
• Reset Type: Manual or Auto
• Temperature Range: -20C to 60C without derating
