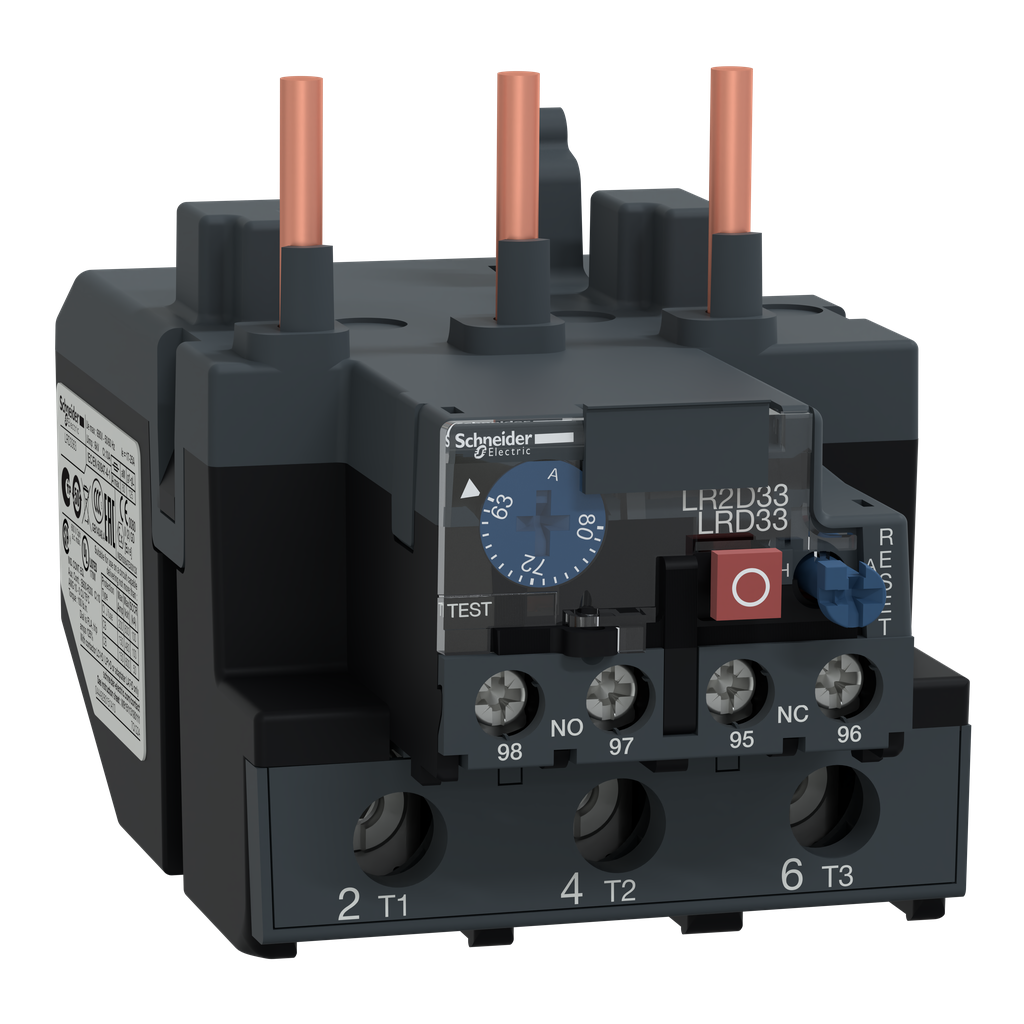

Schneider LRD3363 Thermal Overload Relay 63-80A Fits LC1D80-D95

Product Description

The Schneider LRD3363 Thermal Overload Relay offers reliable motor protection with an adjustable trip current rating of 63 to 80 amperes. This relay is designed for use with TeSys D contactors from 80 to 95 amps, providing essential motor safety by detecting and reacting to overcurrents.

• Adjustable trip current range: 63 to 80 amperes
• Compatible with LC1D80 and LC1D95 contactors
• Meets multiple industry standards

Product Highlights

The Schneider LRD3363 relay is designed for industrial motor protection, ensuring minimal damage to motor windings by detecting overcurrents. It is suitable for use in HVAC systems, manufacturing equipment, and commercial electrical systems.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: LRD3363
• Categories: Industrial & Scientific, Industrial Electrical, Controls & Indicators, Relays, Overload Relays

Technical Specifications

• Amperage Rating: 63-80A
• Voltage Rating: 1000V
• Number of Poles: 3
• Type: Bi-Metallic
• Trip Class: 10
• Reset Type: Manual or Auto
• Standards: IEC, UL, CSA, CCC, EAC, ATEX, Marine
• Connections: Screw Clamp Terminals
• Applications: Motor protection, HVAC systems, manufacturing equipment
• Height: 4.84 inches
• Depth: 4.76 inches
• Width: 2.95 inches
